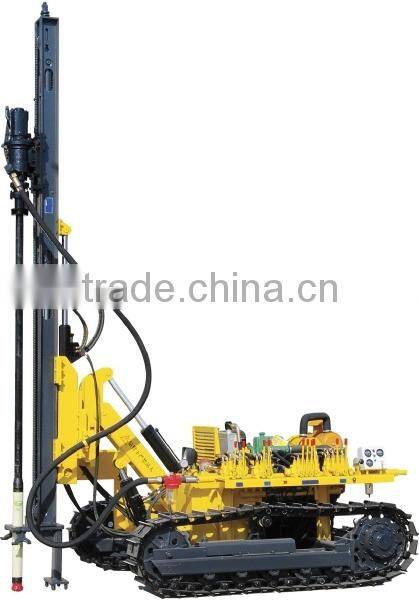

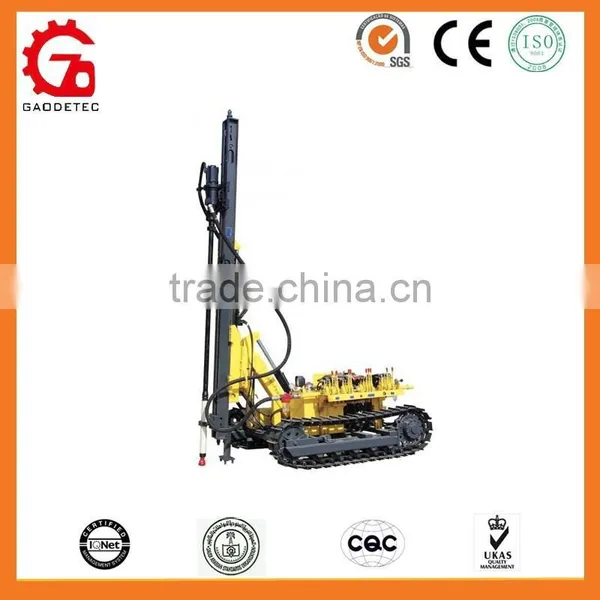

GD930A high performance drill-pneumatic&Hydraulic depth 20m mine and rock crawler drilling machine
Crawler Drilling machine used in mining, railway, highway, water and electricity, coal, construction and other projects in the construction. Gaode high performance drill-pneumatic&Hydraulic depth 20m mine and rock crawler drilling machine , open-air crawler drilling machine driven by pneumatic, electric or engine. Working pressure is divided into high,medium and low pressure of the series. Have the characteristics of great climbing ability, strong adaptability for bumpy road and operation stability.Gaode high performance drill-pneumatic&Hydraulic depth 20m mine and rock crawler drilling machine adapt to a wide range of drilling efficiency, and high drilling efficiency. You can configure various types of DTH hammer can drill with different pore sizes,different depths and orientations, a variety of angles blast holes, anchor bolt hole, filling holes and other survey holes. Gaode high performance open-air drill-pneumatic&Hydraulic depth 20m mine and rock crawler drilling machine can also configure the dry or dust catcher in conduct drilling operations.Effectively reduce dust pollution of the environment,protect the health of workers.
crawler drilling machine Technical Data:
| model | GD930A |
| drill hole depth | 25m |
| drill hole diameter | 80-125mm |
| drill rod | 76*3000mm |
| pressure | 1.0-2.4Mpa |
| air consumption | 9-18m³/min |
| rock hardness | f=6-20 |
| rotating torque | 2000N.m |
| rotating speed | 120r/min |
| lifting capacity | 17KN |
| feeding mode | cylinder-chain |
| feeding stroke | 3000mm |
| climbility | 30° |
| ground clearance | 320mm |
| travelling speed | 0-2.0km/h |
| sliding guide slewing angle | left 100°—right 45° |
| sliding guide tilt angle | -135°—+5° |
| boom tilt angle | -50°—+25° |
| boom slewing angle | left 44°—right 45° |
| guide slide length | 900mm |
| overall dimension | 5355×2215×2365mm |
| total weight | 6000kg |
| diesel engine | 58kw 2400r/min |
Picture:

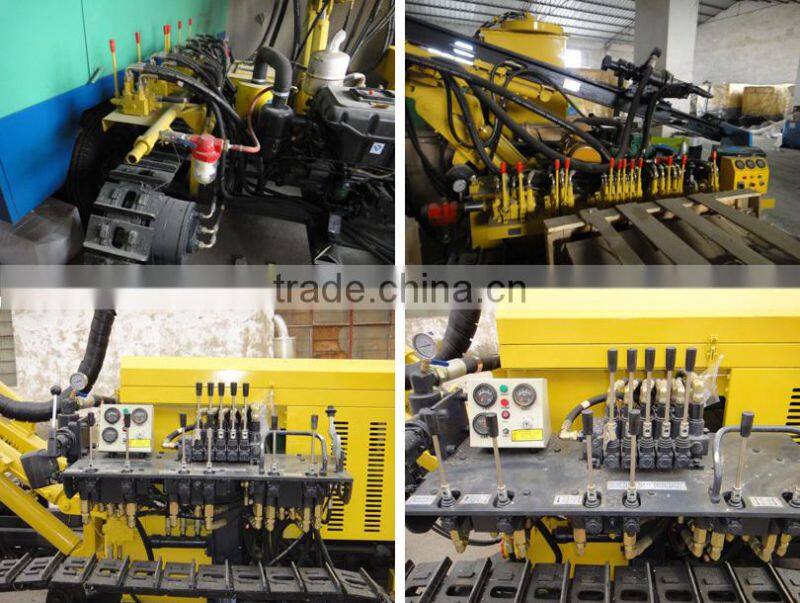

Operating lever:

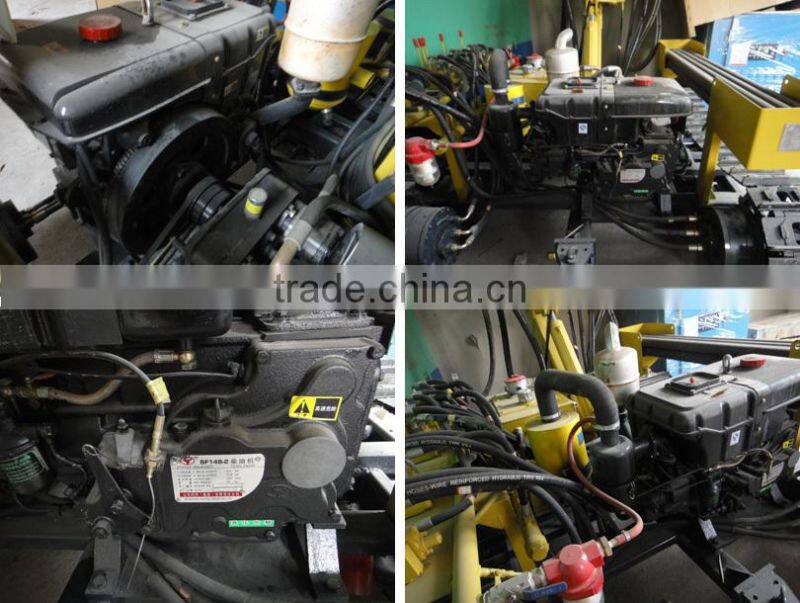

The diesel engine: GD930A high performance drill-pneumatic&Hydraulic depth 20m mine and rock crawler drilling machine
The Gaode crawler open-air drilling rig feature:
Security and stability of the running gear
Centralized control of the operating mechanism
Easy maintenance of hydraulic pump group
Safe and reliable hose structure
Powerful propulsion, rotating mechanism
Flexible drill arm operation
Advanced dust collecting device

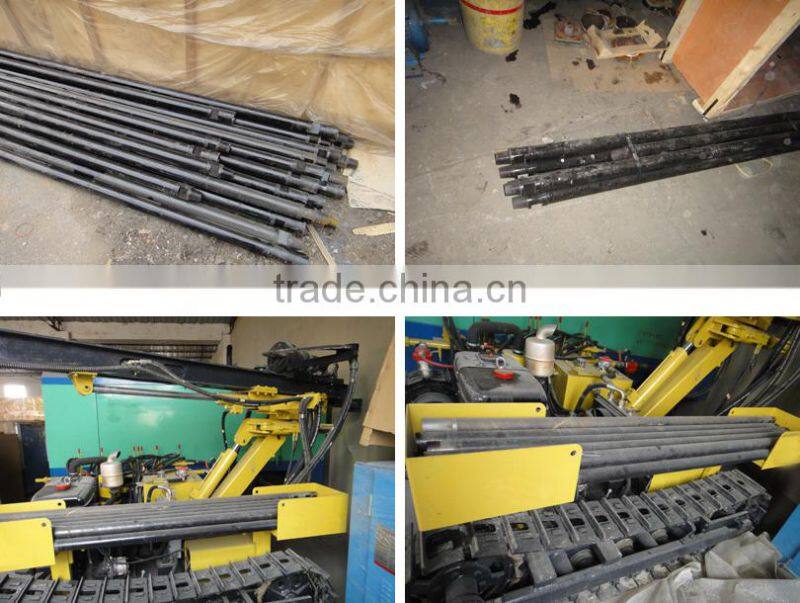

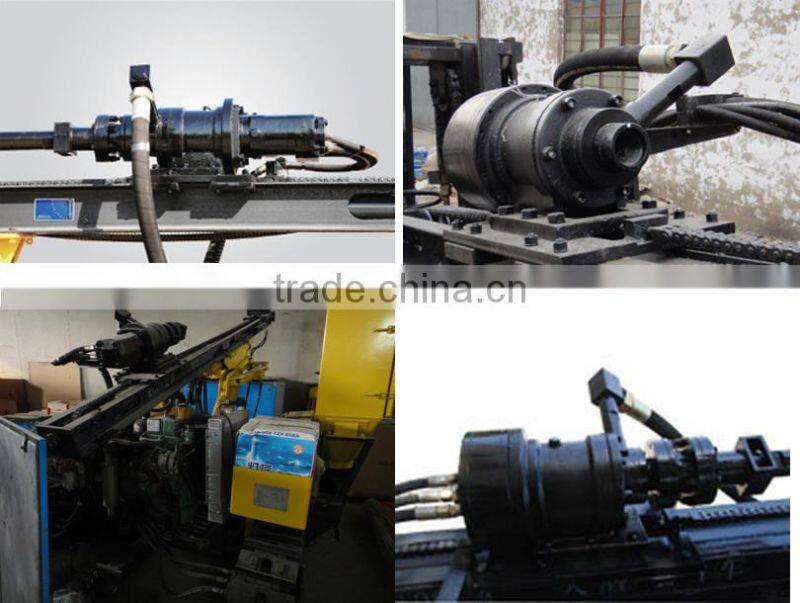

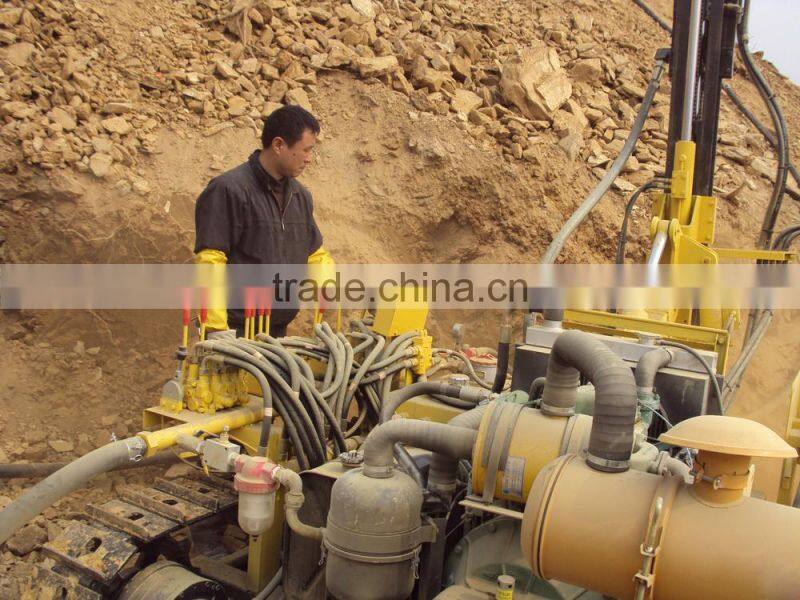

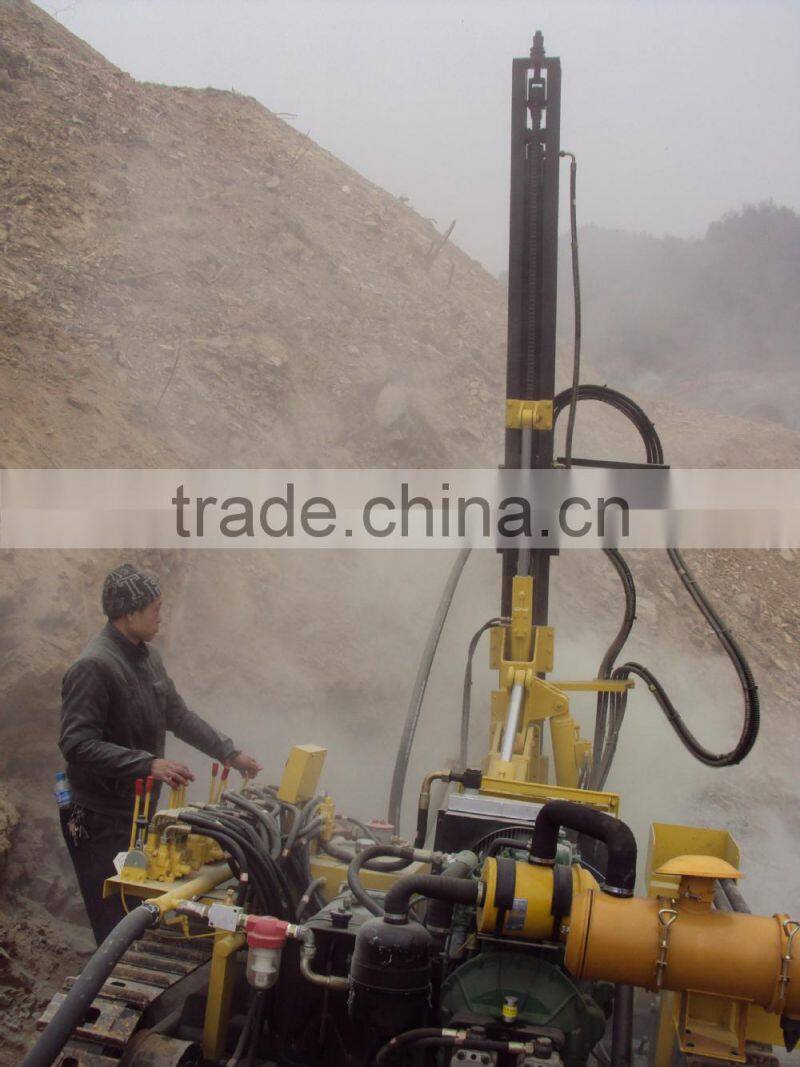

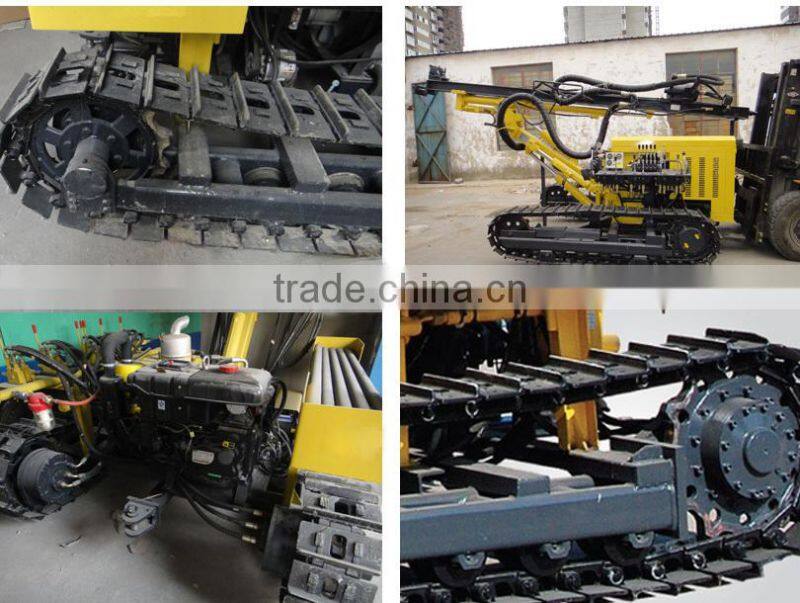

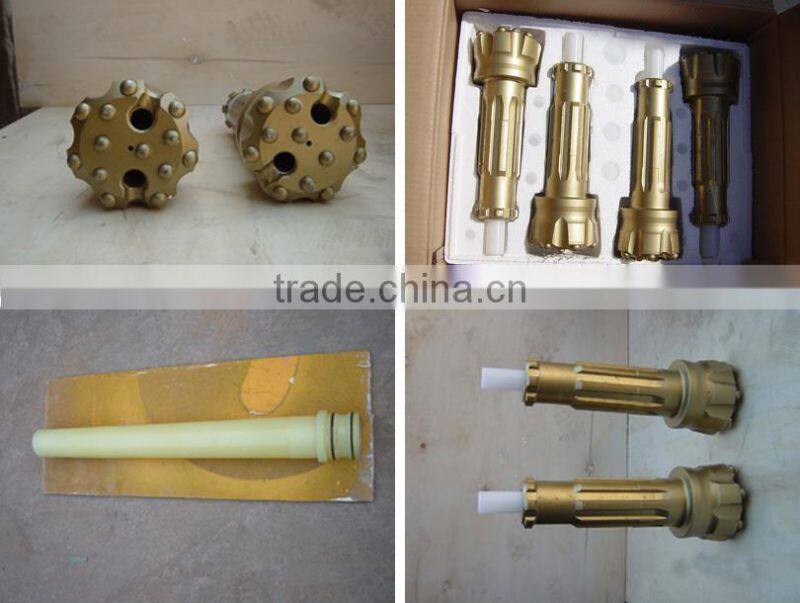

Walking motor:promote the oil pump:TThe hydraulic lever:Drill pipe:Drill bit:Working picture: The delivery:
