2016 customized GDS1500G with GX390 gasoline engine shotcrete pump
Brief instruction
The GDS1500G is a gasoline-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack.
GDS1500G Shotcrete Pumpsturdy workhorse is made better with the added improvement of a direct drive to the carousel.
The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
GDS1500G Shotcrete Pump Features
1 highly-reliable direct drive planetary gearbox
2 infinite speed variation
3 Easily operating on site work
4 Standard spare part supply
GDS1500G Shotcrete Pump Technical Data
Item |
Description |
Working Pressure |
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output |
1.5-3m3/h |
Max. Aggregate |
10mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
GH50-455 |
Power |
Honda GX390 Gasoline engine |
Overall Dimension |
1900x850x1250mm |
Hopper volume: |
200 Liter |
Oil tank |
120 Liter |
Weight |
610kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance |
15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance |
40 m (Chinese Hose)/80 m (Trelleborg Hose) |

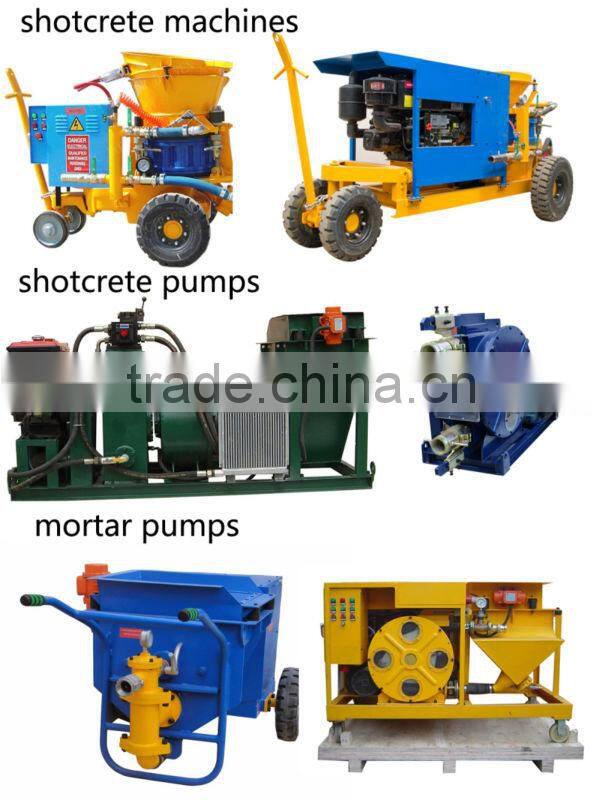

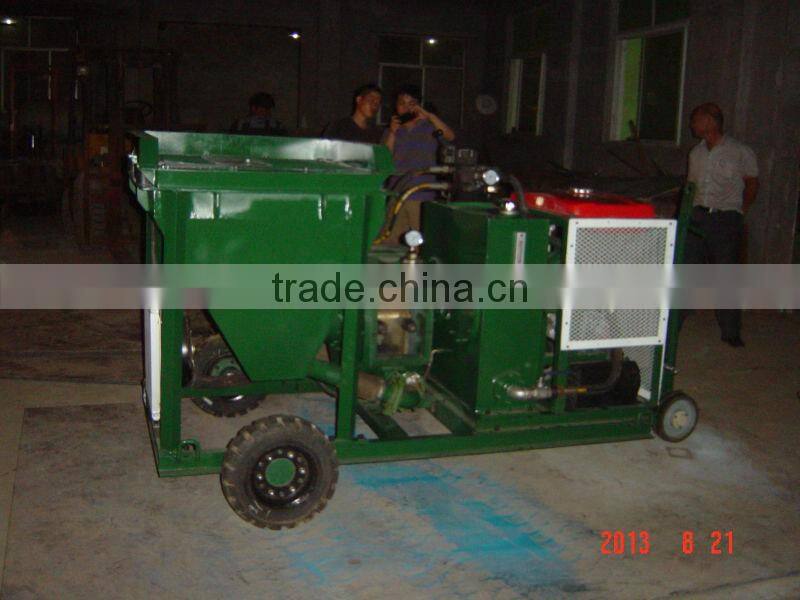

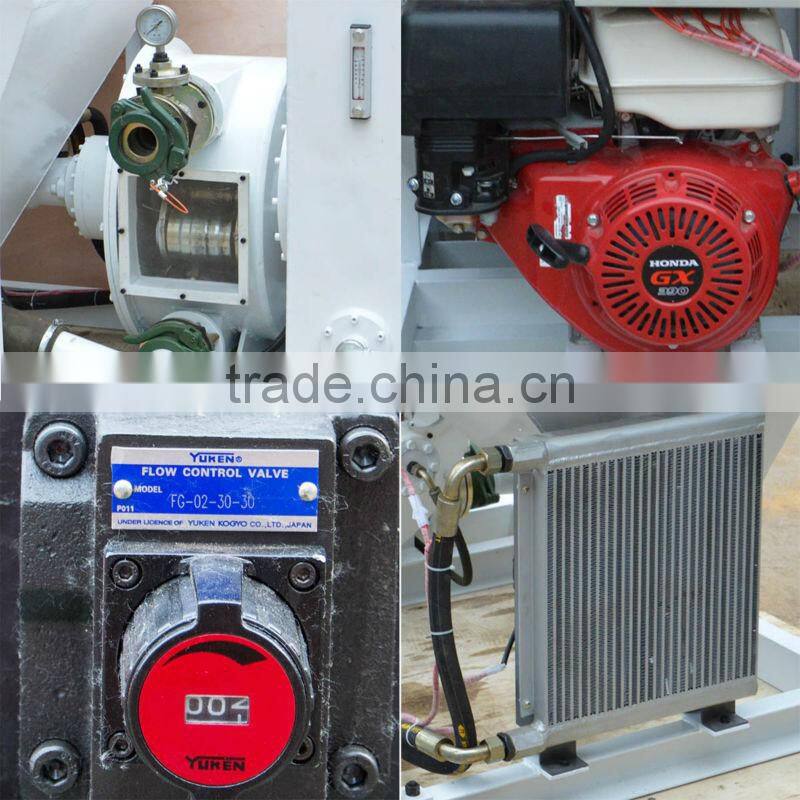

Pictures in different angles and different parts:
Please check the GDS1500E shotcete pump for reference
About the engine, we also have diesel engine and electric motor for choose
GDS1500D shotcrete pump with diesel engine
Item |
Description |
Working Pressure |
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output |
1.5-3m3/h |
Max. Aggregate |
10mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
GH50-455 |
Power |
CFZ12 Diesel Engine, 10hp |
Overall Dimension |
2150x1100x1150mm |
Hopper volume: |
130 Liter |
Weight |
660kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance |
15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance |
40 m (Chinese Hose)/80 m (Trelleborg Hose) |
GDS1500E shotcrete pump with electric motor
Gaode Equipment Co., Ltd, short name Gaodetec(GEC), our director and a few of engineers have been working in construction machine/equipment, such as mortar/slurry pumps, plaster machine, grout pumps, peristaltic pumps, shotcrete machine, mixers, concrete pump, etc. close to twenty years. In this case, I think we have a ability to provide the correct machine for you.
