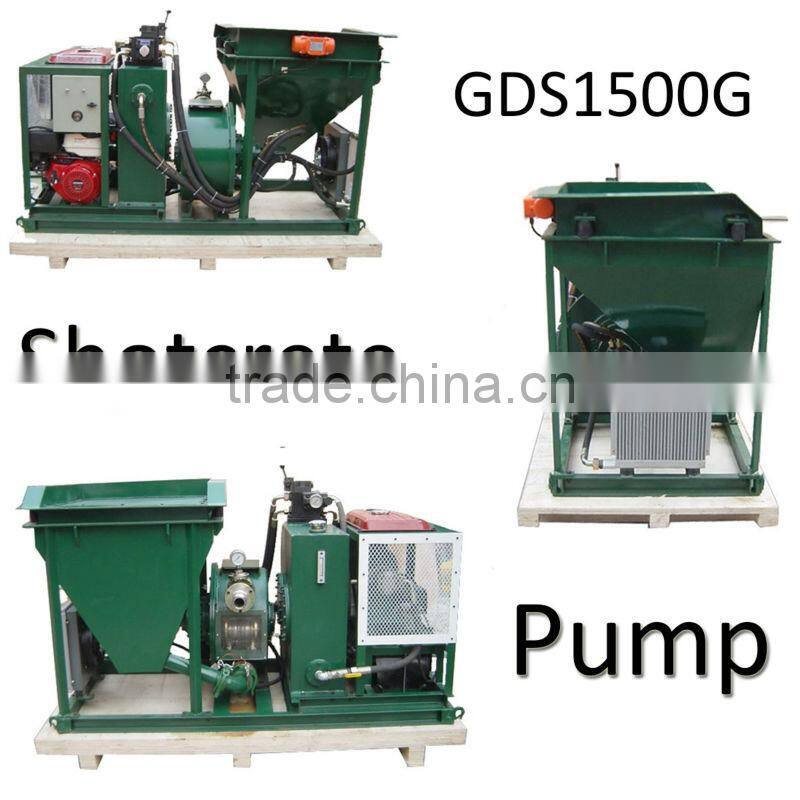

2016 Customized GDS1500G With GX390 Gasoline Engine Small Shotcrete PumpUS$ 1,950 - 7,868MOQ: 1 Set -
China Supplier Used for Construction Diesel Concrete Pumping for SaleUS$ 10,000 - 50,000MOQ: 1 Set
-
CE Certification Small Concrete Conveyer Pump for SaleUS$ 10,000 - 20,000MOQ: 1 Set
-
S Valve Small Portable Electric Concrete PumpUS$ 10,000 - 20,000MOQ: 1 Set
-
Small Model Diesel Engine Cement Concrete Pump MachineryUS$ 10,000 - 50,000MOQ: 1 Set

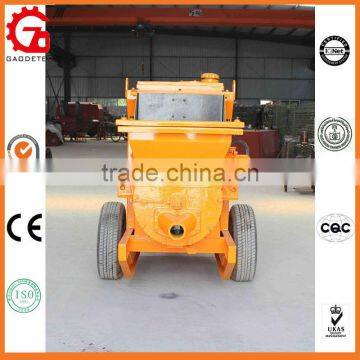

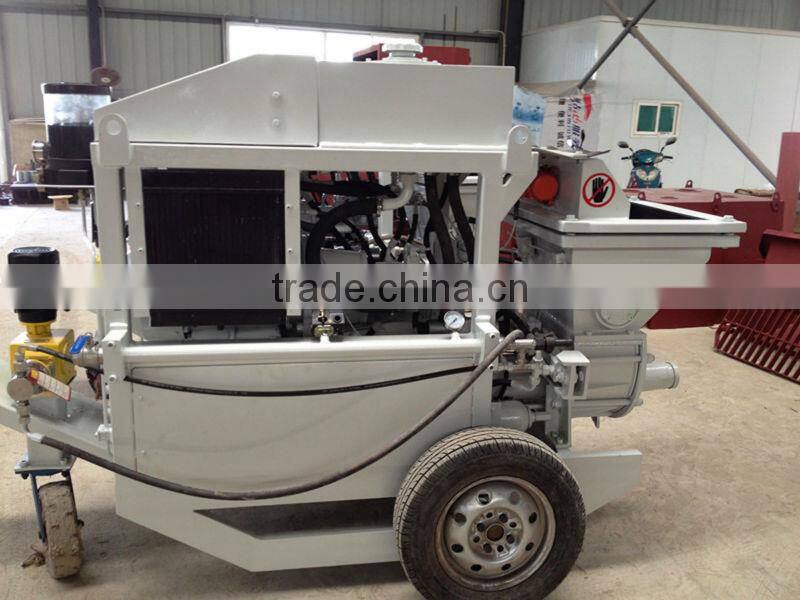

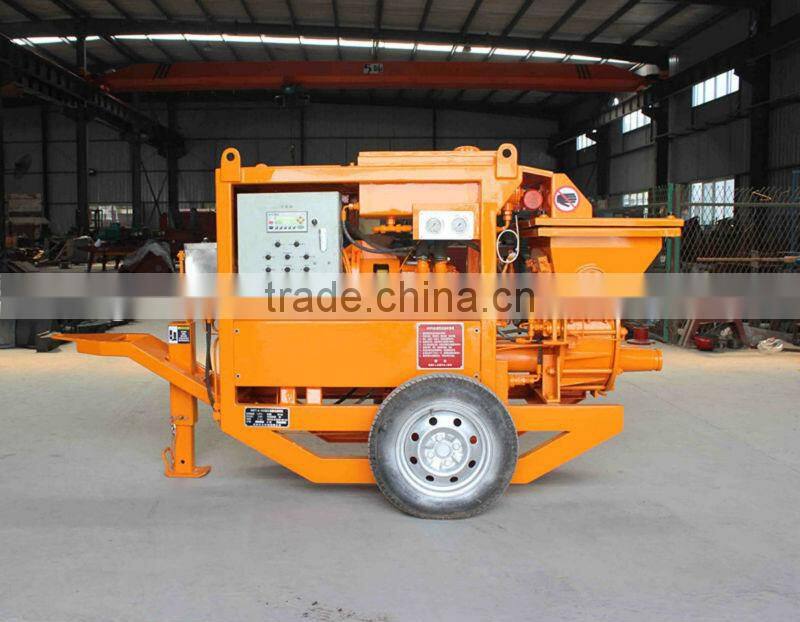

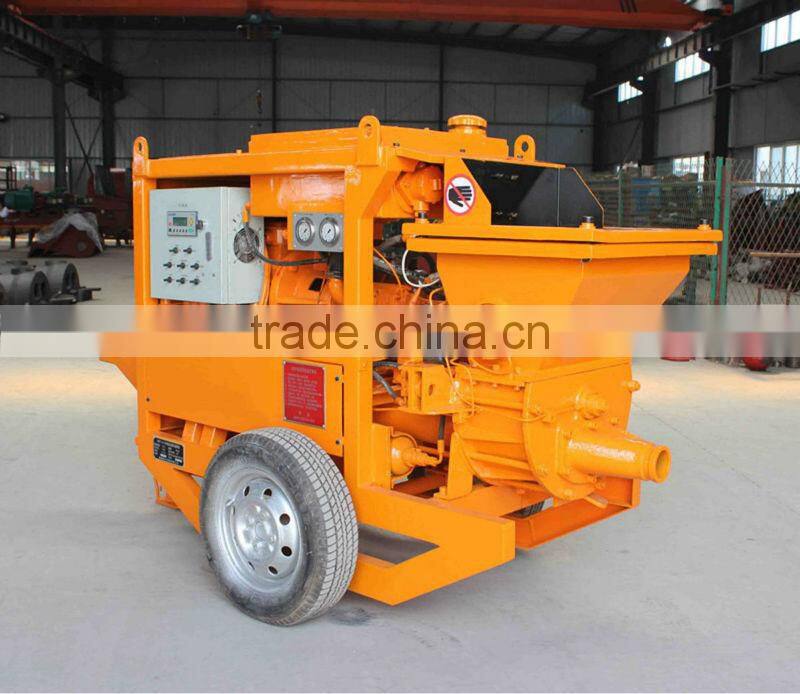

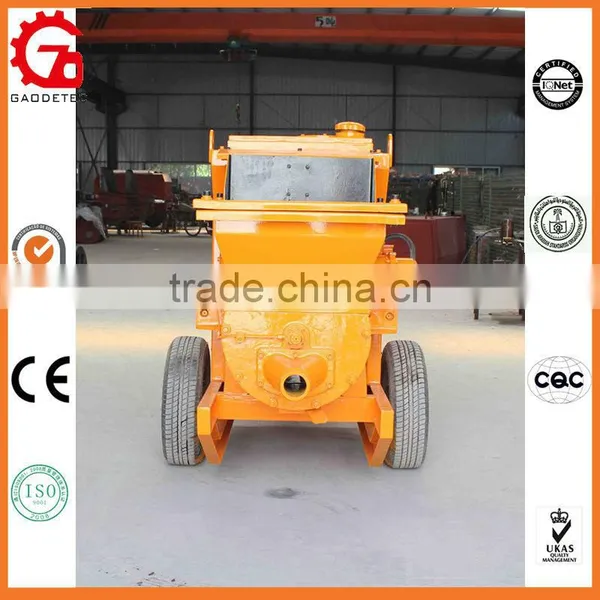

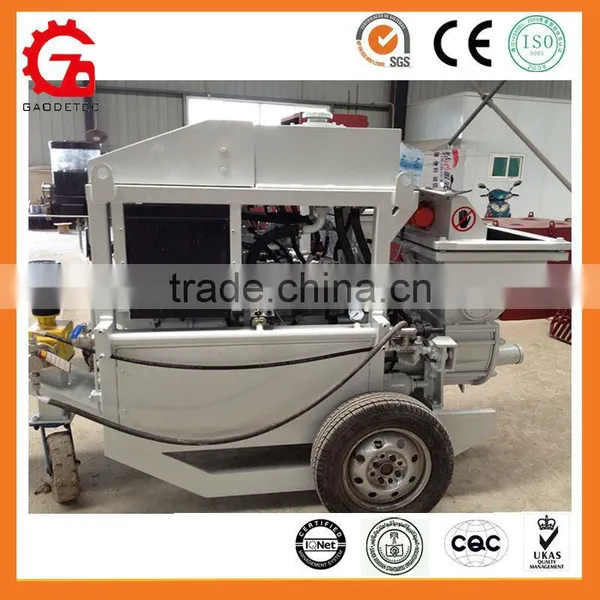

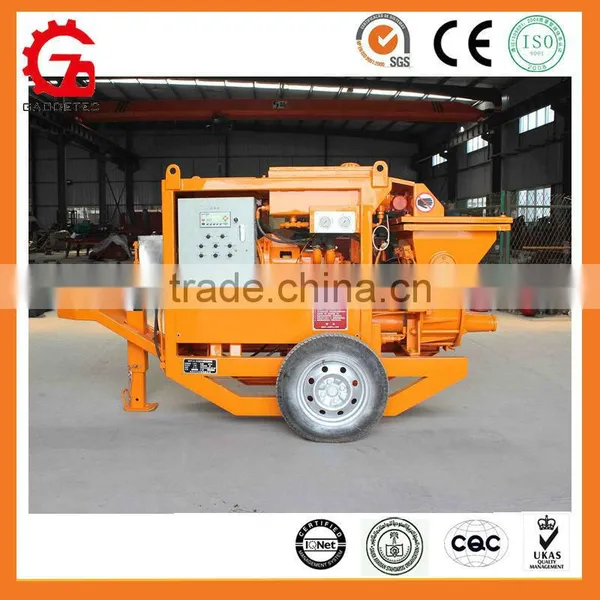

GPS-7 stepless speed change hydraulic portable small concrete pump
GPS-7 stepless speed change hydraulic portable small concrete pump description:
GPS-7 stepless speed change hydraulic portable small concrete pump mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on. It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.
GPS-7 stepless speed change hydraulic portable small concrete pump features:
1. GPS-7 portable small concrete pump has stepless speed change. The conveying output is 0-7 cubic meters / hour.
2. The machine has hydraulic power. The export is connected with high pressure hose. The nozzle is connected with a small 10 cubic meters of air compressors to achieve wet spraying. This changed the traditional use of large 20 cubic meters of air compressor.
3. Compared with rotary pneumatic wet spraying machine, this machine has a smaller size, superior performance, lower maintenance costs, easier to operation, better flexibility, and widely range of applications.
GPS-7 stepless speed change hydraulic portable small concrete pump data:
Parameter | Unit | Data | |
Productivity | m3/h | 7 | |
Max. particle size | mm | 15 | |
Fineness modulus of aggregate | ≥2.5 | ||
Dosage of liquid accelerator | % | 3.5 | |
Hose diameter | mm | 51 (2″) | |
Concrete slump | cm | 8~15 | |
Systematic wind pressure | MPa | ≥0.5 | |
Pump outlet pressure | MPa | 6 | |
Wind consumption | m3/min | ≤6 | |
Max. conveying distance | Horizontal | m | 300 |
Vertical | m | 80 | |
Dust alongside machine | mg/m3 | <6 | |
Rebound(Under standard technology) | % | Average≤15 | |
Motor power | kW | 11/15 | |
Gauge | mm | 600.762.900 | |
Overall dimension(Tyre type)(L×W×H) | mm | 2500×1010×1450 | |
Weight | kg | 960 | |
Note: It’s optional for tyre type and track type walking structure.

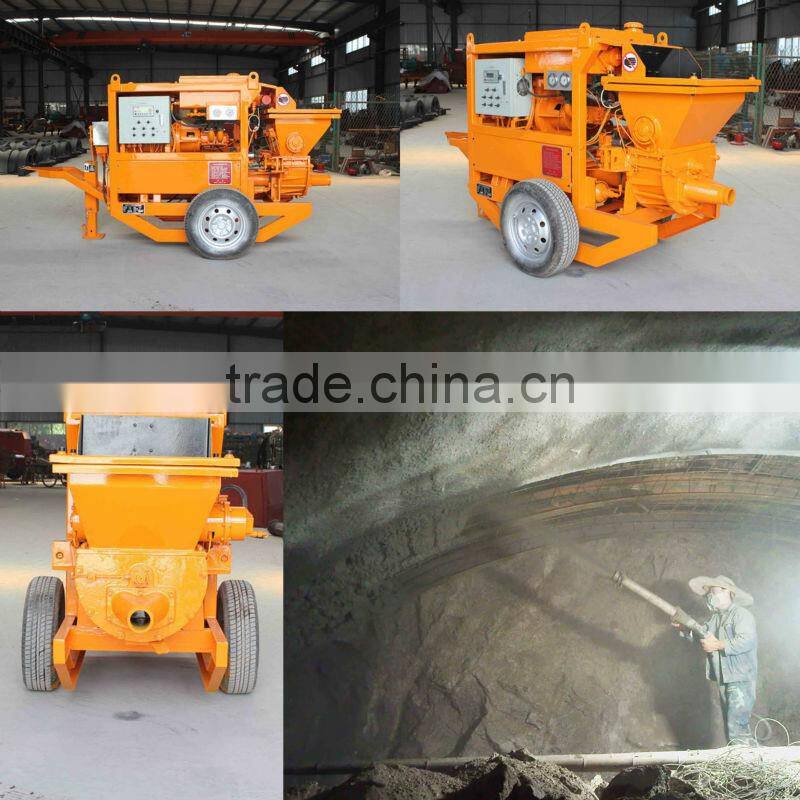

GPS-7 stepless speed change hydraulic portable small concrete pumpapplication:

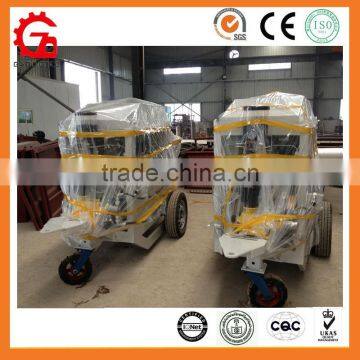

Package:
Certificate:
FAQ:
