Chinese Manufacturer Portable Mobile Electric Concrete Mixer and Pump for Sale

Chinese Manufacturer Portable Mobile Electric Concrete Mixer and Pump for Sale photo-1
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Power Type Electric
Place of Origin Henan, China
Brand Name GEC
Model Number JBT40-P1
Power(W) 37kw
Weight 5300kg
Dimension(L*W*H) 4960*2100*2500MM
Certification ISO CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Chinese manufacturer portable mobile electric concrete mixer and pump for sale

Product Description



1. Description:

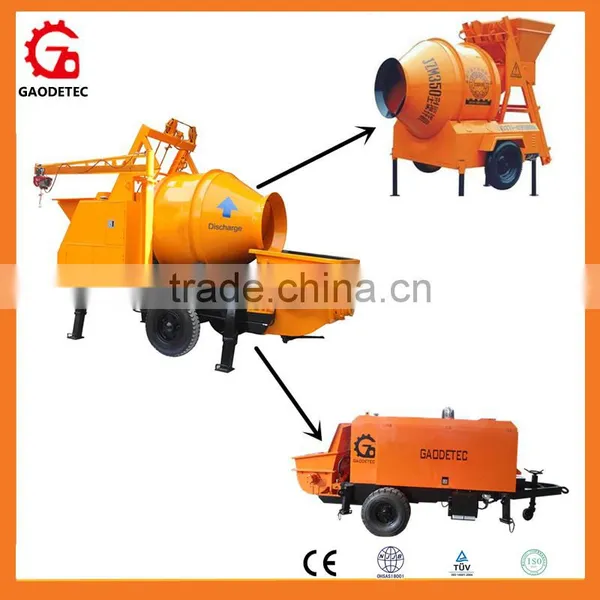

Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.



2. Application:

Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.

Convey greening soil in ecological environment construction.

Convey all kinds of engineering construction in the plain concrete, fiber concrete.



Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.



3. Features:

Mixer and pump in one machine.

Transfer concrete through pipeline. It is fast and safe.

It has small size and suitable for more special environment.

Optional part: cement boom, wireless remote control. This is easy to operate.

Chinese manufacturer portable mobile electric concrete mixer and pump for sale



Technical data

Technical data of portable mobile electric concrete mixer and pump:



Parameters

JBT40-P1

Main oil pump

Domestic /Kawasaki 112

Mixer model

JZM 450

Main Oil Cylinder/Rod * stoke

100*70*800

The maximum theoretical delivery output

40 m3/h

The maximum theoretical mix output

18 m3/h

Vertical pumping distance

70m

Horizontal pumping distance

300m

Distribution valve type

S valve

Main motor

37kw

Outlet pressure

8Mpa

Hydraulic system

Open system

Oil Cylinder * Rod *Stroke

100*70*1000

Concrete cylinder stroke

200*1000mm

Hopper capacity feeding height

800*1000mm

Motor Rated Voltage

380V

Hoist motor

5.5kw

Mixing motor

4*2kw

Concrete Outlet Diameter

180

Max. aggregate size

Cobblestone 40mm

Gravel 30mm

Weight

5300kg

Dimension

4960*2100*2500







Datailed Images

 Chinese manufacturer portable mobile electric concrete mixer and pump for sale

Chinese manufacturer portable mobile electric concrete mixer and pump for saleChinese manufacturer portable mobile electric concrete mixer and pump for sale

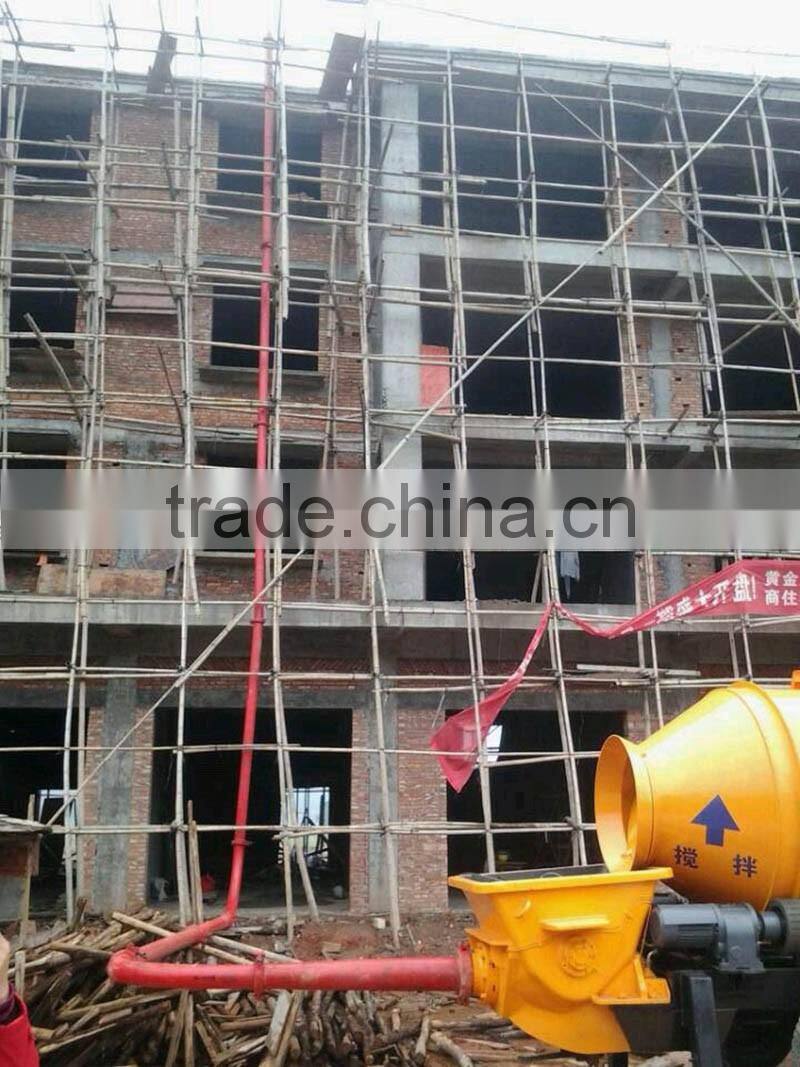

Applicaton

Chinese manufacturer portable mobile electric concrete mixer and pump for saleChinese manufacturer portable mobile electric concrete mixer and pump for sale

 Chinese manufacturer portable mobile electric concrete mixer and pump for sale

Chinese manufacturer portable mobile electric concrete mixer and pump for sale

Chinese manufacturer portable mobile electric concrete mixer and pump for sale

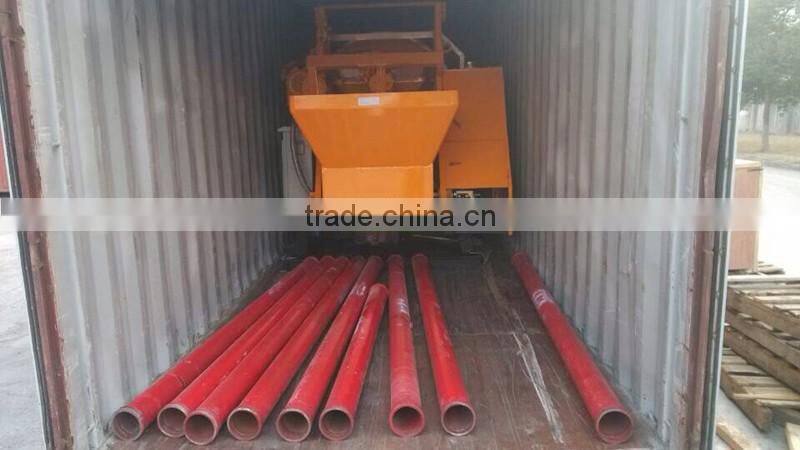

packaging&shipping

 Chinese manufacturer portable mobile electric concrete mixer and pump for saleChinese manufacturer portable mobile electric concrete mixer and pump for saleChinese manufacturer portable mobile electric concrete mixer and pump for sale



Related products

Diesel and electric trailer concrete pump:

 Chinese manufacturer portable mobile electric concrete mixer and pump for sale

Small concrete pump which could pumping concrete and spray concrete.

Chinese manufacturer portable mobile electric concrete mixer and pump for sale

small peristaltic pump for pumping and spraying concrete:

Chinese manufacturer portable mobile electric concrete mixer and pump for sale



FAQ concrete pump

We are a professional manufacturer of concrete pump machine, in order to supply a more suitable concrete pump for you, please help us clear on your requirements:

1. what is max.aggregate?

2. what is pump output ?

3. what is nveying distance(vertical and horizontal)?
