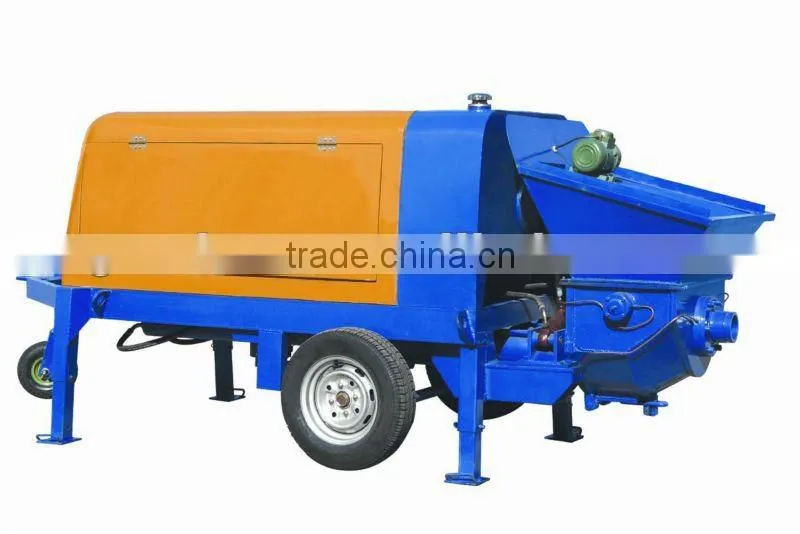

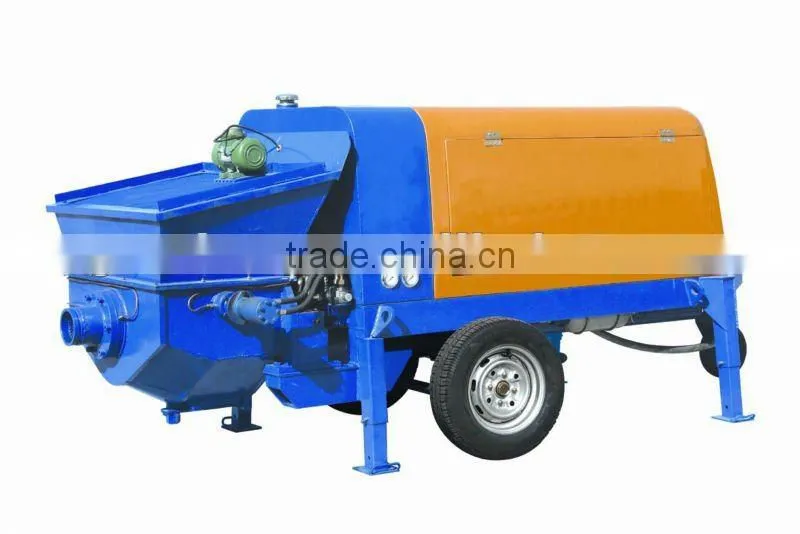

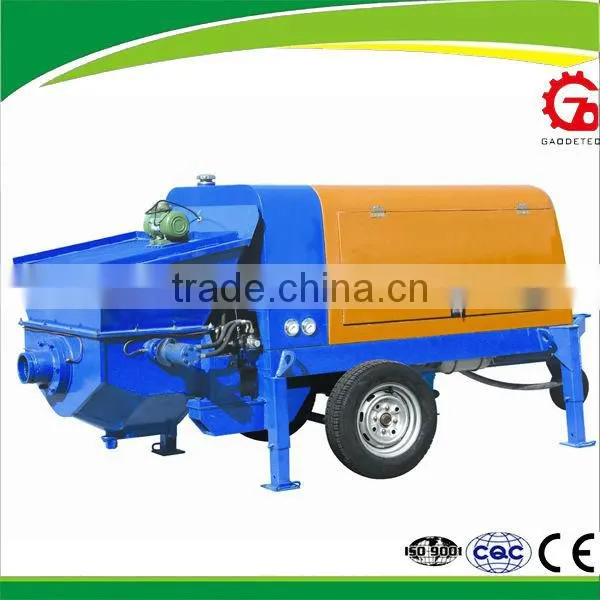

HBT30 widely used construction fine stone concrete pump
HBT30 widely used construction fine stone concrete pump description:
HBT30 fine stone concrete pump can be used for transporting fine stone concrete or mortar in constructions works, tunnels or mining engineering. It can also be used for spray pump for concrete, mortar, refractory materials or green soil spraying and shedding when installed jet accessories.
HBT30 fine stone concrete pump can pump large aggregate concrete when connected with dia. 125mm conveying hose, and it can pump mortar and little aggregate fine stone concrete when reduced dia. 80mm conveying hose. It can meet different customers’ need, thus improve efficiency of use.
Fine stone concrete pump technical date:
Parameter name | Unit | Model | ||
HBT25 | HBT30 | |||
Rated pump pressure | High pressure | MPa | 9 | 11 |
Low pressure | MPa | 4.5 | 6.5 | |
Output | High pressure small output | m3/h | 18 | 24 |
Low pressure large output | m3/h | 25 | 36 | |
Conveying distance | horizontal | m | 500 | 640 |
vertical | m | 140 | 160 | |
Max. particle Dia. | Conveying hose φ76 |
mm | 25 |
|
Conveying hose φ89 | 30 | 30 | ||
Conveying hose φ100 |
| 35 | ||
| Conveying hose φ125 |
|
| 40 |
Material charging height | mm | 1000 | 1100 | |
Main motor power | KW | 30 | 45 | |
Weight | Kg | 1920 | 2480 | |
Overall dimension (L*W*H) | mm | 3560X1450X1580 | 4350X1600X1600 | |
