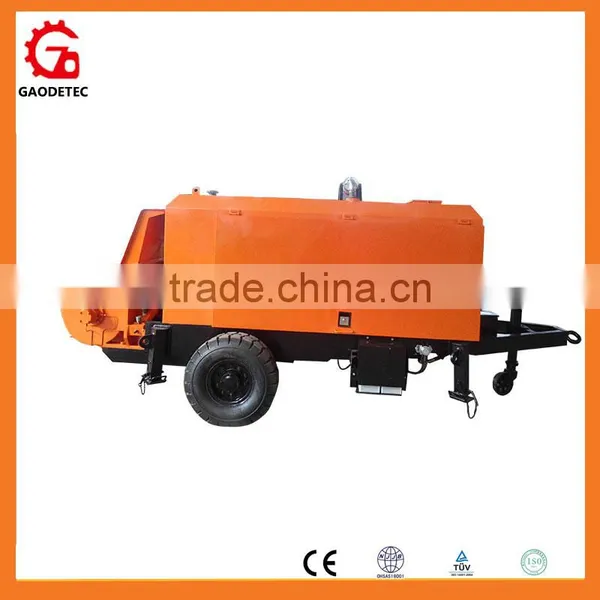

Hot sale China Vuilding Construction Machinery Diesel Concrete Pump
- Description of concrete pump :
Concrete pump is consist of pump, hydraulic system and pipeline, it could convey ready concrete under pressure through the pipeline continuously and it mainly used in the building, bridge and tunnel construction.
2. Features of concrete pump:
1. For power system, domestic famous brand of motor is applied.
2. Using three pump system, oil hydraulic circuit work without interference on each other, small impact and high reliability.
3. With the function of anti-Pumping, it’s conducive to timely eliminate blocking pipe failure, and can stop work for a short period of time.
4. The adopted advanced S pipe distributing valve can automatically compensate the wear gap with a good sealing property.
5. Adopt wear-resisting alloy glass-like plate and cutting ring, longer service life.
6. Long stroke material cylinder has prolonged the service life of material cylinder and piston.
7. The optimal designed hopper has better casing capability and higher work efficiency.
8. Automatic centralized lubrication systems can ensure a effective lubrication to the machine.
9. The humanized design of products makes the operation more convenient and the maintenance more simple.
Technical Data of diesel concrete pump:
Model No. | HBT20-10D | HBT25-8D | HBT30-10D | HBT40-12D | HBT60-12D | HBT80-16D | ||||||
Max. theoretical concrete output (m³/h) | 12 | 21 | 25 | 16 | 30 | 26 | 40 | 32 | 60 | 53 | 84 | |
Max. theoretical concrete pumping pressure (Mpa) | 10 | 5.5 | 8 | 10 | 5.5 | 12 | 7.3 | 12 | 6 | 16 | 9.5 | |
Theoretical vertical conveying distance (m) | 130 | 130 | 130 | 150 | 130 | 180 | ||||||
Theoretical horizontal conveying distance (m) | 350 | 350 | 350 | 400 | 400 | 500 | ||||||
Max. aggregate | φ89mm | 20 | 20 | 20 |
|
|
| |||||
φ108mm |
|
|
| 30 |
|
| ||||||
φ133mm |
|
|
| 40 | 40 | 40 | ||||||
φ150mm |
|
|
|
| 45 | 50 | ||||||
Slump (cm) | 12-23 | 12-23 | 12-23 | 12-23 | 12-23 | 12-23 | ||||||
Concrete tube conveying diameter (mm) | Φ89 | Φ89 | Φ89 | φ133 | φ133/φ150 | φ133/φ150 | ||||||
Cylinder (pieces) | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
Concrete cylinder diameter*route | Φ140×1000 | Φ140×1100 | Φ140×1000 | Φ160×1300 | Φ180×1300 | Φ200×1650 | ||||||
Hydraulic oil tank volume (L) | 180 | 260 | 300 | 370 | 370 | 370 | ||||||
Filling height (mm) | 1100 | 1100 | 1100 | 1200 | 1200 | 1400 | ||||||
Hopper volume (m³) | 0.35 | 0.4 | 0.4 | 0.4 | 0.6 | 0.8 | ||||||
Rated diesel power | 40KW | 49KW | 46KW | 82KW | 82KW | 129KW | ||||||
Overall dimension (L×W×H) (mm) | 4300*1670*1680 | 4300*1670*1680 | 4300*1670*1680 | 4750*1750*1800 | 4800*1750*1600 | 6200*1800*1800 | ||||||
Total weight (kg) | 2500 | 3500 | 3800 | 4000 | 4000 | 6500 | ||||||

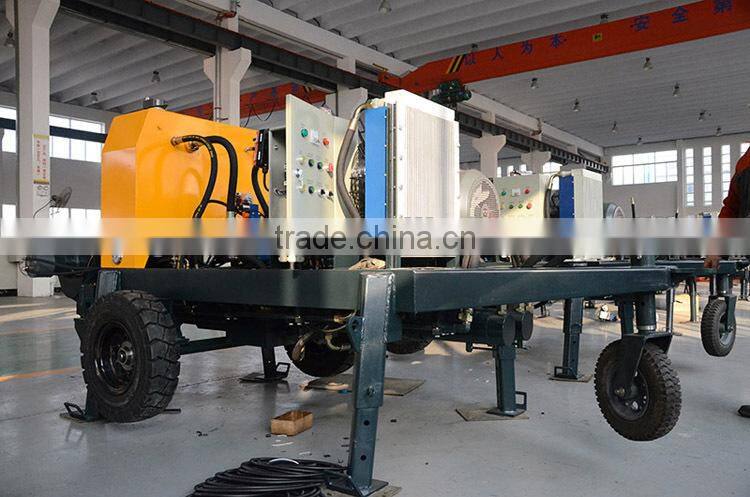

Production line of concrete pump:
Application of concrete pump machine:
1) Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2) Conveying refractory and insulation materials
3) Conveying greening soil in ecological environment construction
4) Conveying all kinds of engineering construction in the plain concrete, fiber concrete
5) Pressure grouting of foundation pile
We are a professional manufacturer of concrete pump machine, in order to supply a more suitable concrete pump for you, please help us clear on your requirements:
1. what is max.aggregate?
2. what is pump output ?
3. what is nveying distance(vertical and horizontal)?
4. do you need concrete mixer which is usually used together with concrete pump?
