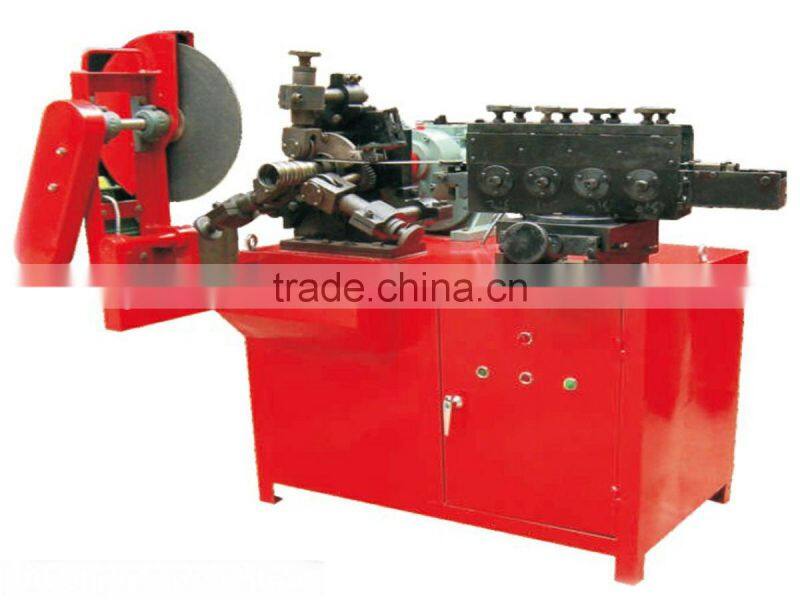

Hot Prestressing corrugated metal pipe machine
Hot Prestressing corrugated metal pipe machine
1. Prestressing corrugated metal pipe machine is a special equipment which manufactures the metal bellows for Prestressing concrete, makes the galvanized steel strip coil into double wave shape then undercuts and swages to apply the bellows.
2. The ducts are mainly used for Prestressing pore of post-stressing Prestressing concrete bridges,large-scale construction progects etc.
3. The machine has the advantages of small volume, compact structure, high efficiency, simple operation, easy maintenance;and it is suitable for construction or factory to use.
4. The ducts quality accord with JG225-2007 Prestressing concrete with metal spiral pipe the standard requirement, and has good seal performance, facilitating construction.
5. Dynamo adopts the infinitely variable speeds, so the tube rate is high, and high quality.
6. For prestressing and post-tensioning use.
Hot Prestressing corrugated metal pipe machine
Parameter:
Parameter of Prestressing corrugated metal pipe machine | |||||||||
Item | Processing | Bellows | Specification of steel | Reel pipe scope | Power of | Power of | Overall | Weight | |
Unit | m/min | mm | mm | mm | KW | KW | m | Kg | |
Parameter | 1~4 | ≥27 | 0.25~0.36X36±0.5 | Φ 35~ Φ 130 | 3 | 0.75 | 1.5X1.4X1 | 450 | |
We also manufacture different kinds of anchor and wedges
Hot Prestressing corrugated metal pipe machine
Packaging Detail: Standard export cartons or as your requirements
Shipping Detail: in stock; out of stock(5 working days); customized(7 working days)
Hot Prestressing corrugated metal pipe machine
We manufacture various kinds of machines and anchors, provde samples, OEM and overseas after-sale service.
Hot Prestressing corrugated metal pipe machine

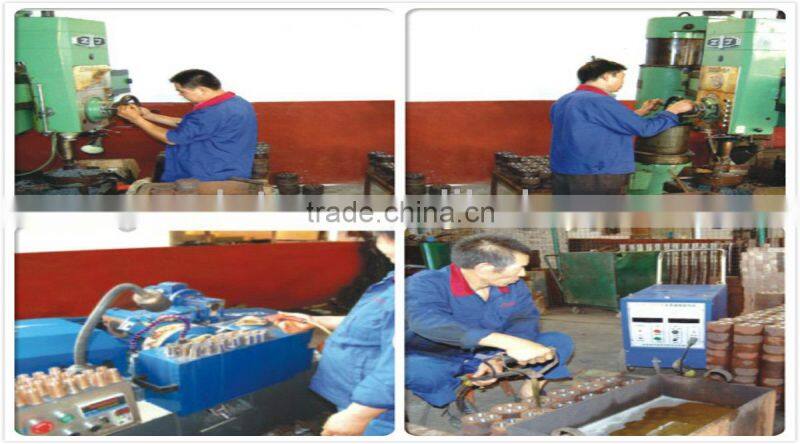

Our workshop and ware house
our factory
our certificate
