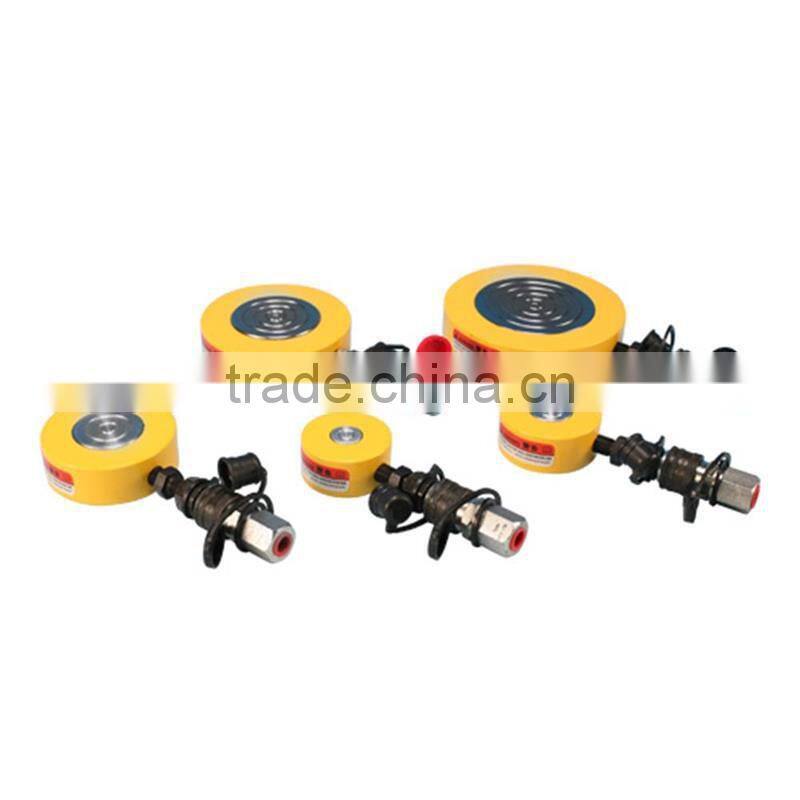

Introduction of 1500 bar STC Series Small Hydraulic Cylinder Ram
Thin ultra-low hydraulic jack can be precisely adjusted and lifted in a very narrow space. It is very suitable for docking operations such as machinery, turbines, heavy structures. All models are single-acting, load reset design. When it is used, the base must be fully supported.
Features of 1500 bar STC Series Small Hydraulic Cylinder Ram
- apply in very narrow space
- light weight, small size, high capacity
- with the lowest collapsed height, apply to adjust in small gap, Pressure 1500 bar
- max plunger inclined angle is 4°
- operating pressure is 70-150MPa

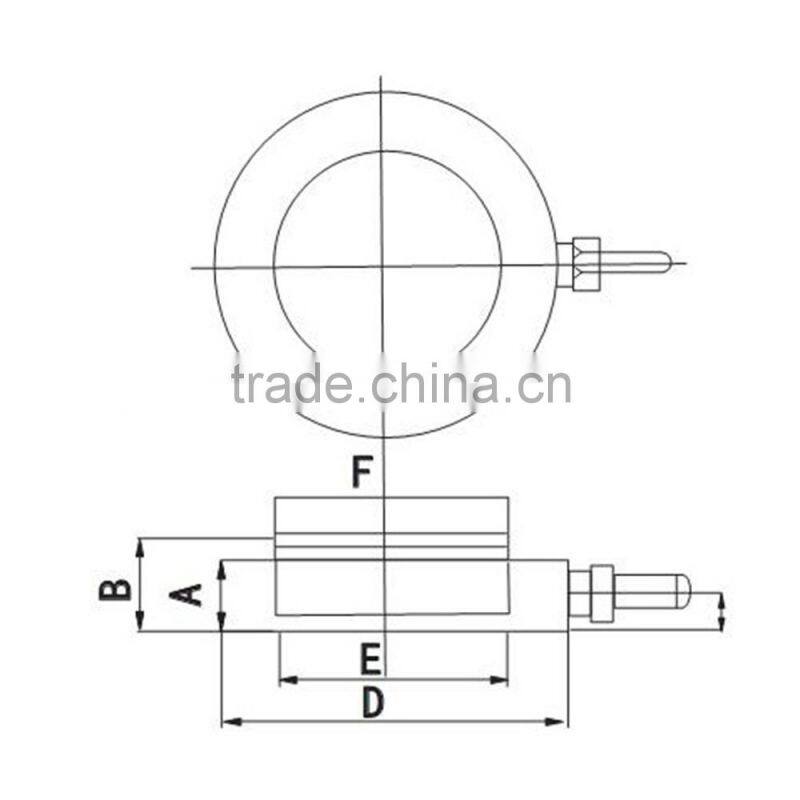

Designation of 1500 bar STC Series Small Hydraulic Cylinder Ram
Technical data of 1500 bar STC Series Small Hydraulic Cylinder Ram
| model | capacity tons (KN) | stroke (mm) | oil capacity(cubic cm) | collapsed height A (mm) | extending height B (mm) | out diameter D (mm) | bore E (mm) | plunger diameter F (mm) |
weight (kg) |
| STC-00510 | 5 | 10 | 3.46 | 30 | 40 | 60 | 21 | 21 | 12 |
| STC-01010 | 10 | 10 | 7.04 | 30 | 40 | 70 | 30 | 30 | 12 |
| STC-02510 | 25 | 10 | 17.35 | 30 | 40 | 90 | 47 | 47 | 11.5 |
| STC-05010 | 50 | 10 | 36.32 | 30 | 40 | 115 | 68 | 68 | 11.5 |
| STC-10010 | 100 | 10 | 69.4 | 30 | 40 | 144 | 94 | 94 | 11.5 |
| STC-12010 | 120 | 10 | 78.54 | 30 | 40 | 160 | 100 | 100 | 11.5 |
| STC-15010 | 150 | 10 | 105.68 | 31 | 41 | 176 | 116 | 116 | 12.5 |
| STC-20010 | 200 | 10 | 136.58 | 32 | 42 | 204 | 132 | 132 | 13.5 |
Application of 1500 bar STC Series Small Hydraulic Cylinder Ram

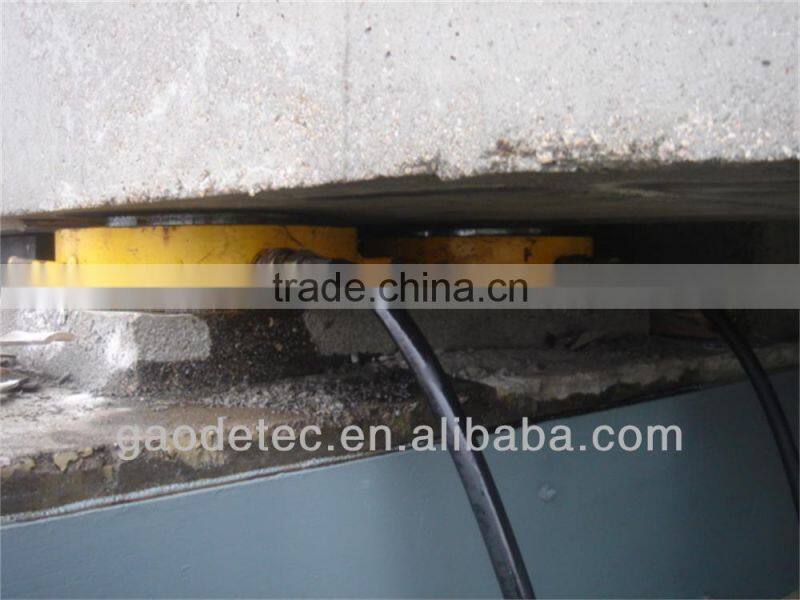

Bearing replacement of Jiangyin Bridge

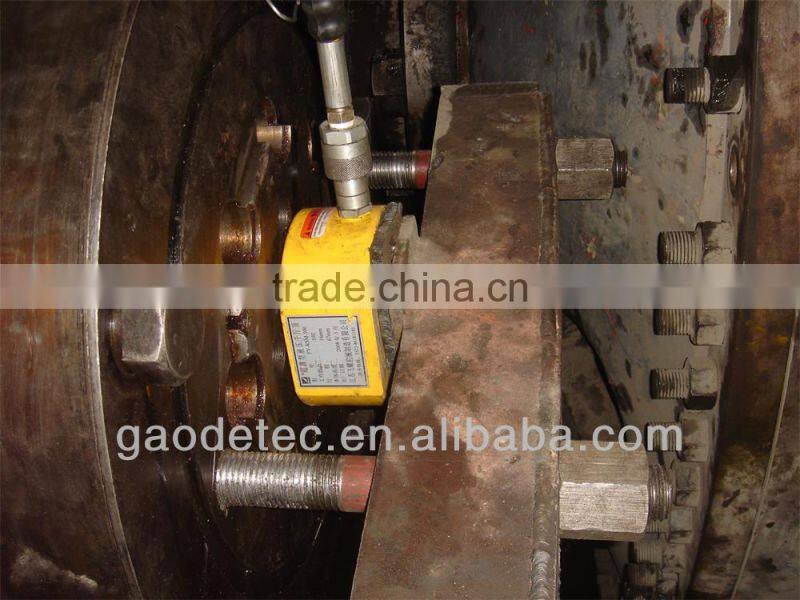

applying in pushing of equipment maintenance
We manufacture different kinds of cylinders:
Application of cylinders
1500 bar STC Series Small Hydraulic Cylinder Ram
Packaging Detail : Standard wooden cases or plywood
Shipping Detail : 15 working days after receipt of order conformation
1500 bar STC Series Small Hydraulic Cylinder Ram
Attention when use STC cylinders:
- max plunger inclined angle is 4°
- operating pressure is 70-150MPa
- plunger can not be stretched immoderately
- applied in very narrow space
1500 bar STC Series Small Hydraulic Cylinder Ram
we can provide samples, OEM, and after-sales service. Overseas after-sales service is available.
1500 bar STC Series Small Hydraulic Cylinder Ram
Gaode Equipment Co.,Ltd. is a leading supplier of shotcrete/gunite machines, grouting pumps, mortar pumps and hose pumps,drilling rigs,plaster machine and grout mixer in China, as well as an unique supplier with ISO 9001:2008 and CE certificate in above prodcuts in China.Our products have been exported to the USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal.
A few of our employees have been working in designing and selling the above machines for about twenty years. They can provide customers with sincere, friendly and timely technical consultation, technical support and after-sales service.
For good relationship with customers/clients, our company has been providing high-quality products at competitive prices with sincere and timely services. Many customers/clients are our friends and long-term partners now.
workshop
certificate
