1.25Hp 0.90Kw Air Power Gear Motor With Reducer

1.25Hp 0.90Kw Air Power Gear Motor With Reducer thumbnail-1
1.25Hp 0.90Kw Air Power Gear Motor With Reducer photo-1
US$ 100 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GEC
Model Number:
4AM
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name GEC
Model Number 4AM

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD45000.00

Through trade assurance you can 100% payment refund up to trade assurance amount for orders

not meeting agreed Delivery or Quality terms.



Product Description

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

Known industry wide for their rugged construction and reliability, air motors are used in a variety of applications. Air Powered

Gear motors are available in right angle and in-line models offering a maximum torque range of 73 to 5,200 lb.in(8 to 587Nm) and gear ratios from 10:1 to 60:1 single reduction gear reducers.A full line of recommended accessories is also available.

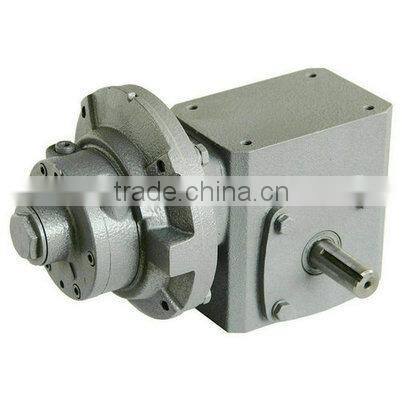

1AM-NRV-95:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

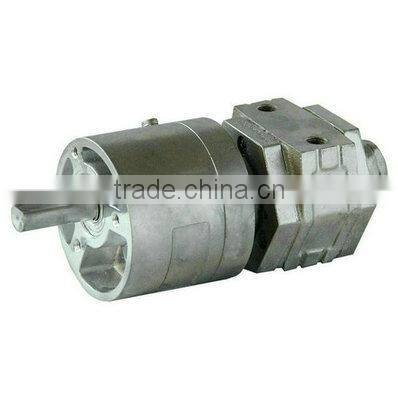

1UP-NRV-16:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

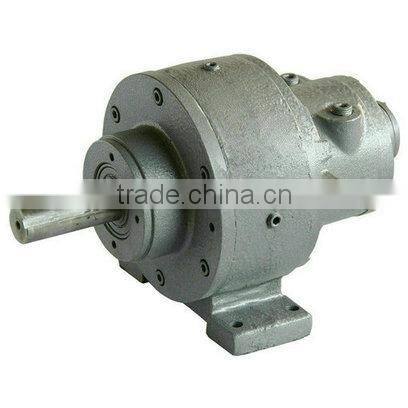

4AM-RV-10/4AM-RV-15:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

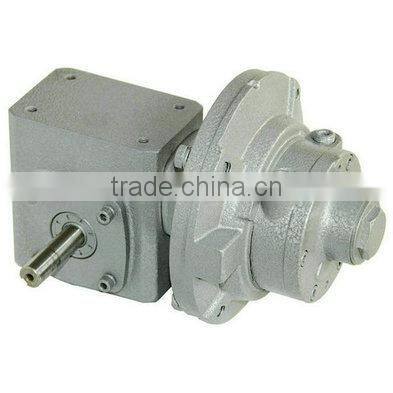

WG01:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

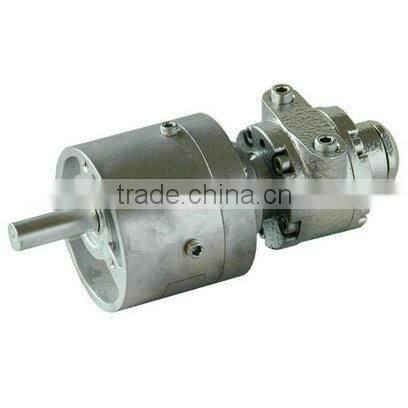

WG02:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer





Product Feature

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
  2. proof water, fire, moisture and explosion
  3. can work in humid, high temperatures, high dust and other proof working environment
Technology Parameter

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

Model

Gear Ratio

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

Hp

Kw

Nm

Ib.in

rpm

M^3/h

cfm

rpm

Nm

Ib.in

1AM-NRV-95

15:1

0.34

0.26

7.1

62

350

36

21

30

8.1

72

1UP-NRV-16

15:1

0.32

0.23

5.5

49

400

36

21

30

8.0

71

4AM-RV-10

10:1

1.26

0.94

31

274

300

98

57.5

30

48

425

4AM-RV-15

15:1

1.25

0.9

45.2

400

200

102

60

20

72

640

WG01

20:1

0.64

0.48

21

172

110

34

20

12

28

240

WG02

20:1

0.90

0.68

29

256

150

46

27

17

40

343.5





Other Model Vane Air Motor:

Technology Parameters:

Model

Maximum Speed

Maximum Torque

Power

Torque

Rotate Speed

Air consumption



Rotate Speed

Torque

hp

kw

Nm

lb.in.

rpm

m3/h

cfm

rpm

Nm

lb.in.

1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.6

1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.0

2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.1

4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56

6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115

8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185

16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372





1AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

1UP:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

2AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

4AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

6AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

8AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

16AM:

1.25Hp 0.90Kw Air Power Gear Motor with Reducer





Troubleshooting chart:

Symptom

Possible Causes

Corrective Action





Doesn’t run.
  1. Dirt or foreign material.
  2. Internal rust.
  3. Motor is jammed.
  4. Worn vanes.
  5. Bearing failure.
  1. Inspect and wash.
  2. Inspect and wash.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.



Runs well then slows down.
  1. Restricted exhaust.
  2. Motor requires cleaning.
  3. Air source inadequate.
  4. Air source far from motor.
  5. The sealant is corrosion.
  1. Inspect and repair.
  2. Disassemble and clean.
  3. Check air resource.
  4. Adjust air resource.
  5. Inspect and replace.






Low torque.
  1. Dirt or foreign material.
  2. Low air pressure.
  3. Motor requires cleaning.
  4. Worn out bearings.
  5. Worn air motor vanes.
  6. The sealant is corrosion.



  1. Disassemble and clean.
  2. Increase pressure.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.
  6. Inspect and replace.







Low speed.
  1. Dirt or foreign material present.
  2. Internal rust.
  3. Low air pressure.
  4. Air source restricted.
  5. Restricted exhaust.
  6. Motor is jammed.
  7. Air source CFM inadequate.
  8. Air source far from motor.
  9. Worn vanes.
  1. Disassemble and clean.
  2. Inspect and wash.
  3. Increase pressure.
  4. Check air hose.
  5. Inspect and repair.
  6. Disassemble and clean.
  7. Check air resource.
  8. Adjust air resource.
  9. Inspect and replace.






Workshop

1.25Hp 0.90Kw Air Power Gear Motor with Reducer

1.25Hp 0.90Kw Air Power Gear Motor with Reducer





Certifications

1.25Hp 0.90Kw Air Power Gear Motor with Reducer 1.25Hp 0.90Kw Air Power Gear Motor with Reducer
