Home > Products > New Products > TK-76 semi automatic tube bender
TK-76 semi automatic tube bender
- 500 Set / Sets per Month
- Qingdao/Tianjin/Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | TECH |
Model Number: | TK-76 | Machine Type: | Other, bending machine | Raw Material: | Pipe |
Material / Metal Processed: | Other, steel tube | Power: | Other, electric | Automation: | Manual |
Extra Services: | Other, bending | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard export packing.
Product Description
TK-76 semi automatic tube bender
Henan Taike Industrial and Equipment CO.,LTD. is a factory who is specialized on producing steel bar, steel tube processing machinery in China. The main products include steel bar bender, tube bender, steel cutting machine, straightening and cutting machine etc.
TK-76 semi automatic tube bender
Electric type tube bending machine is drived by motor power to achieve bending tubes,
- 1. Mechanical transmission parts
Adopt independent research design,transmission by gear box, durable, strong intensity
- 2. Circuit control section
Adopt advanced design embedded microcomputer intelligent control system,digital angle adjusting,simple operation
Machine features
- 1. Machine performance stable
- 2. Smart chip control , fast response , high sensitivity, you can set the intelligent control system
- 3. Using encoder to control angle , running angle accuracy, high repeatability , minimal error
Application
Furniture manufacturing industry, gate processing industry, fitness equipment industry , the pipeline industry , decoration industry , car parts manufacturing industry , recreational equipment industry
Technical parameter
Model | TK-38 |
Bending diameter | Max.dia 38mm Max.wall thickness 3mm |
Bending speed | 10 to 12 r/min |
Bending angle numbers | 9 |
Max bending degree | 180 |
Min bending degree | 5 |
Motor power | 3KW |
Machine size | 920*650*850mm |
Machine weight | 210kgs |
Model | TK-51 |
Bending diameter | Max.dia 51mm Max.wall thickness 3mm |
Bending speed | 4 to 6 r/min |
Bending angle numbers | 9 |
Max bending degree | 180 |
Min bending degree | 5 |
Motor power | 3KW |
Machine size | 930*680*850mm |
Machine weight | 260kgs |
Model | TK-76 |
Bending diameter | Max.dia 76mm Max.wall thickness 3mm |
Bending speed | 3 to 5 r/min |
Bending angle numbers | 9 |
Max bending degree | 180 |
Min bending degree | 5 |
Motor power | 4KW |
Machine size | 940*750*850mm |
Machine weight | 300kgs |
1. Packing ways: Standard export packing.
2. Shipping: by sea.
Machine warranty is one year.

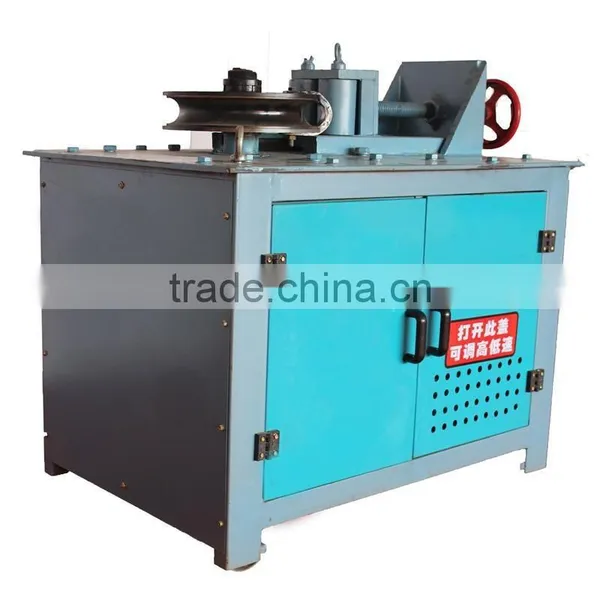

Photo of semi automatic tube bender
TK-51
TK-76
Company Profile
Henan Taike Industrial and Equipment Co., Ltd. is specialized manufacturer with a collection of scientific research, production, sales and after-sales service. The main products are various series of steel bar bending machine, the reinforced cutting machine and vibration rammer etc. small mechanical equipment.
Our factory is located in the famous mechanical township Changge (Henan ), covers an area of 20,000 square meters, with more than 300 employees, including more than forty engineers and technicians, 64 sets of precision equipment. Our company introduces domestic foreign advanced technology and processes, which established the international advanced production lines and first-class modern testing base. The company has improved the quality supervision system, superb engineering installation team, and good after-sales service team; let our sales and economic indicators ranking the forefront of the domestic industry. The products are exported to more than thirty countries and regions.
We always adhere to the principle of "Quality best, reputation-based, customer first", determined in the stable development and national customers to establish long-term relationships, in the mutual interference beneficial basis, seek common development and prosperity!
We are seeking sincere cooperation with all interested companies.
