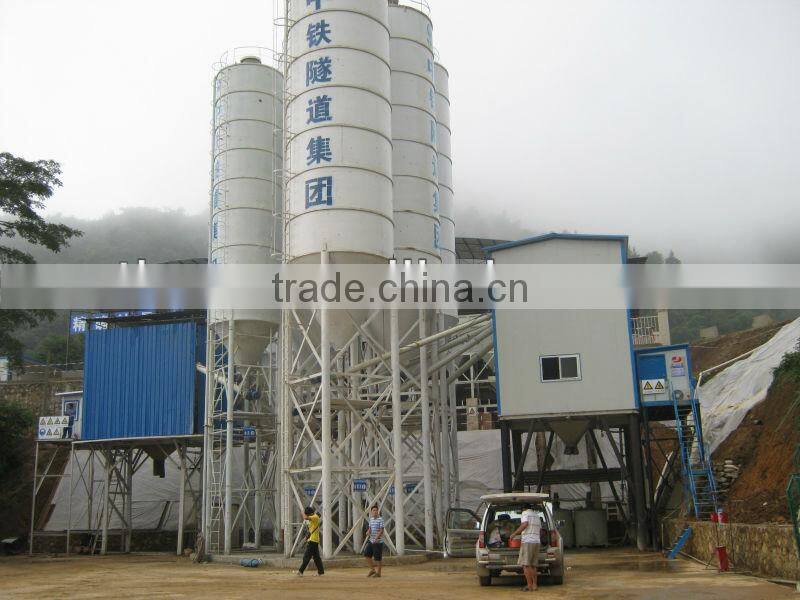

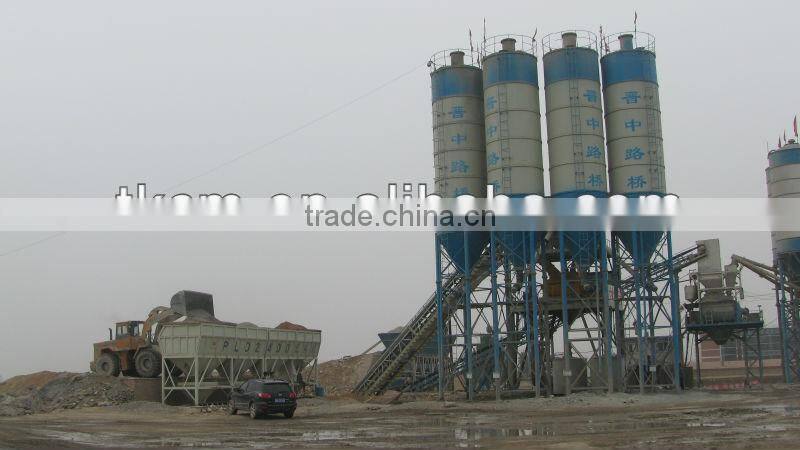

HZS90 Concrete Mixing Station
Brief Indruction:
On the basis of combining advantages of various foreign mixing building & stations and advanced technology, our mixing station has been developed and produced. It adopts modular structure design, which maintains convenient installation & removal and safe, comfortable and reliable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance.
Full-closed main mixing body, aggregate conveying system and dusting system can effectively reduce environmental pollution arising from dust and noise. This equipment can be used for units of road, railway, water and electricity, port, tunnel, bridge, airport, concrete precast, and commercial concrete
Features:1. Integrated design,Compact structure,save floor area
2.Reliable quality, good safety performance
3. Layout flexibility, Install relocation fast and convenient
4. Low dust , low noise, more environmental
5. Accurate high-precision electronic measurement
6. Accessory products using well-known brand
Main data:
Model |
HZS 90 |
|
Theoretical Productivity |
90 m³/h |
|
Concrete Mixer |
JS1500 |
|
Concrete Batching Machine |
PLD2400 |
|
kinds of aggregates |
4 |
|
Max. Aggregate Sizes (Pebble / Gravel) |
80 mm |
|
Discharge Height |
4100 mm |
|
|
Aggregate Weighing System |
Weighing capacity |
0-3500 kg |
Weighing accuracy |
±2% |
|
|
Cement Weighing System |
Weighing capacity |
0-1500 kg |
Weighing accuracy |
±1% |
|
|
Fly Ash Weighing System |
Weighing capacity |
0-900 kg |
Weighing accuracy |
±1% |
|
|
Water Weighing System |
Weighing capacity |
0-600 kg |
Weighing accuracy |
±1% |
|
|
Admixture Weighing System |
Weighing capacity |
0-50 kg |
Weighing accuracy |
±1% |
|
Total Weight |
88 T |
|

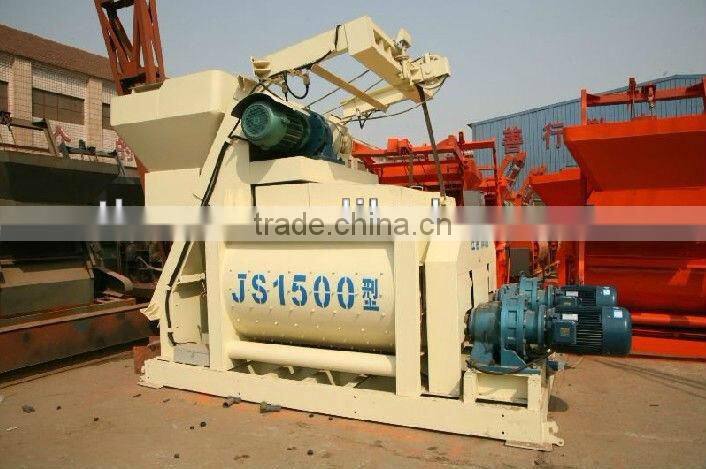

JS1500 concrete mixer

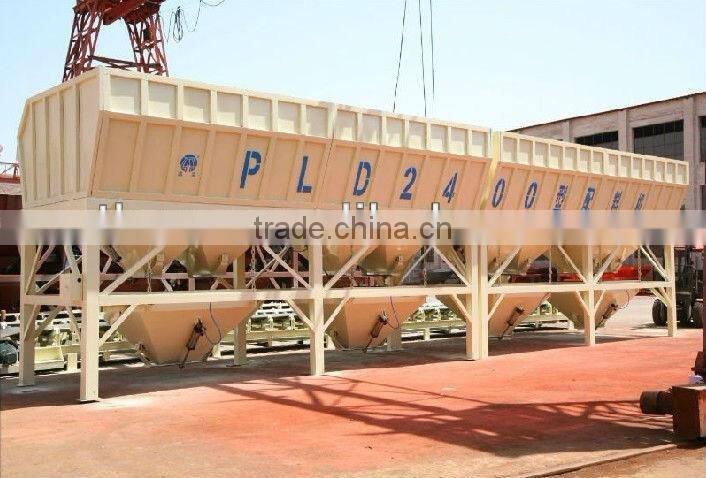

PLD2400 batching machine

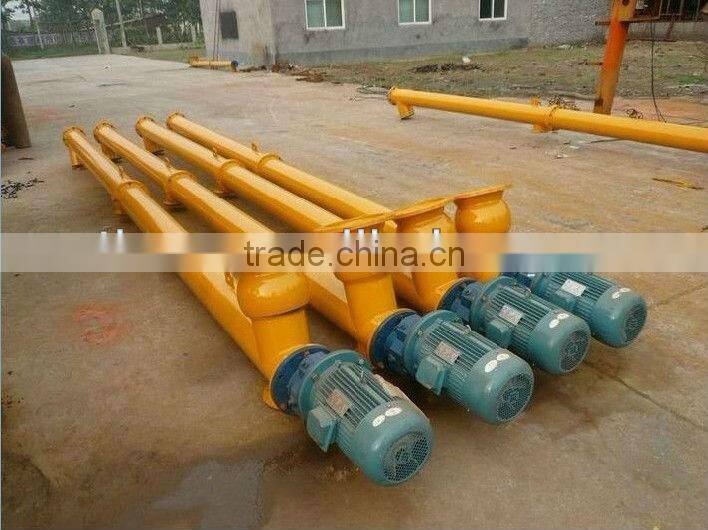

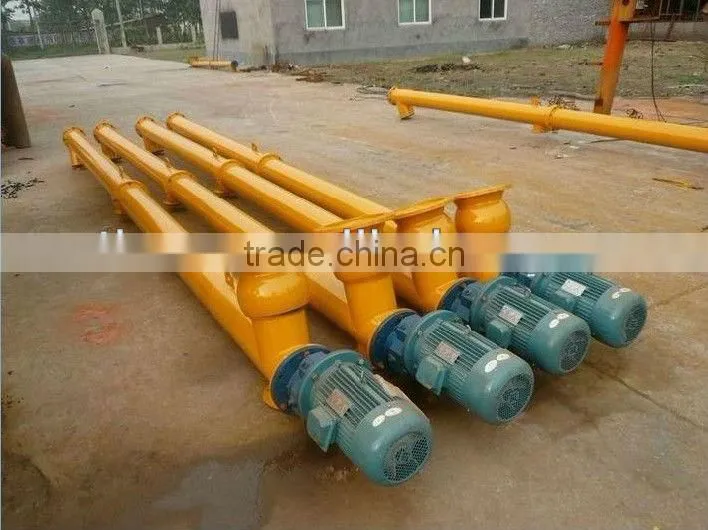

Screw Conveyor

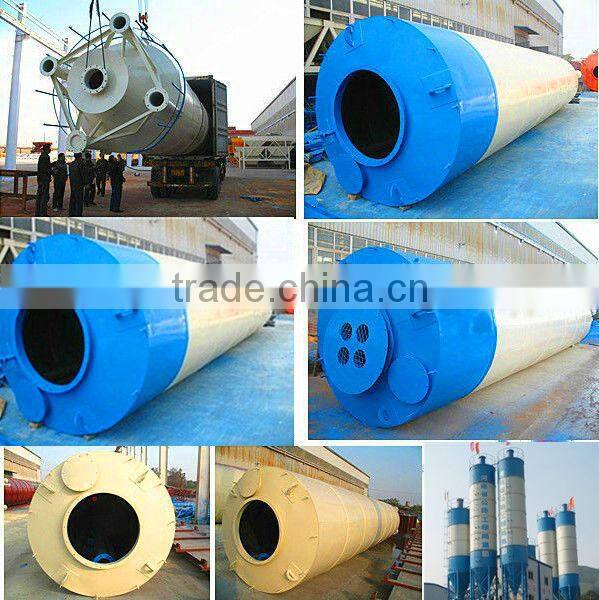

cement bin

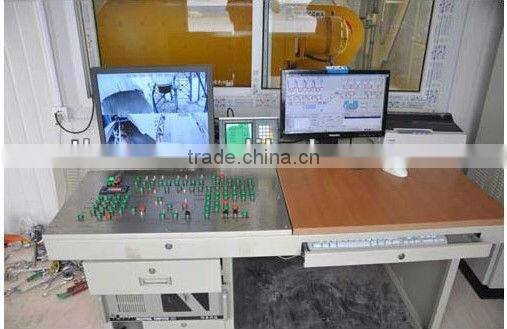

centralized control system
