Hot Sale GTQ5-12A NEW Processing Tube Cutting off Straightening Machine

Name: Hot Sale GTQ5-12A NEW Processing Tube Cutting off Straightening Machine
Brand: TECH
SKU: 141384892
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Straightener & Cutter

Use:

Bar

Henan Taike Industrial And Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjing/shanghai/qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Straightener & Cutter

Use Bar

Place of Origin Henan, China

Brand Name TECH

Model Number GTQ5-12A

Voltage 380V/340V/220V

Power(W) 16KW

Dimension(L*W*H) 2950*750*1160mm

Weight 1200kg

Certification ISO9000

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

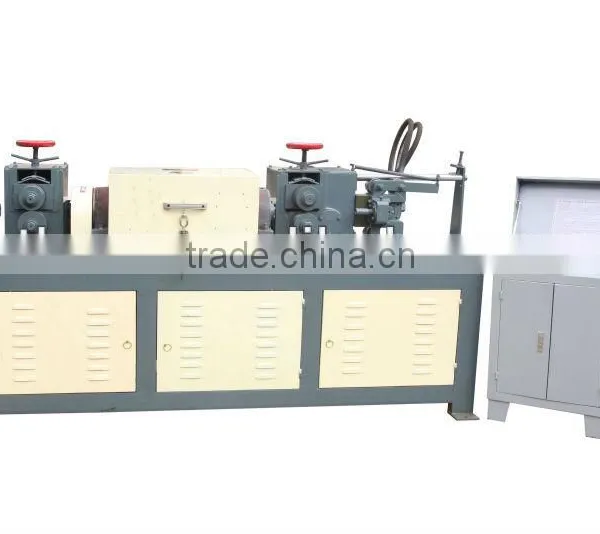

GTQ5-12A tube cutting off straightening machine

Usage: suitable for straightening and cutting of 4-14mm round steel and 4-12mm

deformed steel. Automatic CNC system makes it easy to operate and improve the working efficiency and straightening accuracy.

Especially suitable for big building site and metal processing company.

Main data for tube cutting off straightening machine

Model:GTQ5-12A

Straightening diameter: Φ4 to Φ14mm

Straightening wheels: 8 pics
Speed of working: 35-42m/min

Cutting space: 900mm (can be longer)
Cutting length error: ±0.5cm
Straightening accuracy: ±2mm/m
Motor power: 16KW

Overall size: 2950*750*1160mm

Weight: 1200kgs

Straightening diameter	φ4-φ14mm
No. of straightening wheel	8 pics
Speed of working	35-42m/min (high/low speed adjustable)
Cutting space	800-900mm (can be longer)
Error of cutting length	±0.5cm
Straightening accuracy	±2mm/m
Motor power	16KW (Traction 3KW, Straightening 7.5KW, Cutting 5.5KW)
Overall size	2860×900×1200(mm)
Gross weight	1300kg
