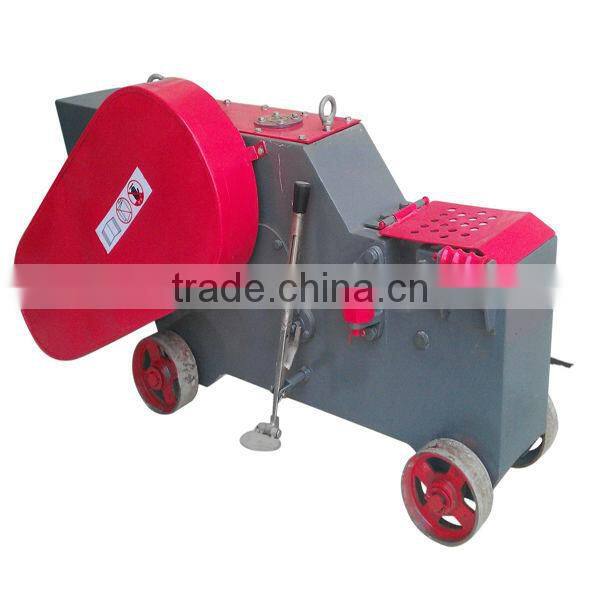

GQ40 steel bar cutting machine
• This cutting machine is mainly used for cutting carbon steel, cold and hot round steel,
screw hread steel, deformed steel, flat steel , angle steel and square steel in construction project.
• It’s made of high steel knife seat and connecting shaft ,high speed international standard motor and firm reinforcing covering
• This machine is small, solid,lubricant better,little power loss,opration easy,high efficiency, convenient for moving and the knife can be controlled by manual.
Features for GQ40 steel bar cutting machine :
1.Small size, solid structure
2.Lubricant better, save power
3.Easy operation and high efficiency
nvenient for moving
5.Reliable quality, high safety
Suitable for cutting of carbon steel,hot bar,deformed steel,flat iron and angle steel.
MAIN TECHQUIE PARAMETER for GQ40 steel bar cutting machine:
| Cutting diameter of round steel (Q235-A) | 6-32mm |
| Max cutting capacity of flat iron | 70*15mm |
| Max cutting diameter of square steel (Q235-A) | 32*32mm |
| Max cutting capacity of angle steel | 50*50mm |
| Motor power | 2.2KW |
| Voltage | 380V |
| Motor revolving speed | 2840r/min |
| Overall size | 1260*530*750mm |
| Gross weight | 330kgs |
Shipment and payment for GQ40 steel bar cutting machine :
1. Shipment: Settle the shipment by sea cargo/by air cargo for mass production
2. Payment: by T/T,Western Union, L/C Special issues can be discussed
Details for GQ40 steel bar cutting machine :
