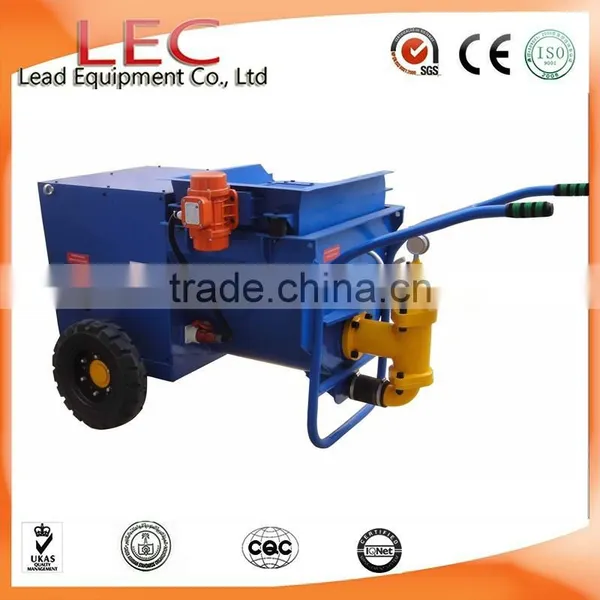

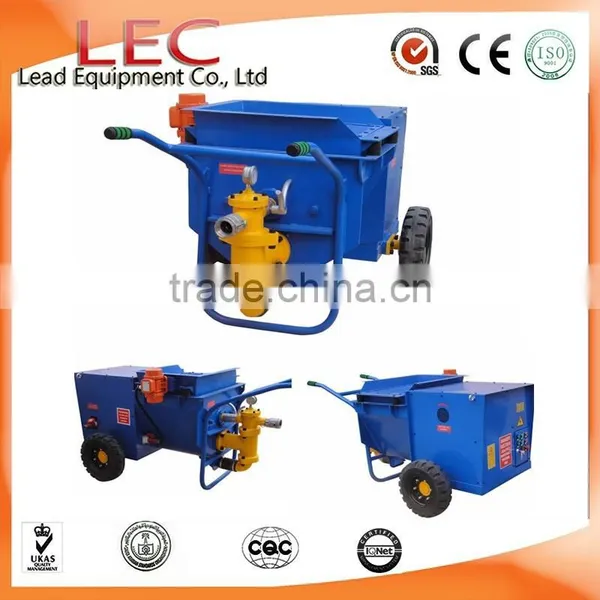

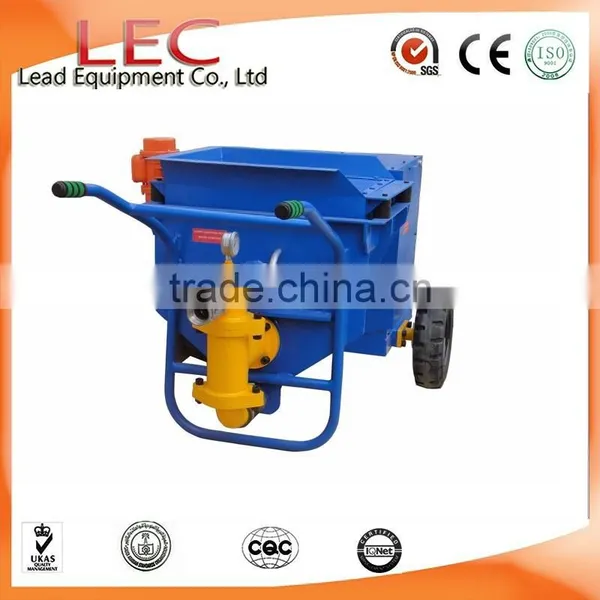

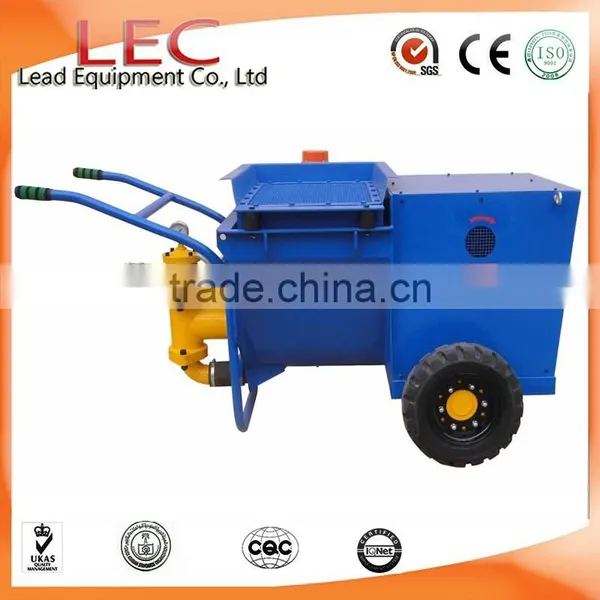

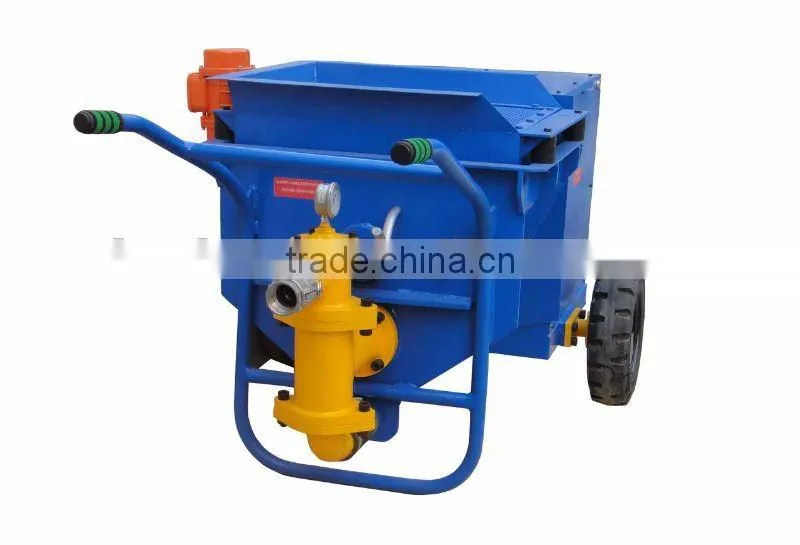

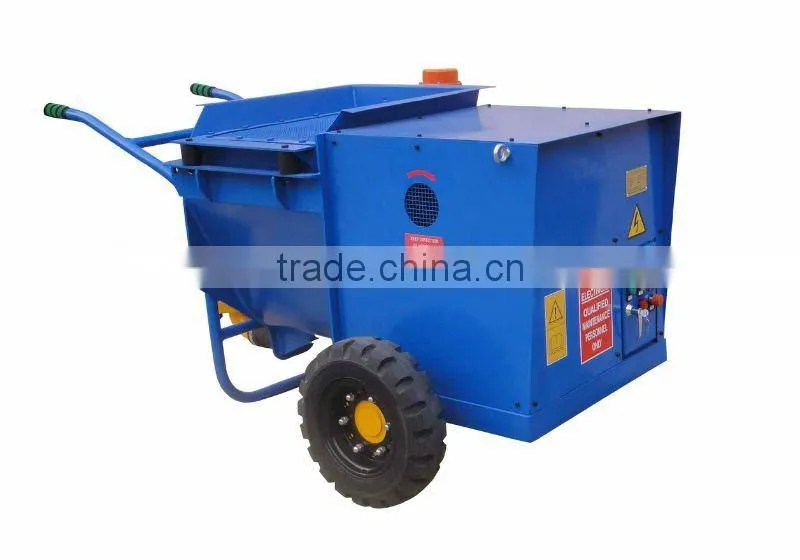

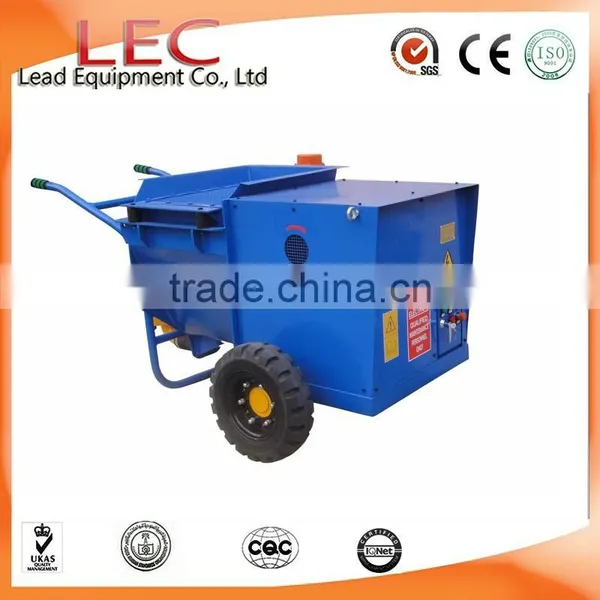

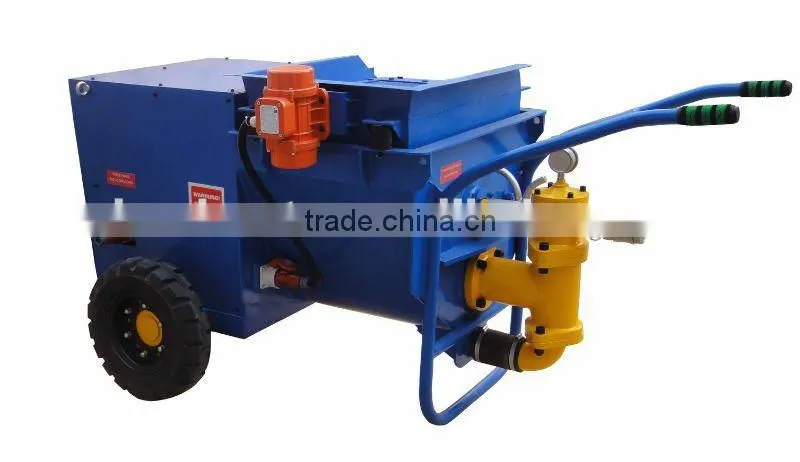

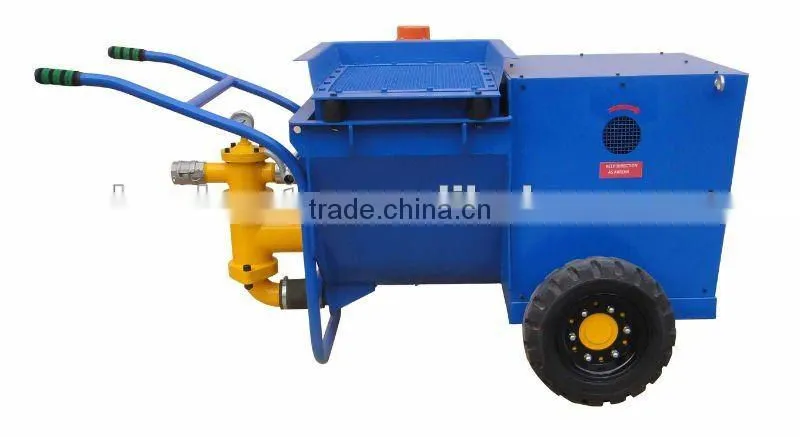

LMP50/40 Slurry mortar plastering pump

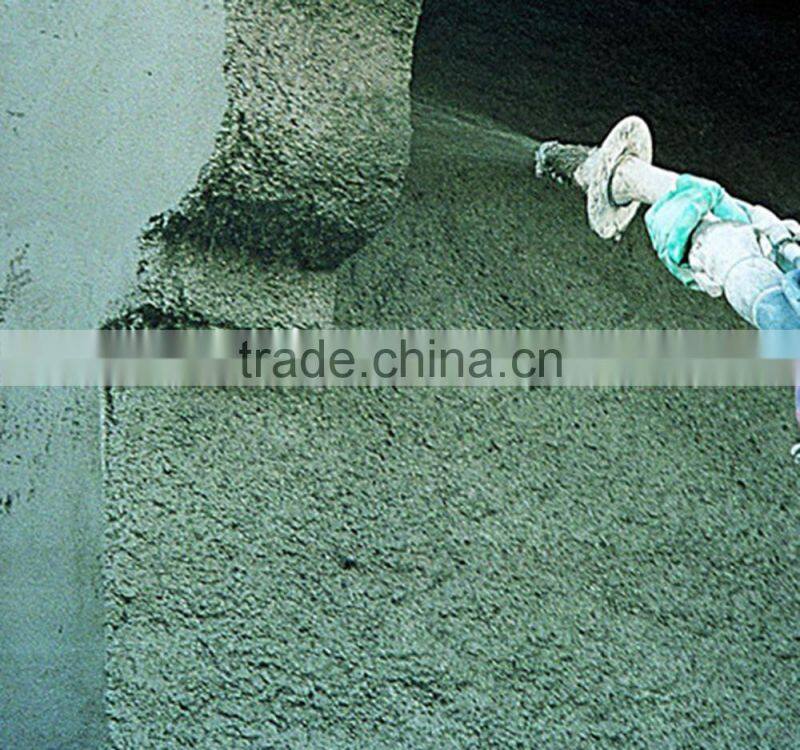

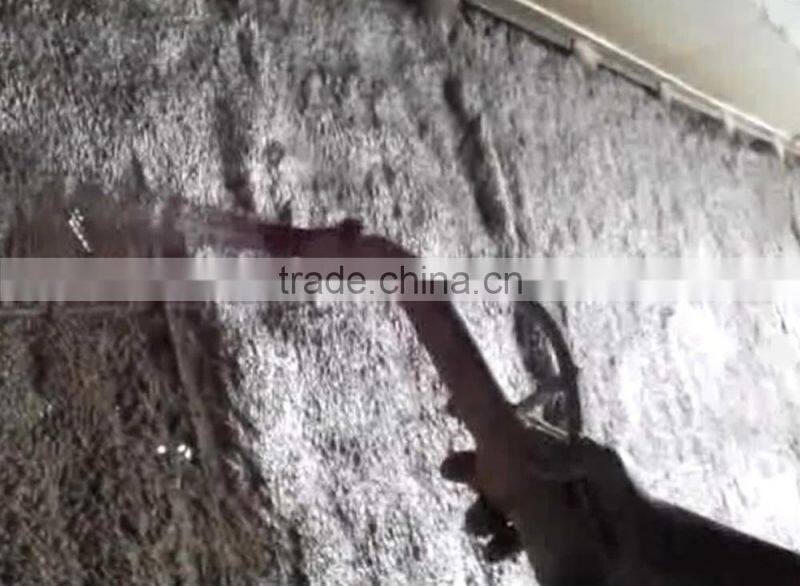

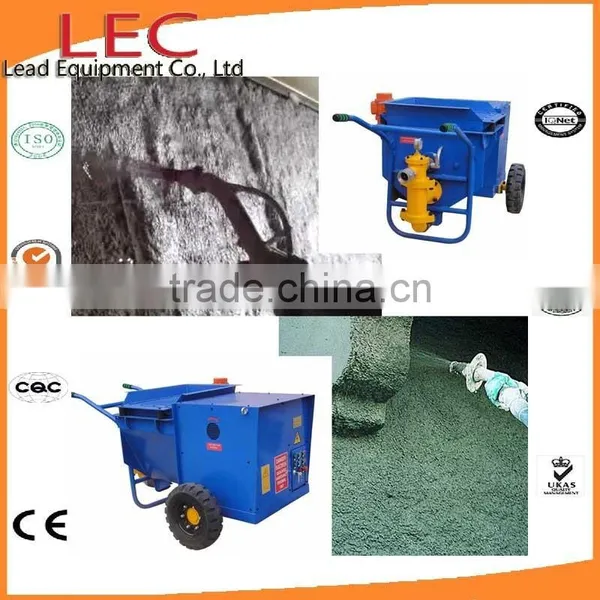

LMP50/40 slurry pump is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
LMP50/40 Single-Piston slurry pump features:
Single piston with single-acting.
Ball valve
Mechanical transmission
Integrate pump head and hopper; Prevent eduction and deposition together with the paddle agitating
LMP50/40 Single-Piston slurry pump Technical data:
Rated Output |
50L/min |
Rated Pressure |
4MPa(40bar/580PSI) |
Cylinder Dia. |
90mm |
Piston Stroke |
85mm |
Stroke/Minute |
95/min |
Inlet diameter |
75mm |
Outlet diameter |
50mm |
Max. Aggregate size |
5mm |
Water cement ratio |
1: 3 |
Power unit |
5.5KW(Electric) |
10hp(Diesel)Chassis |
Skid or Tyre |
Weight |
450kg |
Overall Dimensions |
1715x1024x900(mm) |

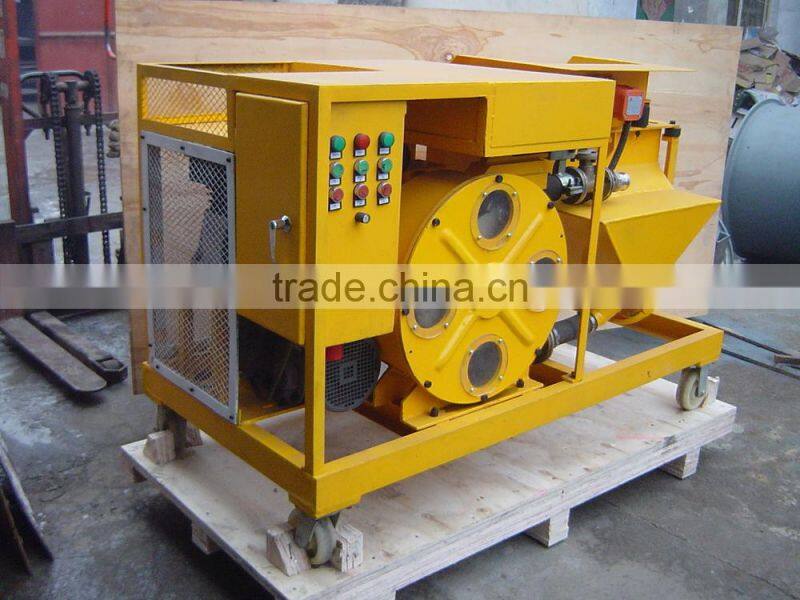

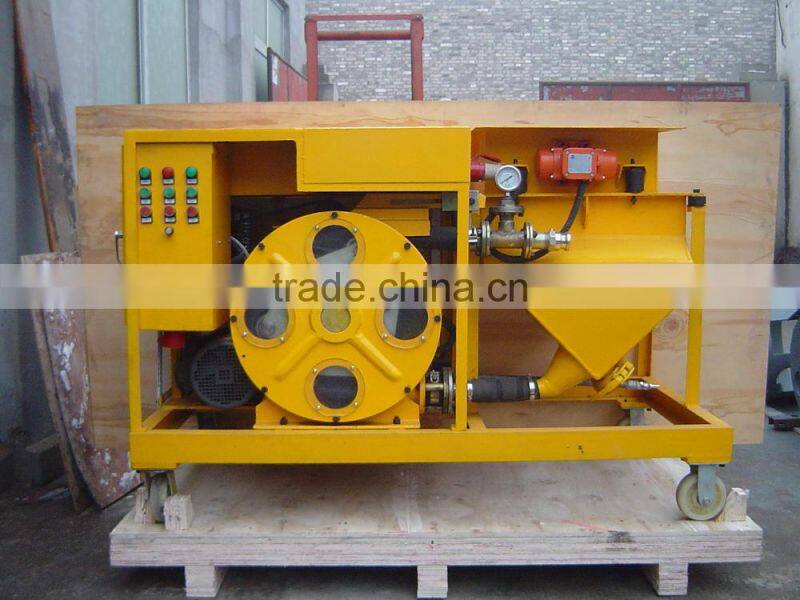

LMP40/10 Mortar Plaster Pump
Technical Data of LMP 40/10 Mortar Pump:
Item |
Description |
Rotor Dia.(D) |
430mm |
Hose ID |
38mm/1.5inch |
Rotor Rev. |
15-33rpm |
Rated Output/Flow |
18-40L/min |
Rated pressure |
10 bar |
Motor Power |
3 KW /4hp, 3 phase, 380v, 50 Hz,IP55 |
Suck lift |
5 meter |
Hose material |
NR(Natural Rubber) |
Overall Dimension |
1600x800x1060mm |
Weight |
440kg |
Platering Machine Automatic Wall Plastering Equipment
C: Screw mortar spraying pump (Advantage is continuous spraying, but wearing parts cost much.)
D: Piston mortar spraying pump (Spraying is not continuous)
E: Extrusion type mortar spraying pump (Spraying is not continuous. But it is very easy to clean.)
When mixing mortar in the first floor and spray in high floors, high quality mortar spray machine can be choosed
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD34000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Thank you for your time and Welcome to visit our factory!!!
