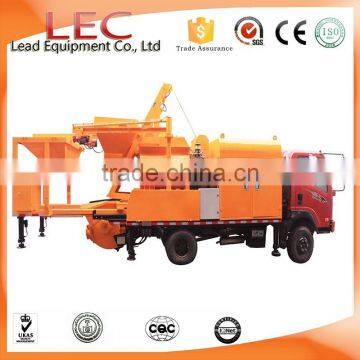

LJBC40 L1 40m3/h capacity diesel concrete pump with mixer
- 15 Set / Sets per Month
- Shanghai Qingdao Tianjin or as per your request
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Power Type: | Diesel | Place of Origin: | Henan, China |
Brand Name: | LEC | Model Number: | LJBC40 L1 | Power(W): | 100000 |
Weight: | 5300kg | Dimension(L*W*H): | 7300*2100*2500mm | Certification: | CE,ISO certification |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
LJBC40 L1 40m3/h capacity diesel concrete pump with mixer
diesel concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process. The chassis is optional.
Push-pull type design, improve equipment stability.
Hydraulic leg, easy to operate.
Technical parameters of diesel concrete pump with mixer
Parameters | LJBC40 L1 |
The maximum theoretical delivery output | 40 m3/h |
The maximum theoretical mix output | 18 m3/h |
Main oil pump | Kawasaki 112 |
Mixer model | Forced mixer 350 |
Main motor | 37kw |
Delivery cylinder * stroke | 200*1000mm |
Distribution valve type | S valve |
Valve block | Domestic |
Master cylinder size | 100*70*800 |
Hydraulic system | Open system |
Hopper volume * feeding height | 800*1200mm |
Vertical pumping distance | 70m |
Horizontal pumping distance | 300m |
Electrical components | Domestic |
Motor voltage | 380V, 50Hz 3phase |
Generator | Weichai 100KW |
Glasses plates and cutting ring | Alloy |
Hydraulic leg | 4 pieces |
Telescopic rail | / |
Cement boom | 2 pieces |
Discharge pressure | 8Mpa |
Lift motor | 5.5kw |
Stirring motor | 15kw |
Discharging mouth diameter | 200mm |
aggregate size | Cobblestone 40mm Gravel 30mm |
Weight | 5300kg |
Dimension | 7300*2100*2500 |
Main Features of diesel concrete pump with mixer
Mixer and pump in one machine.
Transfer concrete through pipeline. It is fast and safe.
It has small size and suitable for more special environment.
Optional part: cement boom, wireless remote control. This is easy to operate.
Application of diesel concrete pump with mixer
Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.
Technical advantages of diesel concrete pump with mixer :
1. Set mixing and pumping in one, allowing users to more easily efficient construction.
2. A large mixing capacity, mixing good effect.
3. Integrated design, small footprint devices, moving flexibility.
4. The electrical system uses computer-controlled, stable and reliable performance, high degree of automation.
5. Lubrication system uses computer control, less fuel consumption, low cost, high degree of automation.
6. Advanced swing cylinder, thrust increased by 50%, the S pipe swing fast, reliable scape for fine aggregate concrete is more extensive.
7. All pumps are provided with a suction filter, and set up a return filter 10μm, to ensure the cleanliness of the hydraulic fluid from the fundamental to ensure the long-term stability of hydraulic components, reducing user costs.
8. The main variable piston pump using full use of the motor power, the system pressure is high.
9. Glasses plates and cutting rings carbide, wear and long life.
Package of diesel concrete pump with mixer :
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for oncrete mixer pump
Usage of diesel concrete pump with mixer
Our Advantages and services for diesel concrete pump with mixer
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely
Q1: What's the form of distribution valve for truck mounted concrete pump ?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 20CBM/hour to 80CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
During-sale service for truck mounted concrete pump :
1. Acceptance of the product
2. Assist client product construction scheme
After sale service
1. Spare parts will be delivered as you need.
2. Engineers will go to clients’ site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;
Concrete Pump
Mortar Pump
Concrete Mixer
Placing booms
For more information about diesel concrete pump with mixer , please feel free to contact us.
