LEC Prestressing Tendon Post Tension Construction Multiholes Anchor

Specifications

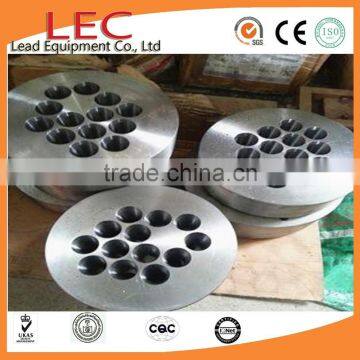

Anchor head and wedges

1.Models: LYM15(15.24MM), LYM15(15.7MM),  LYM13(12.7MM), LYM9(9.52M), LYM10(10.8MM), LYM22(22.6mm), ect.

2. Types: Stress End or Dead(fixed) End

3. Three options of customers usually oder:

A: Complete sets:  Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring

B: Three sets:        Anchor Head(Ring)+ Wedges+ Anchor Plates

C: Two sets:         Anchor Head(Ring)+ Wedges

4. Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.

5. Professional services: 1x7 days 24 hours service online, and engineer can service oversea

6. Samples: We are free to provide you sample for your test

A: Please tell me how many holes anchor do you need?

B: What is your required diameter for pc strand you use?

Our Advantages:

We supply full complete set anchor system and equipment for construction, please see following:

A:  Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

B:  Multi strand anchor system:   9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm  anchors for pc strand.

 Flat anchor system

C:   Steel rear anchor system:     16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

D: Equipement: hydraulic jack, oiln pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.

E: Building materials:   unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.

PC Strand:

Corrugated Pipes(Ducts)

Anchorage system assembly

LYM anchorage system is consists of stressing-end anchorage, fixed-end anchorage, couple and corrugated pipe.

It can be divided into LYM15, LYM13, LYM10,LYM11,LYM18, LYM22, LBM15,LBM13 type anchorage, the anchorage system has the following features:

1. LYM15 applies to 15.2/15.24mm, 15.7mm pc strand.

2. LYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.

3. LYM10 applies to 9.3mm, 9.53mm pc strand.

4. LYM11 applies to 10.8mm pc strand.

5. LYM18 applies to 17.8mm pc strand.

6.  LYM22 applies to 21.6/21.8mm pc strand.

The number of strand can be selected from 1~55 tendons and can be added per design requirements.

 Technical data for anchor system

Our factory

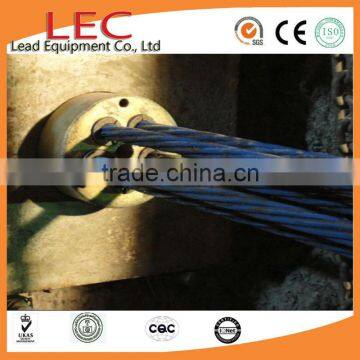

PT and Pre-stress worksite:

1. How many holes anchor do you need?

2. Do you need stress end anchor or dead(fixed) end anhcor?

3. what is your required dimater for pc strand you use?
