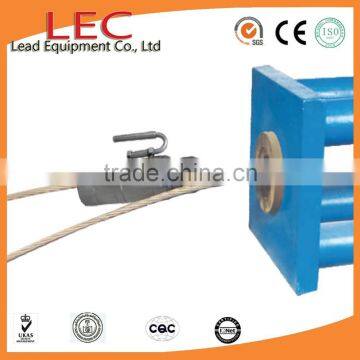

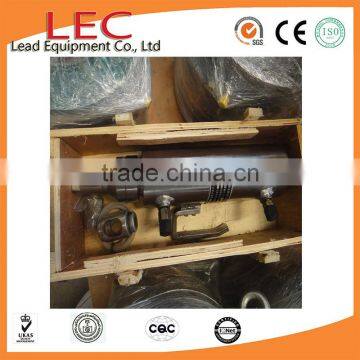

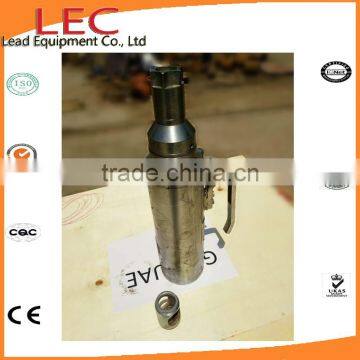

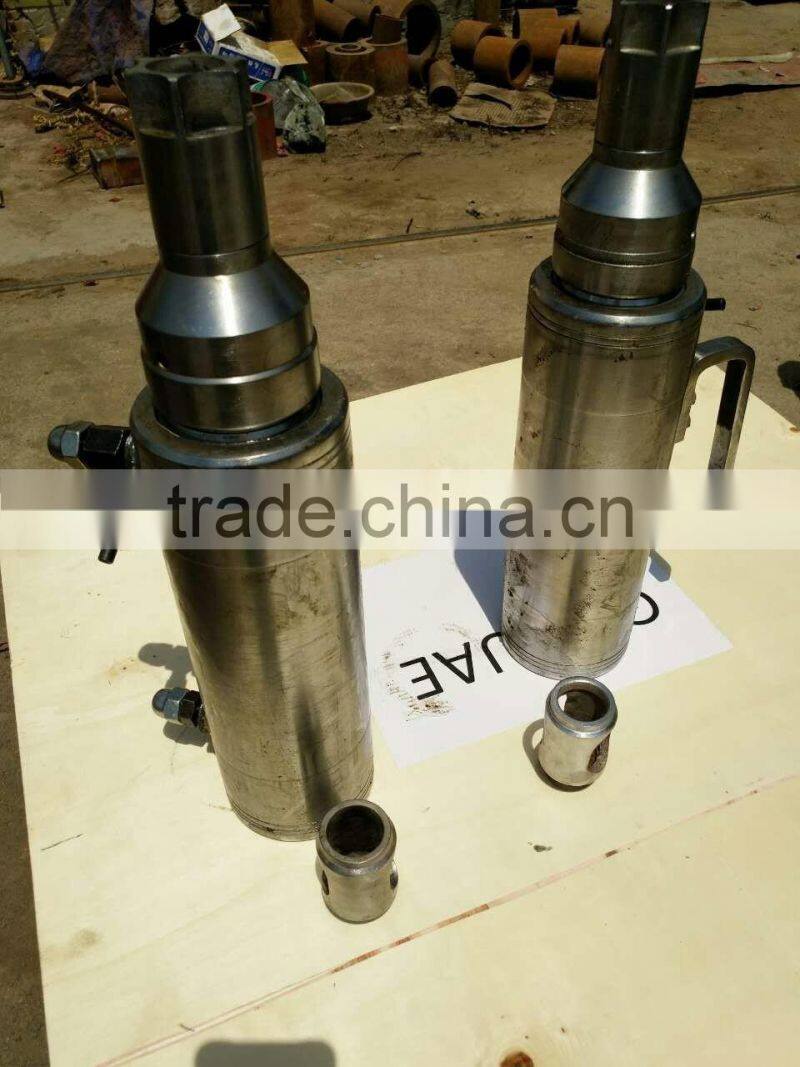

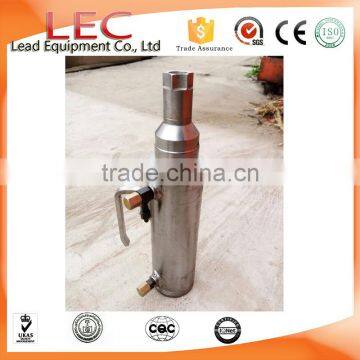

LEC Post Tension Mono Strand Hydraulic Jack

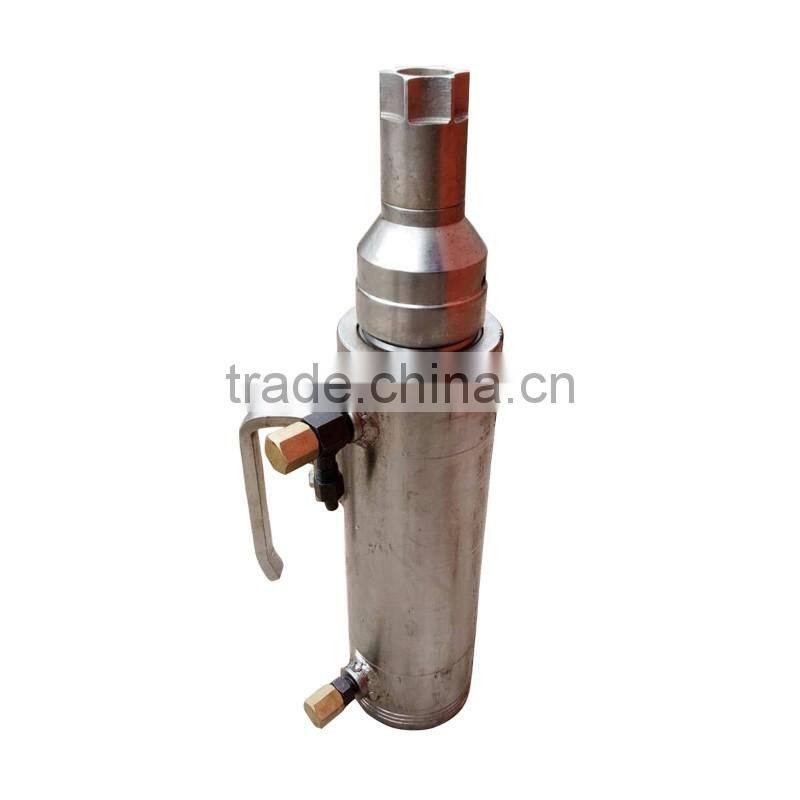

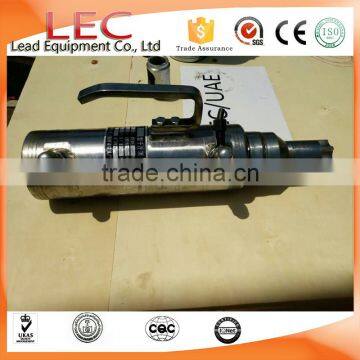

1. QYC front-end fixed jacks have internal re-usable anchor which can automatically clamp and loosen the wedge.
2. They are mainly used for LYM15 and LYM13- type various single tensioning with bonded and unbonded prestressed cable.
3. Notice: QYC type front-end fixed jacks could be matched with different size, length of the top cover, retreat anchor device, to be used in the experiment by root tension pre-tightening, tension retreat anchor and stay cable tone with single cable.
2. Features:
1. Using the new seals, to synchronous strengthen the seal-ability under great pressure.
2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process.
So the life of seals and sealing performance can be improved about 20%.
3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback cylinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved
the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen.
So enormously reduce the possibility of mechanical damage due to improper operation.
3. Matched Oil Pump: 50Mpa, 63Mpa Electric Oil Pump
4. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
5. Features: it can tension the followings PC Strand and Stel Rebar
A It can tension standard pc strand diameter 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B It can tension non-standard pc strands diameter 8.0mm, 9.52mmn, 10.8mm, 12.9mm. 17.8, 21.6, 21.8mm, ect.
C It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar
6. Warranty Time: One Year, we will send you Repair Kits if you need any time.
Technical parameter of mono strand hydraulic jack
Parameter table of QYC front-end fixed jack | ||||||||||
Model | Tensione force | Diameter of central | Area of stressing cylinder | Stroke | Rated oil pressure | Dimension | Minimum working space | The reserved length of strand | ||
KN | mm | mm² | mm | Mpa | out diameter (mm) | length (mm) | L | E | mm | |
QYC70 | 74 | 10 | 1437 | 150 | 50 | 63 | 296 | 616 | 54 | 120 |
QYC240 | 240 | 18 | 4009 | 200 | 60 | 102 | 425 | 825 | 86.7 | 200 |
QYC270 | 270 | 18 | 4415 | 200 | 61 | 105 | 427 | 827 | 89 | 200 |
QYC1100 | 1100 | 22619 | 200 | 49 | 265 | 336 | ||||
QYC2000 | 2000 | 42332 | 200 | 48 | 355 | 386 | ||||

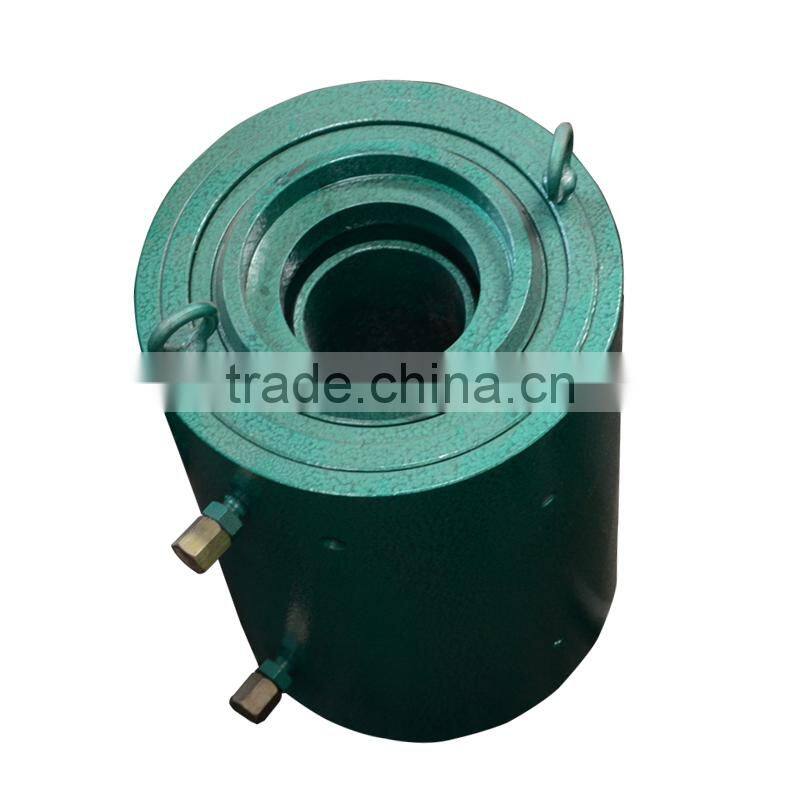

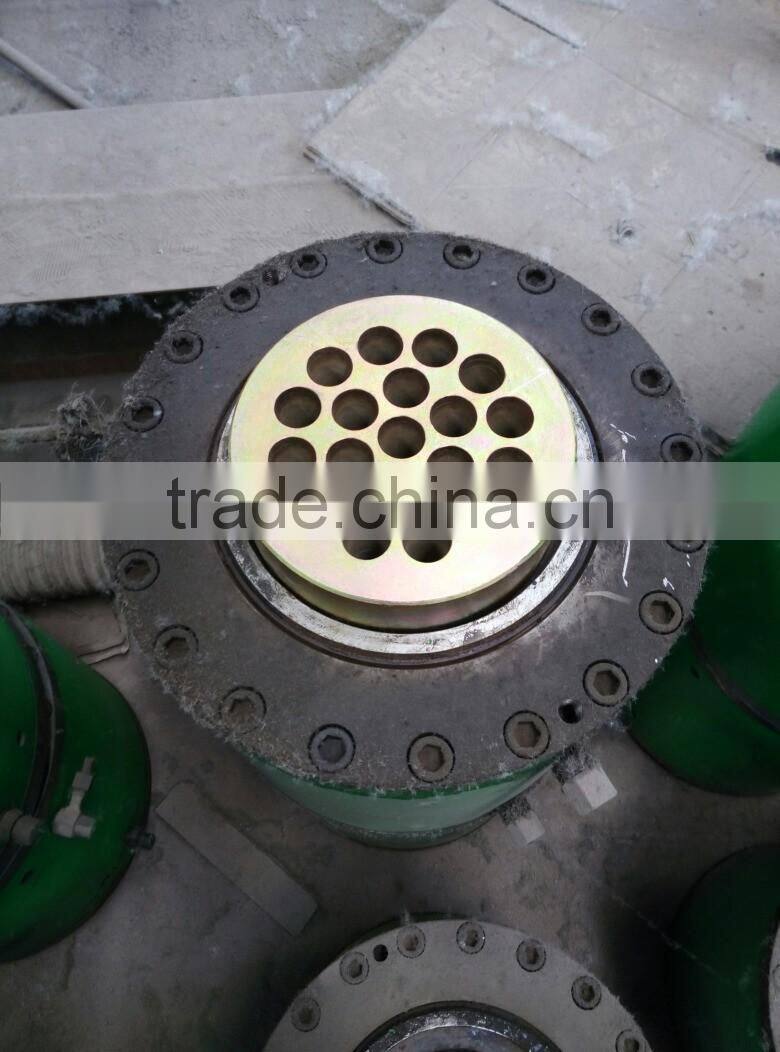

YDC hollow hydraulic jack:
| Types of YDC | Tension Force | Pulling Stroke | operating oil pressure | Tensioning cylinder area | center hole diameter | Dimensions | E(mm) | D(mm) | K(mm) | L(mm) |
| YDC650 | 650 | 200 | 50 | 13745 | Φ63.5 | Φ180×330 | 120 | 700 | 1350 | |
| YDC1100 | 1100 | 200 | 60 | 20498 | Φ80 | Φ225×330 | 150 | 230 | 700 | 1350 |
| YDC1500 | 1500 | 200 | 53 | 30222 | Φ94 | Φ270×330 | 170 | 280 | 780 | 1420 |
| YDC2000 | 2000 | 200 | 59 | 39760 | Φ110 | Φ295×330 | 190 | 324 | 780 | 1490 |
| YDC2500 | 2500 | 200 | 60 | 50579 | Φ122 | Φ325×330 | 200 | 360 | 780 | 1490 |
| YDC3000 | 3000 | 200 | 50 | 60082 | Φ153 | Φ400×525 | 230 | 400 | 780 | 1500 |
| YDC3500 | 3500 | 200 | 50 | 69331 | Φ157 | Φ420×525 | 240 | 420 | 780 | 1510 |
| YDC4000 | 4000 | 200 | 52 | 79128 | Φ160 | Φ446×580 | 250 | 446 | 780 | 1510 |
| YDC4500 | 4500 | 200 | 50 | 90981 | Φ180 | Φ480×600 | 270 | 480 | 800 | 1510 |
| YDC5500 | 5500 | 200 | 50 | 113747 | Φ210 | Φ540×630 | 290 | 540 | 850 | 1570 |
| YDC6500 | 6500 | 200 | 50 | 134706 | Φ240 | Φ580×680 | 310 | 580 | 850 | 1570 |
| YDC8000 | 8000 | 200 | 50 | 159043 | Φ240 | Φ640×730 | 340 | 640 | 860 | 1580 |
| YDC10000 | 10000 | 200 | 50 | 202318 | Φ280 | Φ720×850 | 380 | 720 | 870 | 1590 |
| YDC12000 | 12000 | 200 | 50 | 231299 | Φ280 | Φ750×900 | 400 | 750 | 880 | 1600 |
Notice: The tension journey(stroke) and capacity(tons) of this type jack can be customized according to your requirement.
Our Advantages:

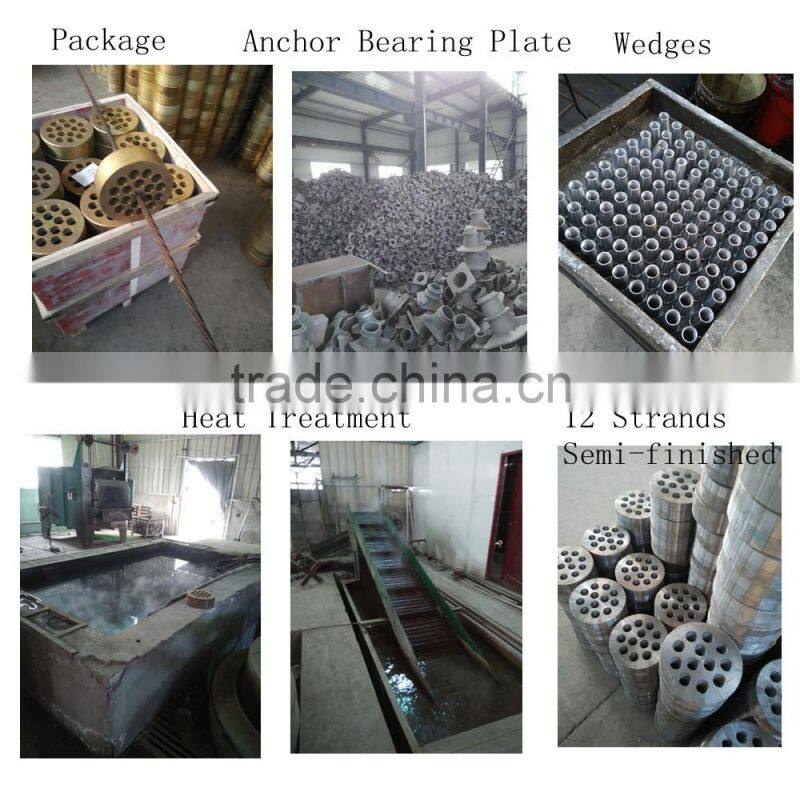

We supply full complete set anchor system and equipment for construction, please see following:

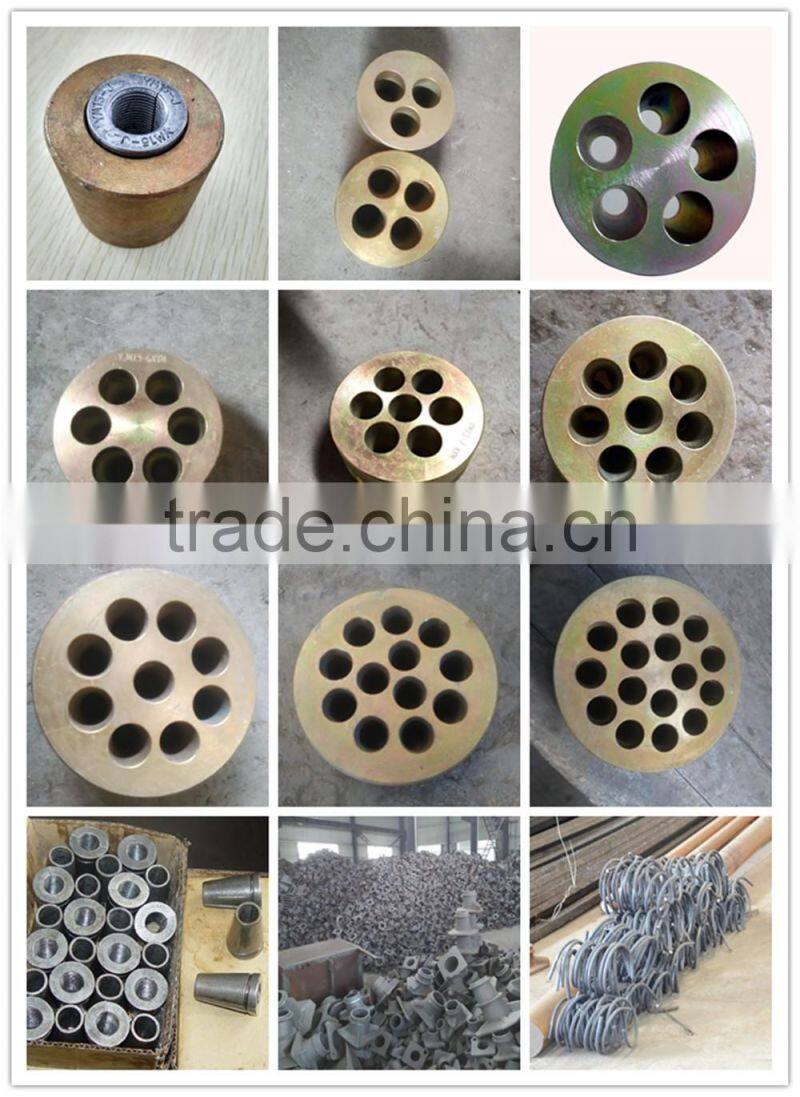

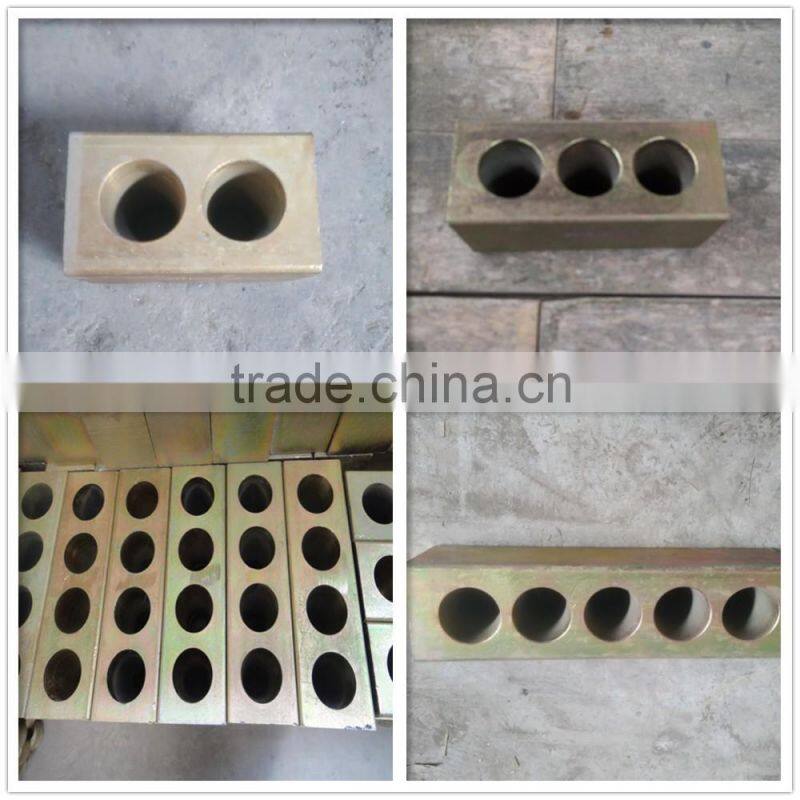

A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
PC strands pusher machine:

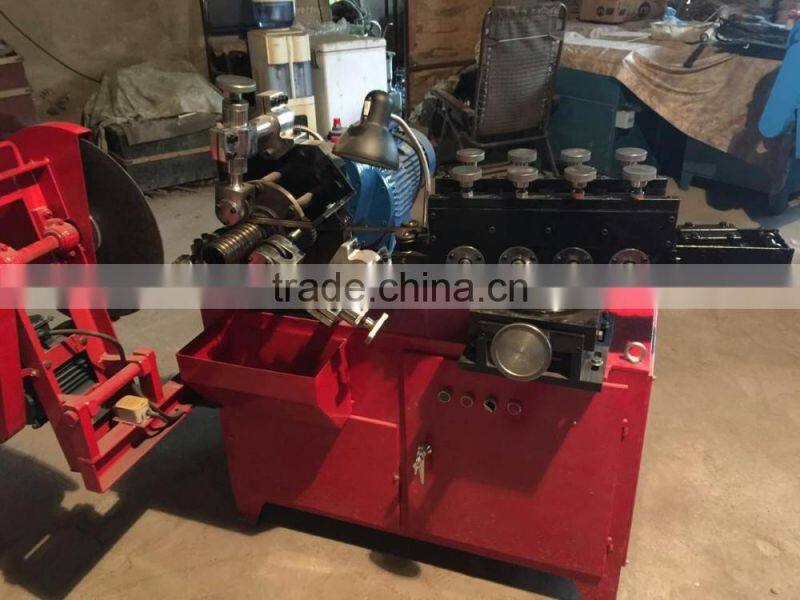

Metal corrugated duct making machine:
Grout pump:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Please let me know yor detail information as followings:
1. What is your required maximum capacity(tons) and stroke(tension journey)?
2. How many numbers of pc strands do you tension?
