Home > Products > Industiral pump > LH50-445C chain transmission type used in oil drilling project squeeze hose peristaltic pump
LH50-445C chain transmission type used in oil drilling project squeeze hose peristaltic pump
- 10000 Set / Sets per Month
- Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
- T/T L/C D/P D/A Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Henan, China | Brand Name: | LEC | Model Number: | LH50-445C |
| Theory: | Rotary Pump | Structure: | Other, hose pump | Usage: | Other, metering, sewage, construction, water treatment, etc. |
| Power: | Other, Electric, 5.5 KW | Standard or Nonstandard: | Standard | Fuel: | Other, customized |
| Pressure: | Low Pressure | Application: | Sewage |
Product Description

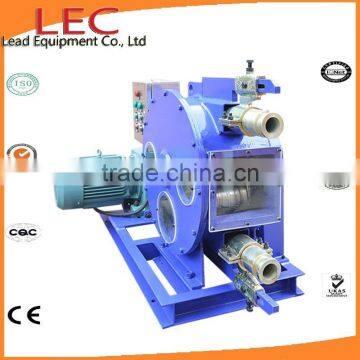

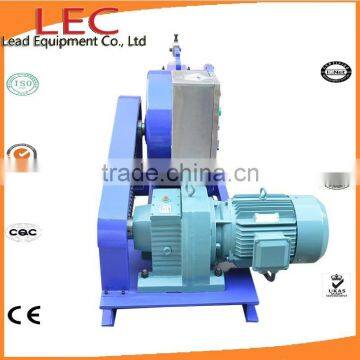

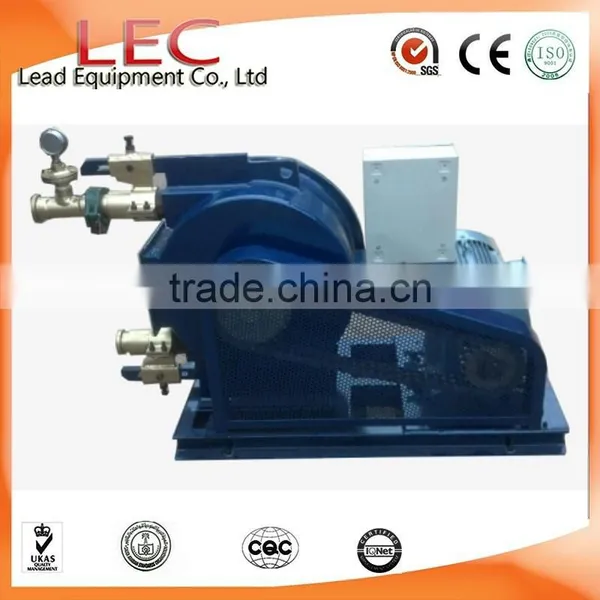

LH50-445C chain transmission type used in oil drilling project squeeze hose peristaltic pump
OEM supplier LH series different output industrial hose peristaltic squeeze pump consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
LH series industrial peristaltic squeeze pump head are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Leadcrete Tube
High quality precision made hose pump tube, using the very highest quality compounded rubber materials on the market, re-enforce with multi-layers of braided nylon & a manufacturing process that ensures precise and constant dimensional tolerances at every point to the entire length of the hose.
This high level of attention provides a finished hose product that delivers very high life & outstanding performance.
OEM supplier LH series different output industrial hose peristaltic squeeze pump Advantages:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
LH50-445C chain transmission type used in oil drilling project squeeze hose peristaltic pump
LH50-445C Peristaltic Pump Specification (customized):
Type | LH50-445C |
Max. ouput | 3.7m3/h |
Rotation | 30 RPM |
Squeeze hose ID | 50mm |
Working pressure | 30 bar |
Voltage | 3 phase, 380V, 50HZ |
Power | 5.5 KW |
More options:
Why choose us ?
1. We are China's leading squeeze pump manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
OEM supplier LH series different output industrial hose peristaltic squeeze pump Package:
Factory:
Certification of our company
Application
OEM supplier LH series different output industrial hose peristaltic squeeze pump can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
Our squeeze hose peristaltic pump are used in oil drilling project
LCP20H-E hose type concrete pump video application:
FAQ:
1. Q: Which model should we choose?
A: Before suitable model and design recommended, please tell us some information: application, material you process, output and pressure you want.
2. Q: Can we have customized pump?
A: You can choose the gearbox type, installation way, squeeze hose type, drive mode type, connecotor type, etc.
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
Contact Us
- Zhengzhou Lead Equipment Co., Ltd.
- Contact nameNancy Liu
- Phone86-371-63902781
- AddressXisihuan Ring-road East, Tielu, Xushui Town, Zhongyuan District, Zhengzhou Zhengzhou,Henan
-
