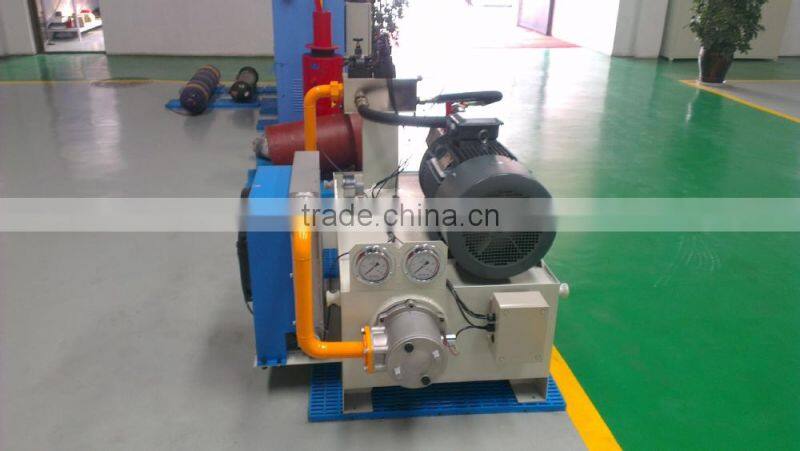

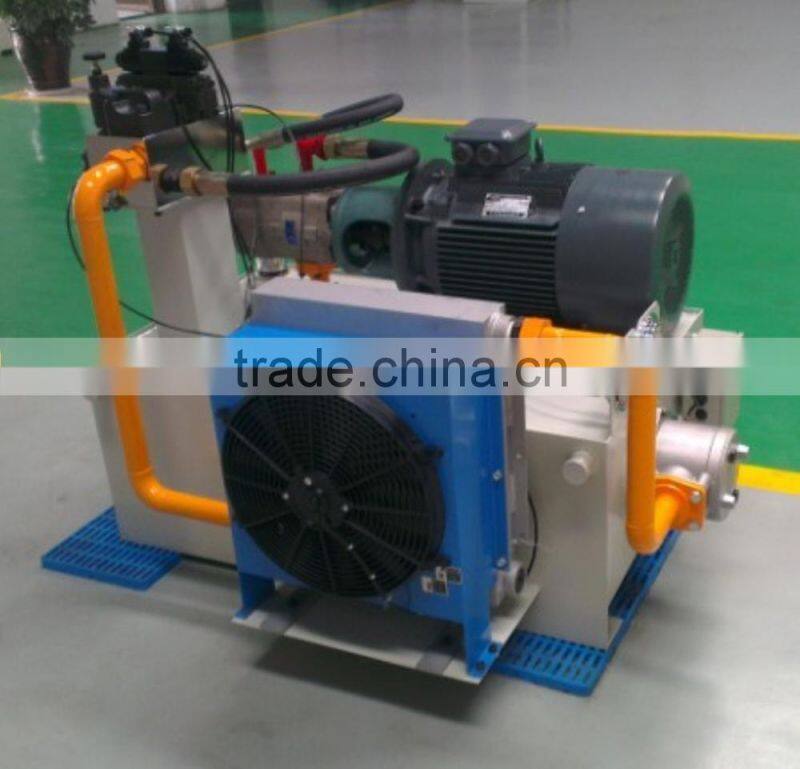

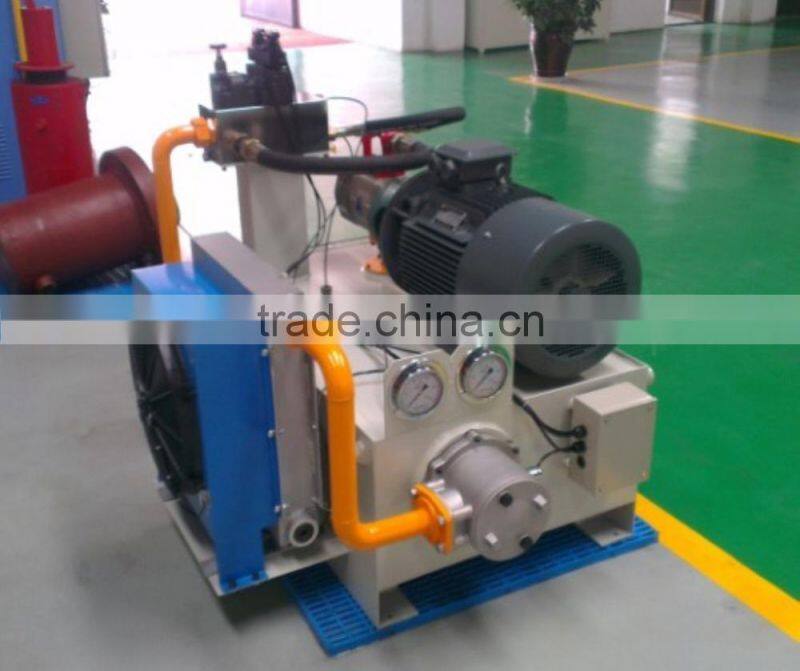

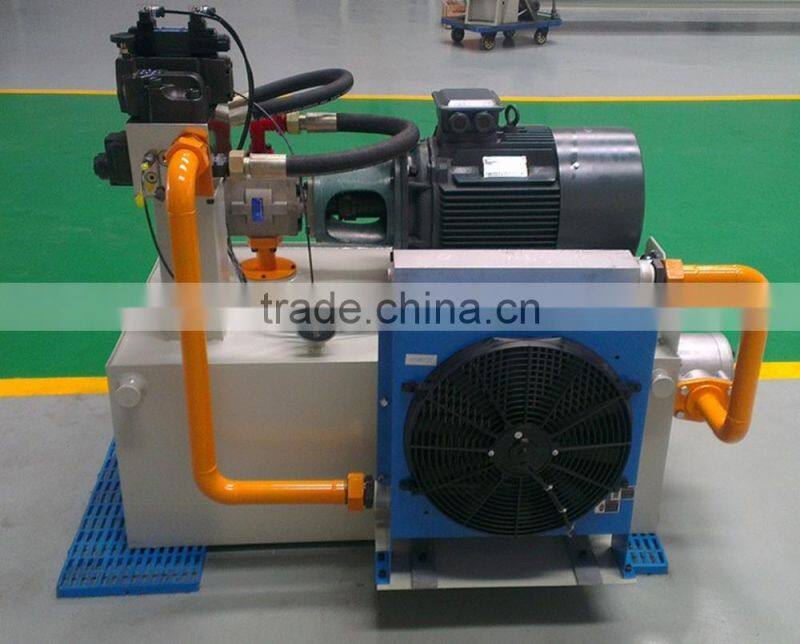

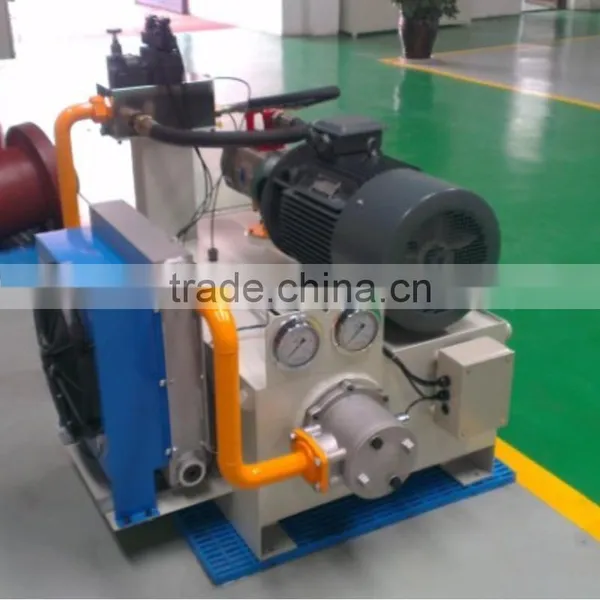

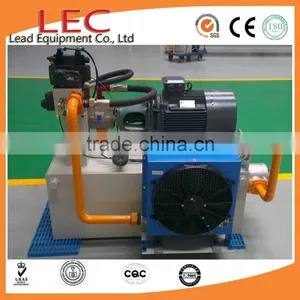

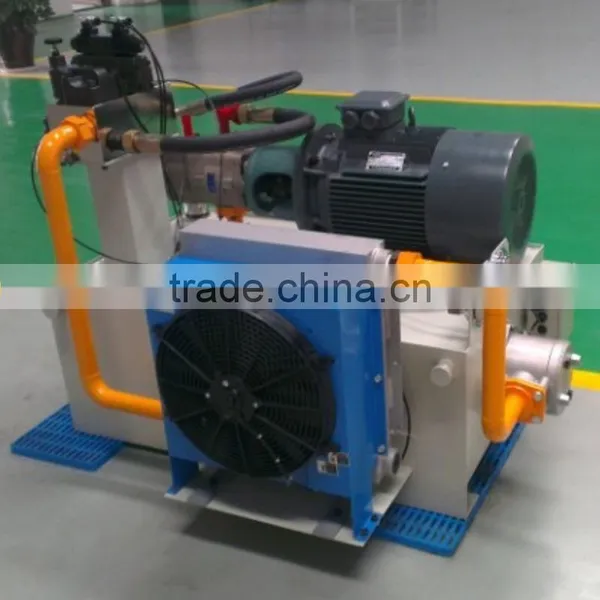

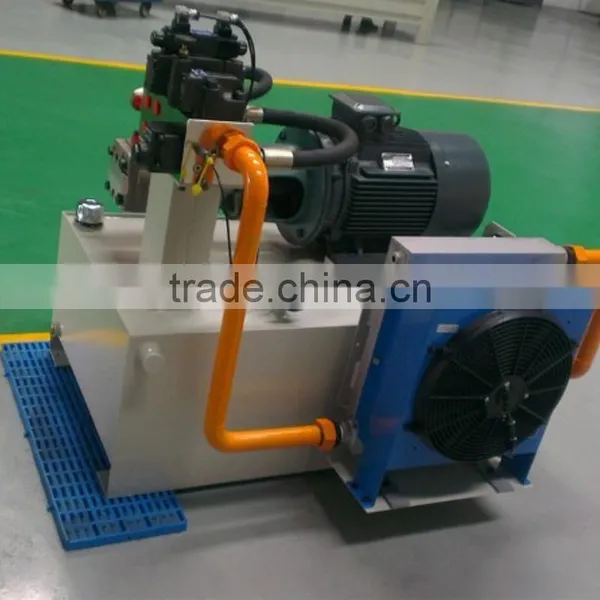

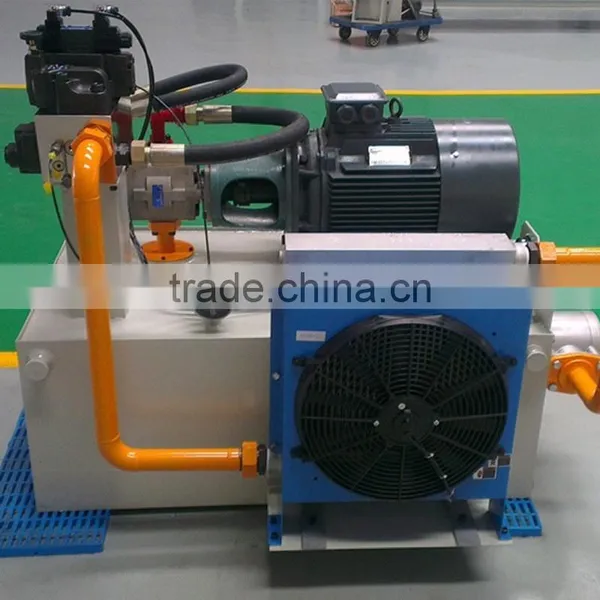

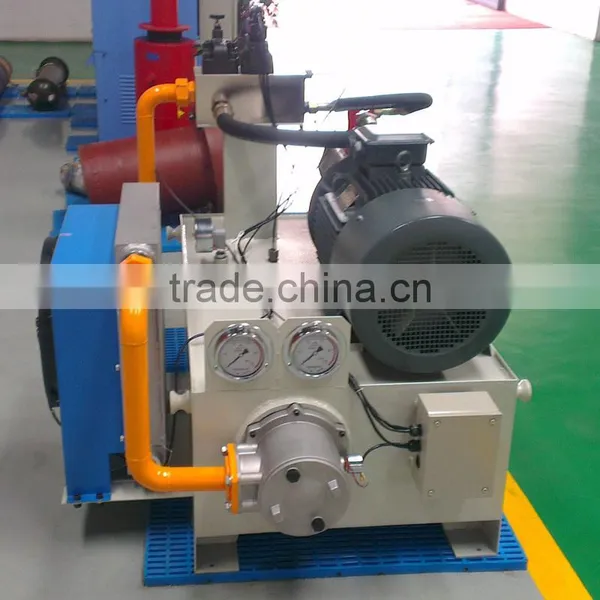

OEM China manufacturer small electric hydraulic power pack unit
We are a professional manufactuer of hydraulic power pack in China, we can manufactuer electric/diesel/gasoline engine hydraulic power pack, and double acting hydraulic power pack,etc. as per customers'requirement.
Feature of small hydraulic power pack:
1. Siemens electric motor
2. Stepless variable output, general type, widely used
3. Compact structure and small volume.
OEM China manufacturer small electric hydraulic power pack unit
Type |
LHPP16/50-18.5E |
Rated Pressure |
16MPa |
Output |
50L/min |
Electric power |
18.5kw |
Oil tank |
200 L |
Directional Valve |
DC24V,Solenoid operated(Yuken) |
Weight |
450KG |
We also could according to your demands to design suitable type for you | |
Package:

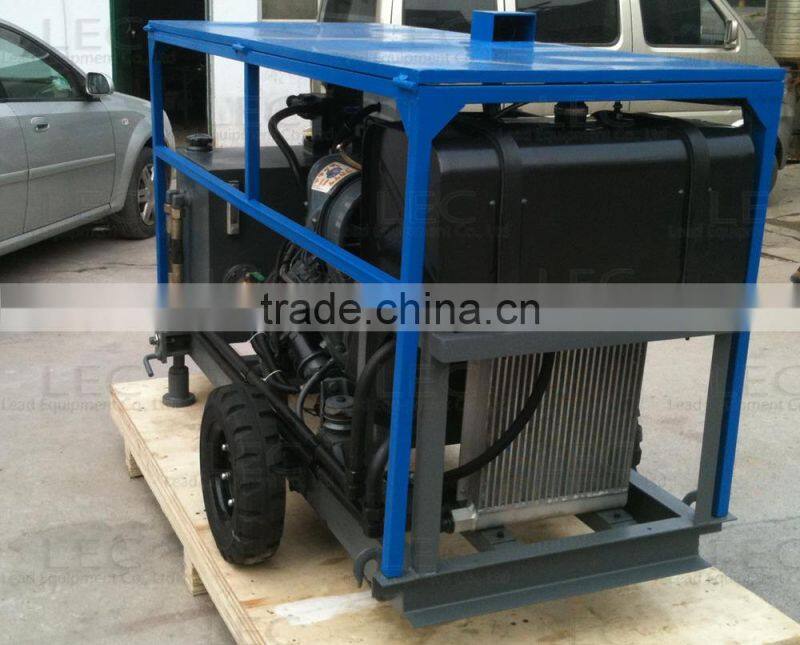

LHPP13/ 50-14D diesel hydraulic power pack
Type |
LHPP13/50-14D |
Rated work pressure |
13MPa |
Rated output |
50 L/min. |
Rated Diesel Rev. |
1500 rpm |
Diesel Power |
14Kw/19Hp |
Diesel Model |
Deutz Series F2L with air cooling |
Overall Dimension |
2300x1040x1200mm |
Weight |
530Kgs |
|
We also could according to your demands to customize
| |

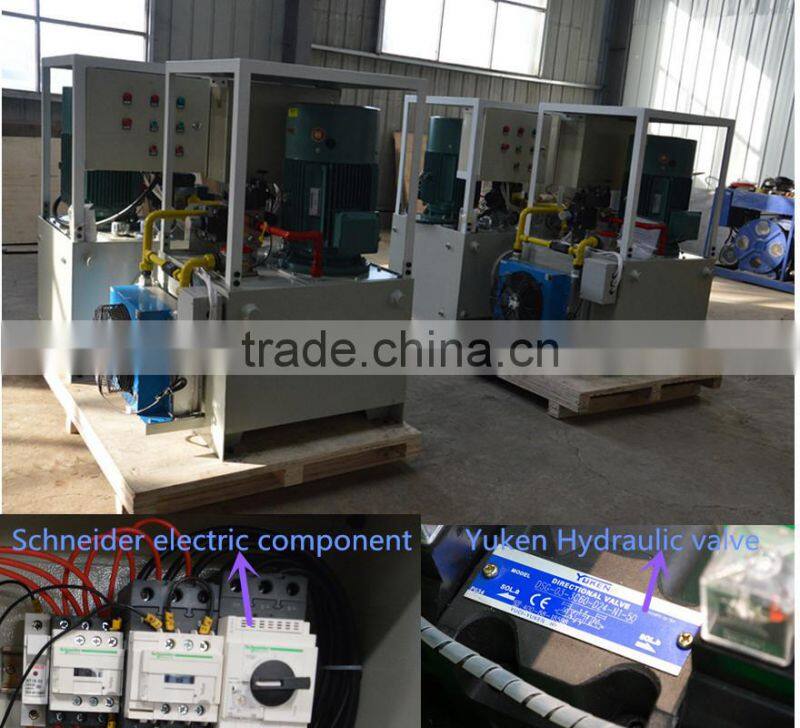

LHPP20/30-15E electric hydraulic power pack
Type |
LHPP20/30-15E |
Rated Pressure |
20MPa |
Output |
0-30L/min |
Electric power |
15kw, 3 phase, 380V, 50Hz Siemens motor |
Oil tank |
150 L |
Directional Valve |
DC24V,Solenoid operated(Yuken) |
Dimension(L*W*H) |
1100x750x1250mm |
Weight |
390KG |
We also could according to your demands to design suitable type for you | |

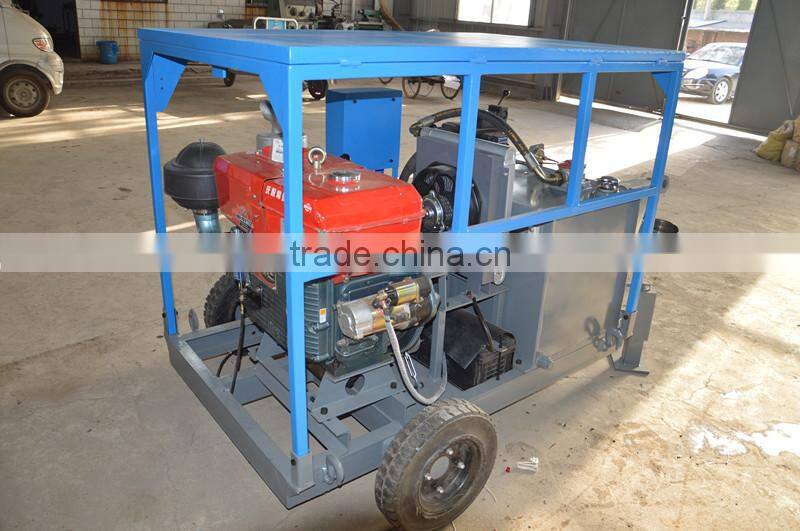

LHPP14 / 68-22D diesel hydraulic power pack
Model |
LHPP14/68 -22D |
Rated work pressure |
14MPa |
Rated output |
68L(18gallon)/min |
Rated Diesel Rev. |
2200 rpm |
Diesel Power |
22Kw/30Hp |
Diesel Model |
Changchai with water cooling(Steam type) |
Overall Dimension |
1750x1300x1500mm |
Weight |
550Kgs |

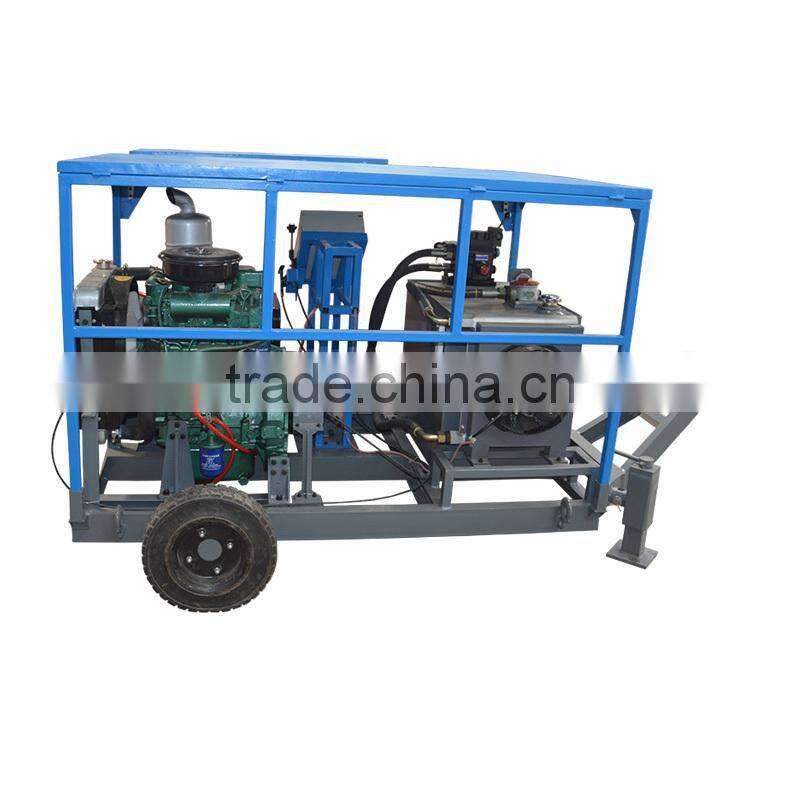

LHPP14 / 68-30D diesel hydraulic power pack
Model |
LHPP14/68-30D |
Rated work pressure |
14MPa |
Rated output |
68L(18gallon)/min |
Rated Diesel Rev. |
2600rpm |
Diesel Power |
30Kw/40Hp |
Diesel Model |
Changchai with water cooling ( condensing type double cylinders) |
Overall Dimension |
2000x1450x1500mm |
Weight |
600Kgs |
We also could according to your demands to design suitable type for you | |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Why choose us ?
1. We are China's leading small hydraulic power unit manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.

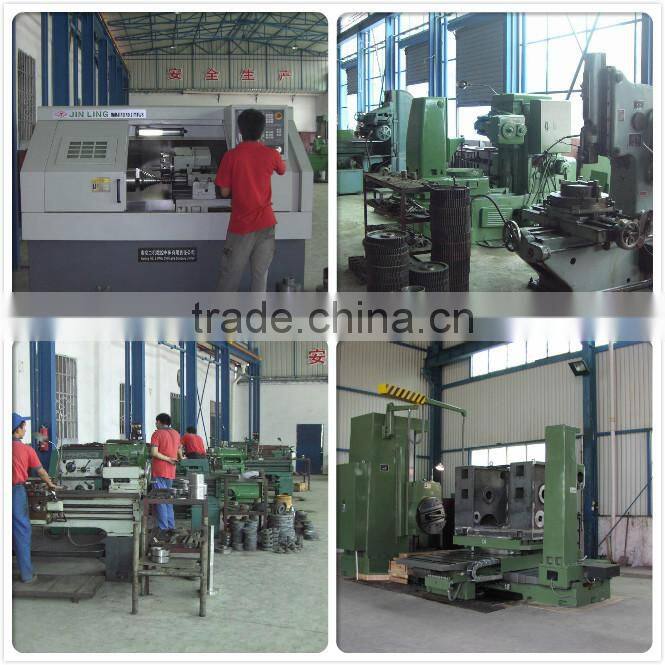

Our factory
Certifications our company
We are a professional manufacturer of hydraulic power pack, and we could design the general type hydraulic power unit as per your requirement, please help us to clear about your requirements:
1. what is the machine matched with hydraulic power pack?
2. what is output and pressure?
3. do you prefer diesel engine, electric motor or gasoline?
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
