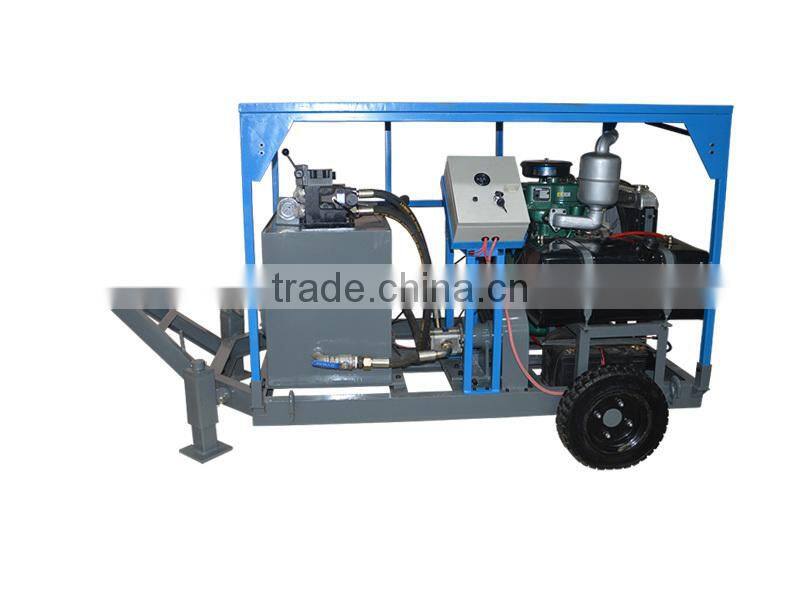

China Factory Customize Double acting diesel hydraulic power unit
General type China double acting diesel hydraulic power unit is used for driving hydraulic cylinder, hydraulic motor and other hydraulic actuator.
Submersible power pack with motor on the top of power pack and pump inside the tank, thus get a compact structure
and small volume.
It’s widely used as hydraulic driving for engineering machinery, construction machinery and mining machinery.
We have diesel hydraulic power unit and electric hydraulic power pack for option.
Features of double acting diesel hydraulic power unit:
1. Powerful
2. Versatile
3. Stabile and Reliable
4. Suitable for rough work circumstance
Our double acting diesel hydraulic power unit has exported to USA, Qatar, Singapore,Malaysia,etc.many countries. and had good opreation condition in our customer worksite.
China Factory Customize Double acting diesel hydraulic power unit
Rated work pressure |
14MPa/2000PSI |
Rated output |
68L/min(18gallon/min) |
Rated Diesel Rev. |
2600rpm |
Diesel Power |
30Kw/40Hp |
|
Diesel Model
|
Changchai with water cooling |
Overall Dimension |
2000x1450x1500mm |
Weight |
600Kgs |
China Factory Customize Double acting diesel hydraulic power unit

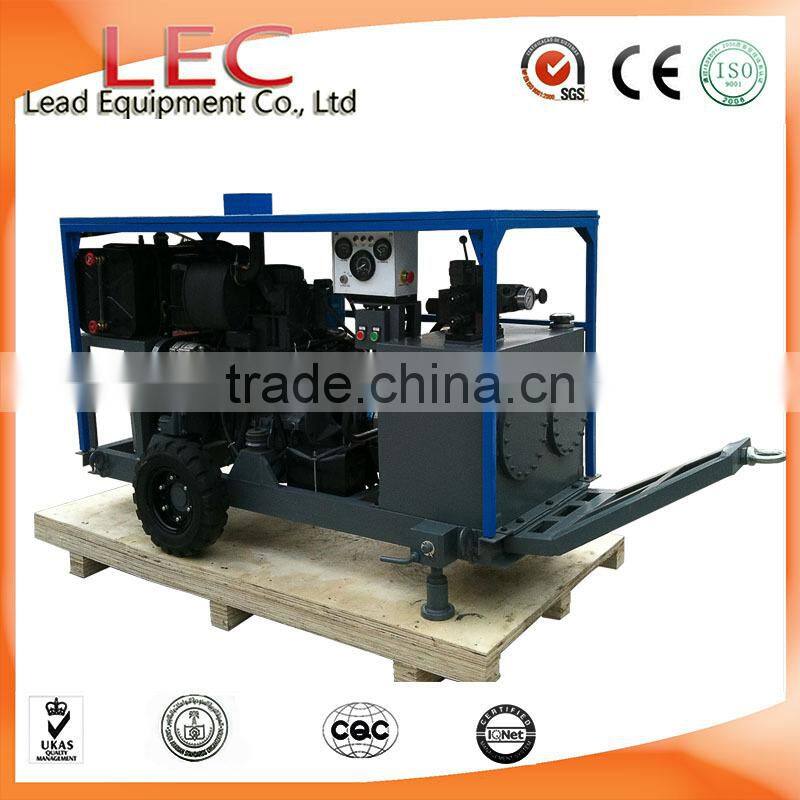

1. LHPP13/ 50-14D diesel hydraulic power unit
Features:
- Deutz series air cooling diesel engine;
- With Wheels, move easily;
- Suitable for rough work circumstance;
Type |
LHPP13/50-14D |
Rated work pressure |
13MPa |
Rated output |
50 L/min. |
Rated Diesel Rev. |
1500 rpm |
Diesel Power |
14Kw/19Hp |
Diesel Model |
Deutz Series F2L with air cooling |
Overall Dimension |
2300x1040x1200mm |
Weight |
530Kgs |
|
We also could according to your demands to customize
| |

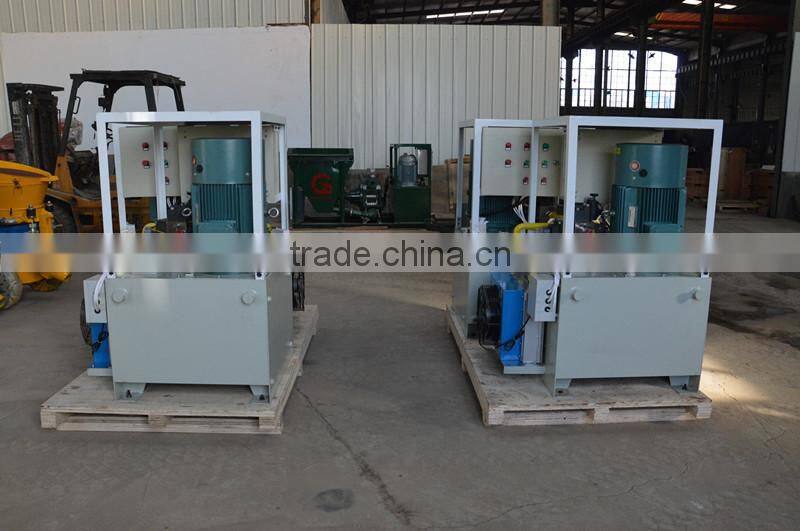

2. LHPP20/30-15E electric hydraulic power unit
Features:
- Siemens electric motor
- Stepless variable output, general type, widely used.
- Compact structure and small volume
Type |
LHPP20/30-15E |
Rated Pressure |
20MPa |
Output |
0-30L/min |
Electric power |
15kw, 3 phase, 380V, 50Hz Siemens motor |
Oil tank |
150 L |
Directional Valve |

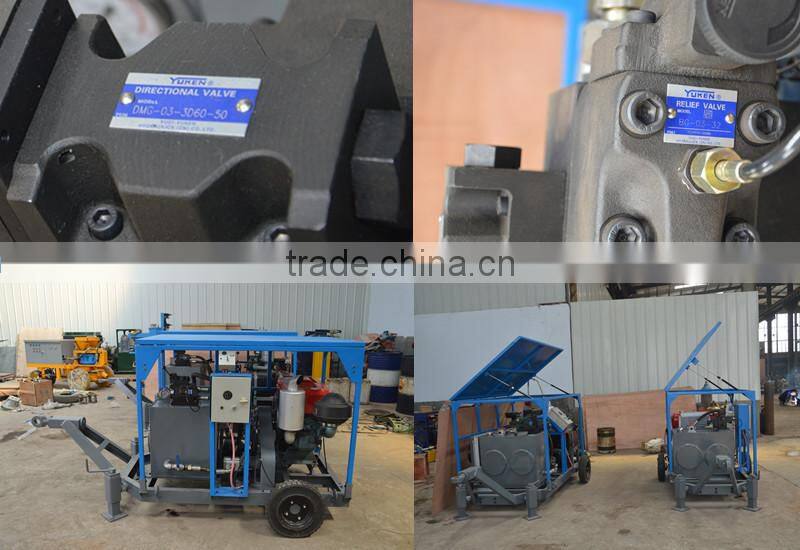

DC24V,Solenoid operated(Yuken) |
Dimension(L*W*H) |
1100x750x1250mm |
Weight |
390KG |
We also could according to your demands to design suitable type for you | |
3. LHPP16/50-18.5E electric hydraulic power unit
Features:
- Siemens electric motor
- Stepless variable output, general type, widely used.
- Compact structure and small volume
Type |
LHPP16/50-18.5E |
Rated Pressure |
16MPa |
Output |
50L/min |
Electric power |
18.5kw |
Oil tank |
200 L |
Directional Valve |
DC24V,Solenoid operated(Yuken) |
Weight |
450KG |
We also could according to your demands to design suitable type for you | |

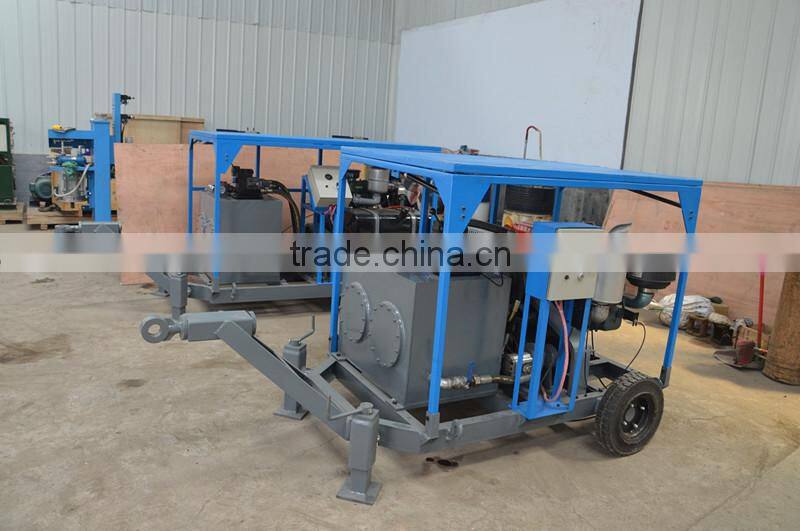

4. LHPP14 / 68-22D diesel hydraulic power unit
Features:
- Changchai steam type water cooling diesel engine
- With Wheels, move easily;
- Suitable for rough work circumstance;
Model |
LHPP14/68 -22D |
Rated work pressure |
14MPa |
Rated output |
68L(18gallon)/min |
Rated Diesel Rev. |
2200 rpm |
Diesel Power |
22Kw/30Hp |
Diesel Model |
Changchai with water cooling(Steam type) |
Overall Dimension |
1750x1300x1500mm |
Weight |
550Kgs |
China Factory Customize Double acting diesel hydraulic power unit
Why choose us ?
1. We are China's leading hydraulic power unit manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory
Certifications of our company:
We are a professional manufacturer of hydraulic power pack, and we could design the general type hydraulic power unit as per your requirement, please help us to clear about your requirements:
1. what is the machine matched with hydraulic power pack?
2. what is output and pressure?
3. do you prefer diesel engine, electric motor or gasoline?
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
