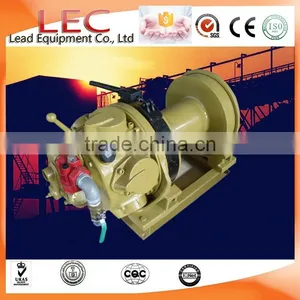

3 ton Explosion-proof Ingersoll rand Piston Air Pneumatic Winch
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription of 3 ton Air Tugger Winch:
This 3 ton air winch is powered by TMH15 piston air motor and remotely operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
Technical data of 3 ton Air Tugger Winch:
3 Ton Air Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
3 ton Made in China Mine and Construction used Anti-explosion Air Tugger Winch:
Air Motor used for 3 ton Air Tugger Winch:
Package:
Other air pneumatic winch we supply:
Factory:
Thank you for your time, welcome to contact us and visit our facory!
Website:
Skype ID:lee.mariah2
Line/Viber:+86-15565134632
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you:
1. What project will you do with about air winch?
2. Which kind of you need, we have hand operation and remote control air winch?
