Made in China Proof Explosion Gearbox Vane Air Pneumatic Motor for sale
- 1000 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
- Industrial 2/2.5/3 inches High Pressure Coanda Aluminum Alloy Air Knife
- Factory Customize Adjustable Drying Air Knife For Turbo Blower
- Drying And Cleaning System Aluminum Alloy Air Knife Outlet Width Adjustable Air Nozzle
- Aluminium alloy air compressed air knife for drying and blowing
- Aluminum Alloy Nozzle Compressed Air Drying Windjet Air Knife
- Aluminium alloy Low flow air knife for use with compressed air
Product Details
Place of Origin: | Henan, China | Brand Name: | LEC | Model Number: | WG02 |
Product Description

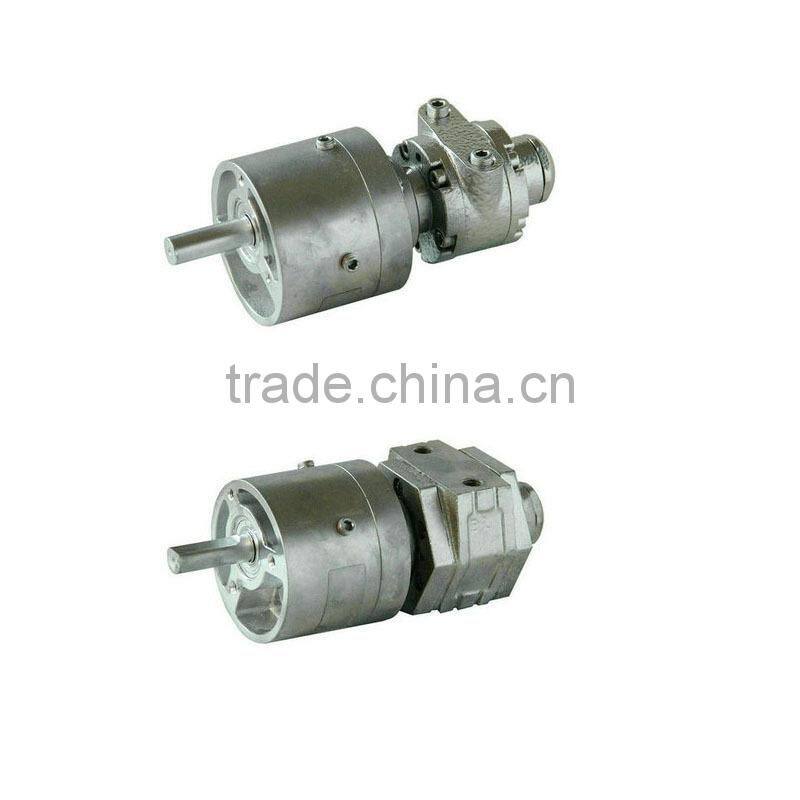

20:1 Blade Air Pneumatic Gear Motor for sale
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, petrochemical, volatile atmosphere, paper and other industries.
Vane air motor features:
1. Great for harsh environments: It does not build up heat or sparks make air motors ideal for use in flammable or explosive applications.
2. Intrinsically safe in hazardous environment, can work in humid, high temperatures, high dust and other proof working environment, for example: Mines , petrochemical ,volatile atmosphere, flammable or explosive applications.
3. These air motors can be coupled with gearboxes to increase torque and reduce speed.
4. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
5. Air motors can easily operate under conditions which are unfavorable electric, hydraulic, stepper and servo motors.
Applications:
Mixing equipment, Conveyor drives, Pump drives, Food packaging, Pharmaceutical packaging, Winches and hoist, Hose reels, Fiberglass choppers, Tension devices, Turntables, Oil and gas industry for air winches and Mining equipment…
Vane air motor technical data:
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

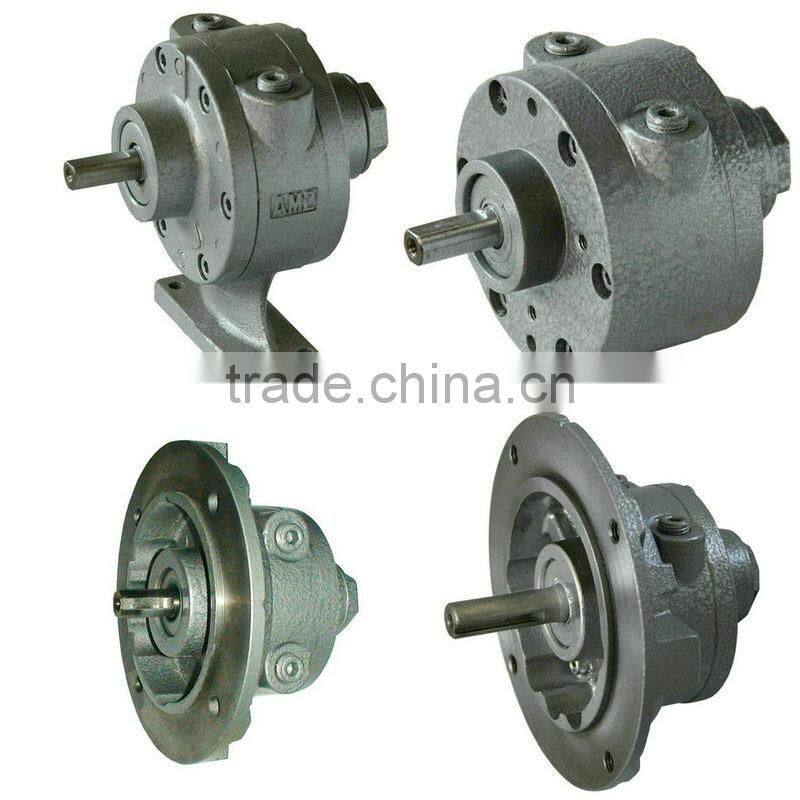

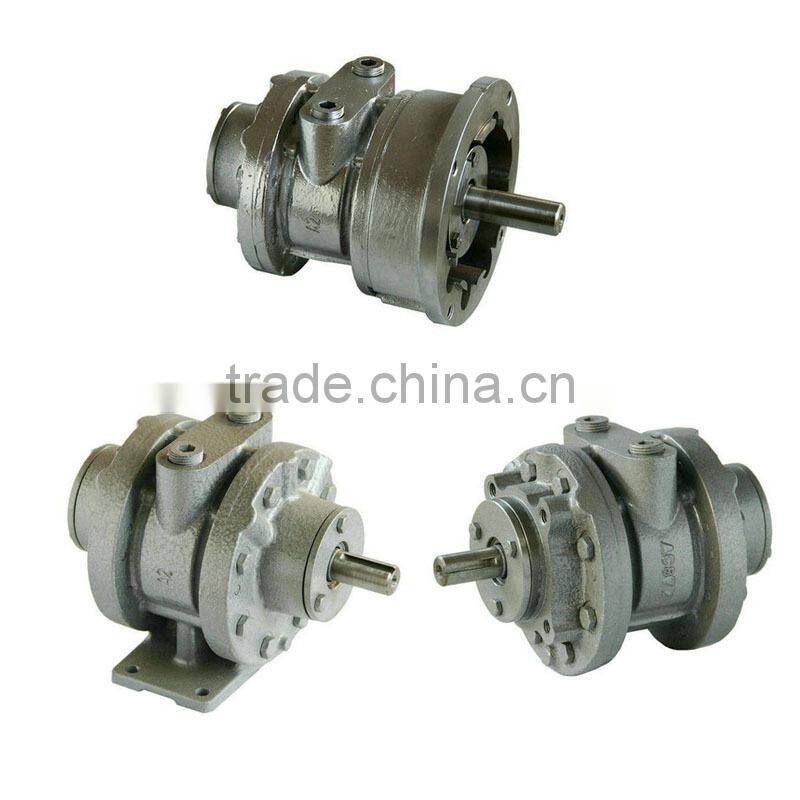

Other Model Vane Air Motor:
16AM Series Vane Air Motors:
8AM Series Vane Air Motors:
4AM Series Vane Air Motors:
2AM Series Vane Air Motors:
Oilless Vane Air Motors:

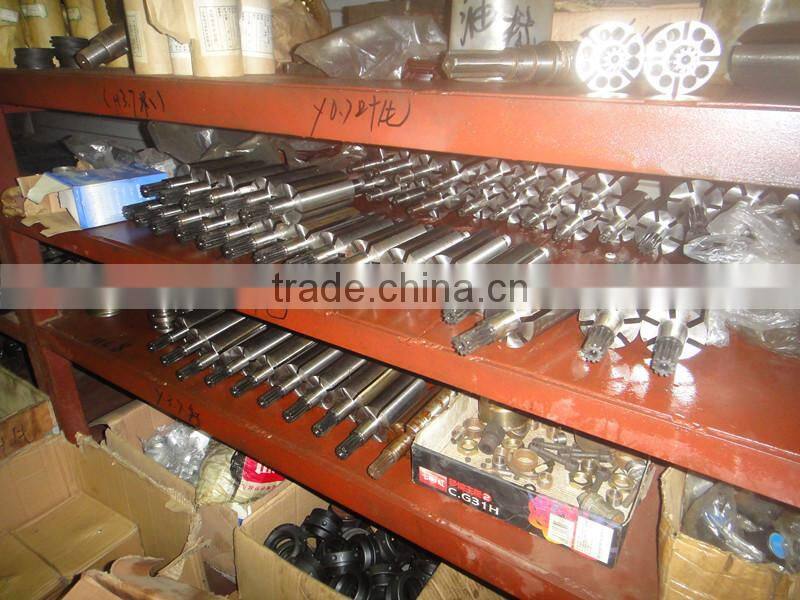

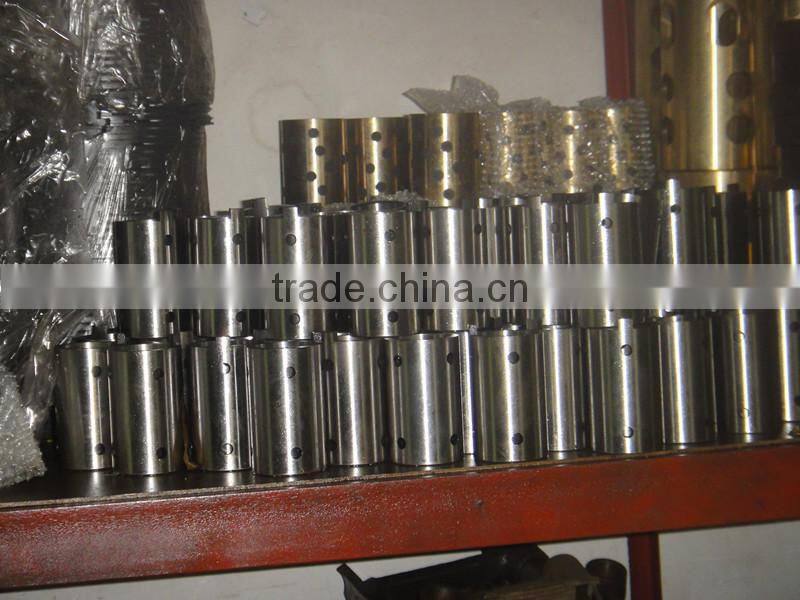

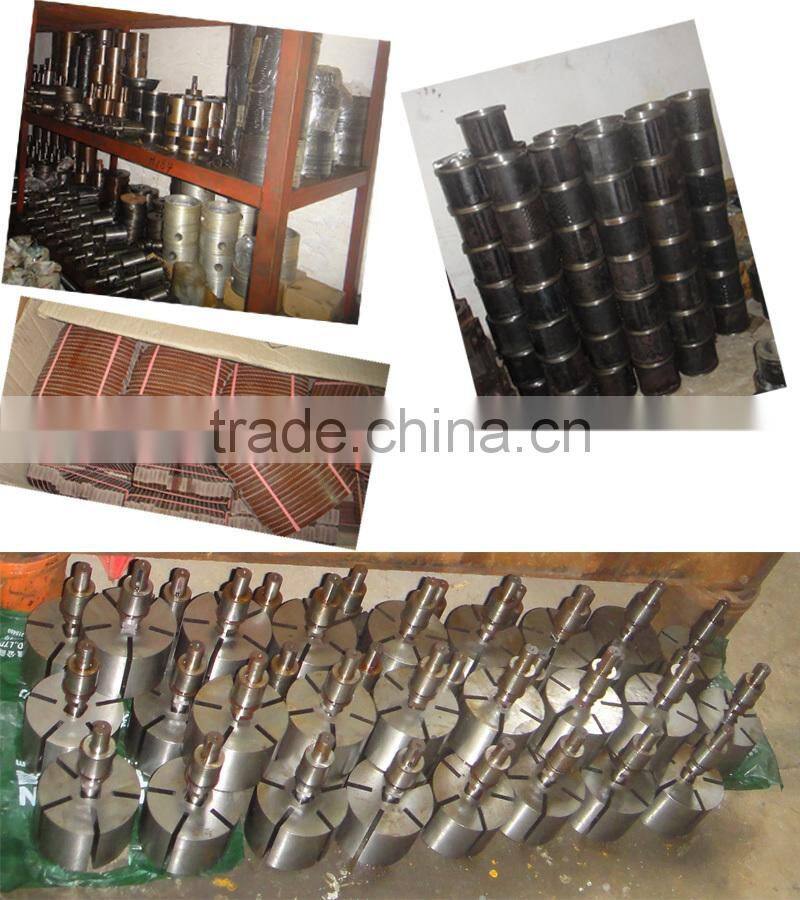

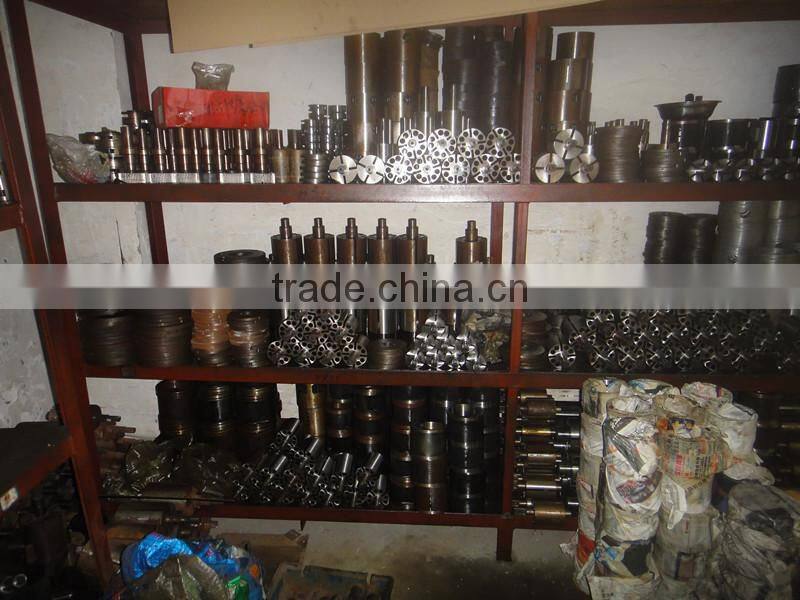

Vane Air Motor Accessories:
Package:
Thank you for your time, welcome to contact us and visit our facory!
Website:
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What machine used in ?
2. How much is the power, torque and speed you need?
Contact Us
- Zhengzhou Lead Equipment Co., Ltd.
- Contact nameNancy Liu
- Phone86-371-63902781
- AddressXisihuan Ring-road East, Tielu, Xushui Town, Zhongyuan District, Zhengzhou Zhengzhou,Henan
