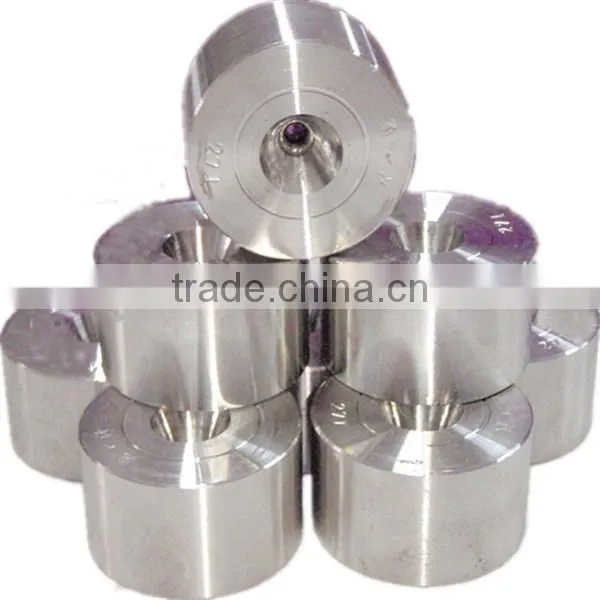

Drawing mould
Main description |
Drawing mould adopts high pressure and temperature process to clotting and get the diamond aggregates in the Metal catalyst (cobalt or silication )by the diamond powder. Relatively speaking,its performance is close to the imported PCD dies. And it is mostly applicable to draw low carbon steel wires (iron wires) and the performance-price ratio is very high. |
Key features |
|
Typical application areas: |
|
• Copper wire • Aluminum wire • Tungsten wire • Molybdenum wire • Stainless steel wire • Coated steel wire • Special alloy and high performance alloy wire • Precious metal wire • Various other ferrous and non-ferrous metal wire types |

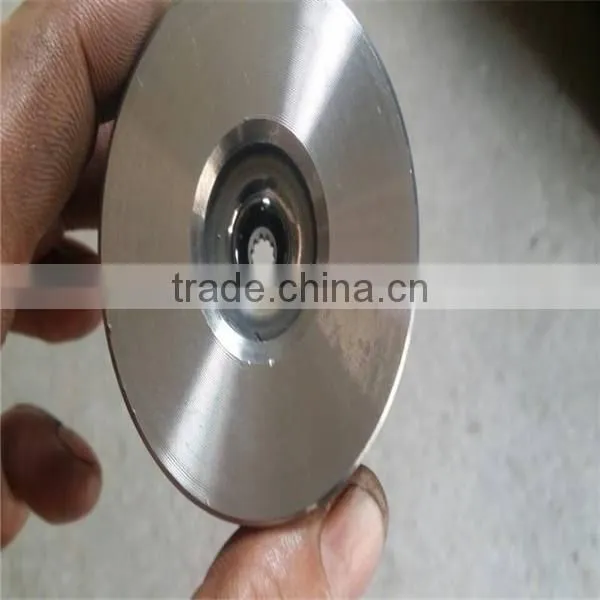

Drawing mould
When you place an order, please inform us the following information, so that we are able to provide you the appropriate dies. Diamond type --- ND or PCD. Diameter & tolerance --- normally in negative tolerance as customers' requirements. Casing sizes ---stardard as the table below or your special demand could be adviced. Material to be drawn --- such as copper. stainless etc. Applications --- such as wire drawing, Tinning, Extrusion... Inlet wire Diameter --- For example, a wire dies size, 1.0 mm for Inlet wire size 1.1 mm. Blank NO. --- Only for PCD Dies.
Drawing mould carton box and wooden case

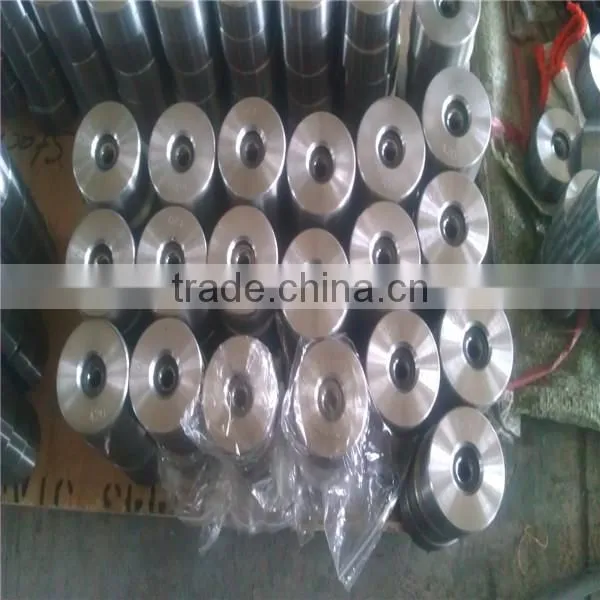

Drawing mould manufacturing and processing plant

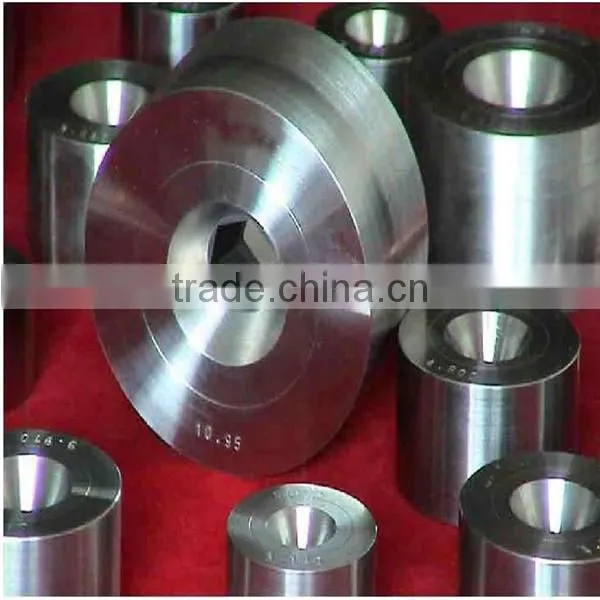

Drawing mould
1.What is the price of your wire drawing dies?
We have a standard price list, but our prices are based on many factors within your control, such as the volume of business you choose to do with us, the quantity of one size you order, the size of the order, urgency of your requirement and any unusual specifications. Therefore, name your price, your size, quantity and specifications and see what can happen to our price list.
2.What carriers do you use?
UPS, FEDEX, EMS and TNT, DHL are here daily. Various trucking lines deliver to us as well.
3.What is your typical size tolerance?
Our standard size tolerances vary according to size. In general, the numerical tolerance is tighter for smaller sizes and wider for larger hole sizes. As a percentage of diameter, the opposite is true. The larger hole sizes have a closer tolerance based on percentage of diameter. We also customize tolerances for your specific needs and price constraints.
