Tungsten carbide dies for wire drawing machine PCD wire drawing die
Wire drawing die
1,Description
Wire drawing die
Tungsten carbide drawing dies are a wise economical choice for steel wire and other largesize wire drawing applications that make cost savings a priority over die wear resistance and wire surface finish.
Our tungsten carbide drawing dies are composed by micro crystalline rare refractory metal carbide and high-purity cobalt powder for auxiliary metal or other metal powder as the binder. As a result of special production methods, and use of international advanced low pressure sintering furnace, the alloy is not only to maintain the original valued properties of tungsten carbide, and its performance increased by 1/4 than ordinary drawing die. At the same time, due to cobalt or other metal for cement, it becomes also tough.
2,Application
Wire drawing die
The wire drawing die/mould is used widely, for example, high precision wire materials used in electron device, radar, television, instrument and aerospace etc., and common tungsten wire, molybdenum wire, stainless steel wire, electric wire and cable, and various alloy wire . Because of the raw material of wire drawing die/mould adopted the natural diamond or synthetic diamonds, it has good wear resistance with long service life.
3,Features
1.Good Wear Resistance
Tungsten carbide possesses high wear resistance, which could guarantee long-term work of drawing die within any drawn amount and ensure the size and precision of products.
2.Excellent Polishing
Carbide has a good polishing, which can be processed like mirror, thus ensuring high-quality of metal surface.
3.Small Adhesion
In the drawing process, the drawing die keep little adhesion with metal processed, thereby enhancing the durability of drawing die, and make processing material to acquire high-quality gloss finish for surface.
4.Small Friction Coefficient
In the drawing process, small frictional resistance can greatly reduce the power loss, thus enhancing efficiency.
5.High Coefficient of Thermal Conductivity
In the drawing process, heat can be conducted away very well.
6.Good Corrosion Resistance
The property is in the wet lubricated stretch, especially in the acidic lubricated stretch, to become more superior.

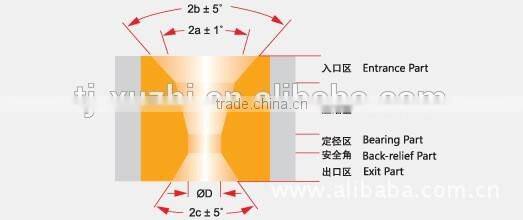

4,Specification
| Soft Wire | Hard Wire | |
| Entrance angle | 70º+/-20º | 60º+/-20º |
| Reduction angle | 16º+/-2º | 14º+/-2º |
| Bearing length | 25--50 | 40-80 |
| Exit angle | 15º+/-5º | 15º+/-5º |
| Back relief angle | 50º+/20º | 50º+/20º |
|
Copper Wire, aluminum wire, brass wire, gold wire,etc |
Stainless steel wire, steel wire, iron wire, tungsten wire,etc |
5,How to buy
Wire drawing die
Wire drawing die
Xuzhi company product scope:
1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line
9,Napkin paper production line
Wire drawing die
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design.Now TIANJIN THREE WATER is the export company serviced for xuzhi.
