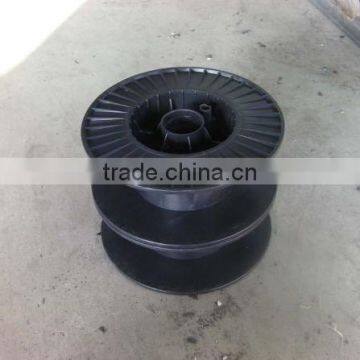

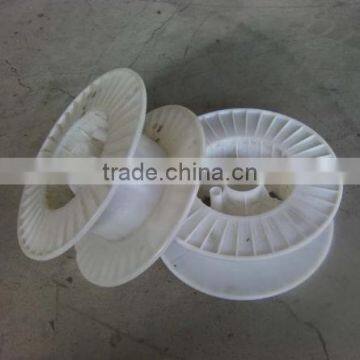

D300 D270 welding wire 15kg empty wire plastic spool coil plastic
coil plastic

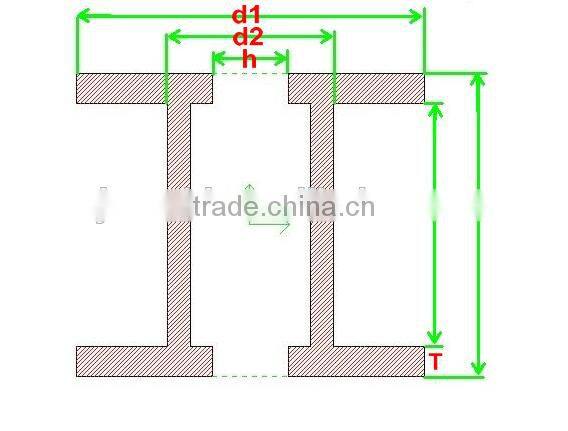

dimension |
|
mm |
flange OD |
d1 |
300 |
barrel OD |
d2 |
198 |
inner width |
L2 |
90 |
overall width |
L1 |
100 |
centre hole dia. |
h |
52 |
flange thickness |
T |
6 |
material |
Beige ABS ROHS
|
|
structure |
Assembled with screw |
|
| Model |
D1 Flange od |
D2 Barrel od |
L2 Traverse widht |
L1 Overall height |
h Center-hole diameter |
T Flange thickness |
Material |
| 220 | 220 | 110 | 160 | 190 | 37 | 15 | ABS |
| 300A | 300 | 130 | 130 | 160 | 25-40 | 15 | ABS |
| 300B | 300 | 160 | 130 | 160 | 25-40 | 15 | ABS |
| 300C | 300 | 180 | 170 | 200 | 100 | 15 | ABS |
| 300D | 300 | 130 | 130 | 160 | 32 | 15 | ABS |
| 400A | 400 | 200 | 120/250 | 155/300 | 56 | 16 | ABS |
| 400B | 400 | 200 | 120/250 | 155/300 | 56 | 16 | ABS |
| 400C | 400 | 200 | 250 | 300 | 56 | 16 | ABS |
| 400D | 400 | 170 | 245 | 285 | 50 | 20 | ABS/PS |
| 450 | 450 | 200 | 250/265 | 300/315 | 56 | 25 | ABS |
| 500A | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500B | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500C | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500D | 500 | 250 | 250/315 | 300/375 | 56-127 | 25 | ABS |
| 530 | 530 | 250 | 250/315 | 300/375 | 56 | 21 | ABS |
| 600 | 600 | 300 | 345 | 395 | 56 | 27.5 | ABS |
| 630A | 630 | 315 | 315 | 375 | 56 | 25 | ABS |
| 630B | 630 | 315 | 415 | 475 | 56 | 25 | ABS |
| 800A | 800 | 400 | 500 | 600 | 80 | 35 | ABS |
| 800B | 800 | 400 | 500 | 600 | 80 | 35 | ABS |
| 800C | 800 | 400 | 500 | 600 | 127 | 35 | ABS |
| 1000 | 1000 | 500 | 630 | 750 | 56-127 | 40 | ABS |
Material |
ABS, ABS+PC, PP, PVC |
Color |
White, black or customized |
Tolerance |
Comply to ISO 9001:2008 or upon your request |
Performance |
corrosion resistance,weather resistance,abrasive resistance, electric insulating property,mechanical property,barrier property, good adiabaticity,good anti vibration etc |
Appearance |
no burrs, no dirty, zero defect |
Processing |
Injection molding |
OEM method |
OEM by drawing or sample |
ODM |
Available, we supply free design |
Delivery time |
20 days after receiving deposit |
Payment term |
T/T or L/C. |
coil plastic
Pallet
Or depends on customers
coil plastic
Xuzhi company product scope:
1, Flux cored wire plant project Consulting (including the new factory process design,
old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2, Flux cored wire complete line manufacturing
3, Hardfacing & stainless steel etc special flux cored wire product manufacture
4, Provide high quality 2roll-type and 3roll-type of roller die cassette for the following
types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5, Produce various specifications and types of wire drawing machines used in
metal products processing and manufacturing
6, Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7, Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire
winding machine,drum packaging machine)
8, Potato chips production line
9, Napkin paper productuon line
coil plastic
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design.Now TIANJIN THREE WATER is the export company serviced for xuzhi.
