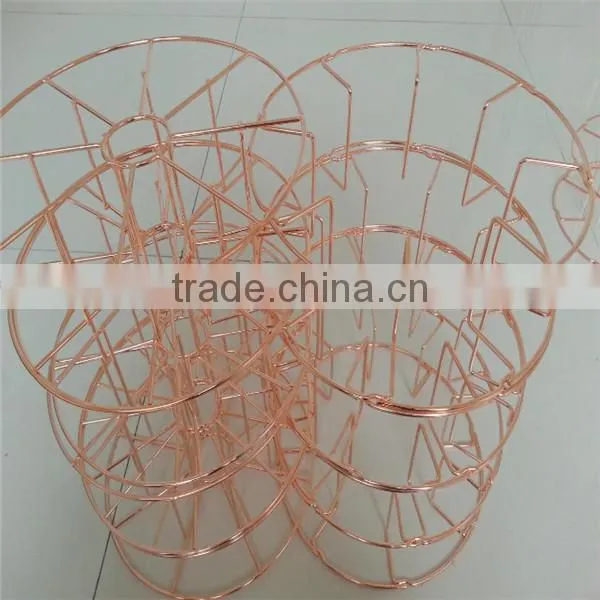

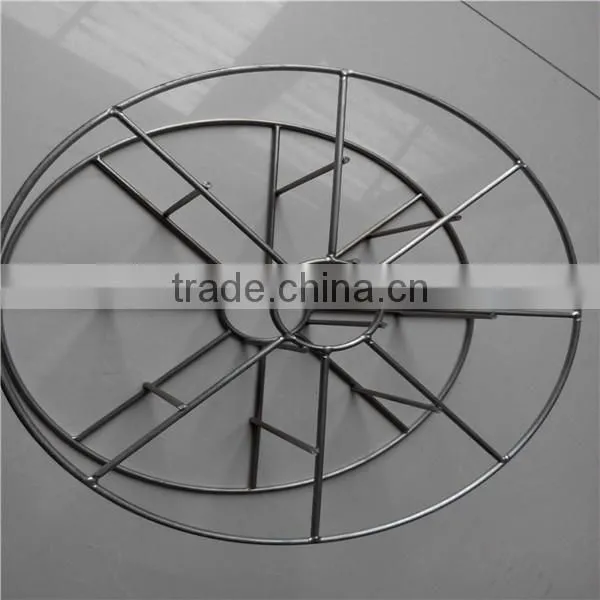

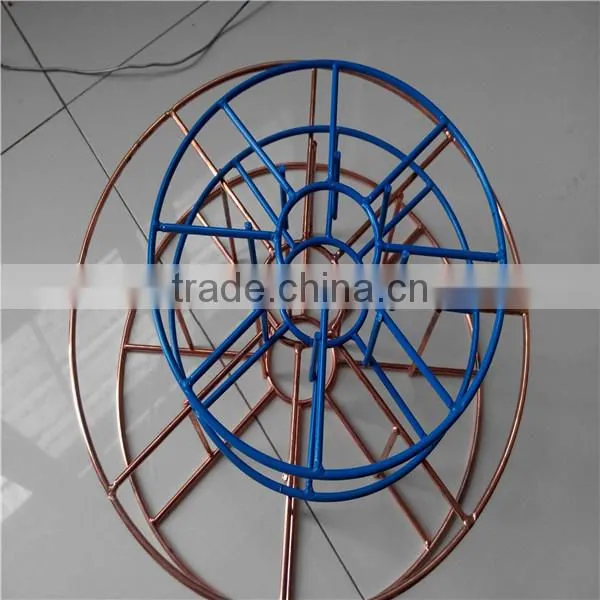

Wire spooling device for er70s-6 welding wire
The BS spool is especially suited for layer winding. This is due mainly to the narrow measures and tight tolerances, which provides precision in winding and unwinding for all commonly, used wire diameters.
- Material: hard-drawn steel wire 235
- Application: rewinding welding wire
- Specifcations: 200mm, 270mm, 300mm,415mm.435mm
- Type: copper coating, zinkc coating, sparying static powder
Wire spooling device types
Type 1.
Model no. |
Size |
Weight |
Load weight |
||
D |
d |
L |
|||
K200 |
200±2 |
100±1 |
45±0.5 |
0.288KG |
5KG |
K270 |
270±2 |
148±1 |
90±0.5 |
0.352KG |
15-20KG |
K300 |
300±2 |
188±1 |
90±0.5 |
0.354KG |
15-20KG |
K415 |
415±2 |
300±1 |
90±0.5 |
0.42KG |
30KG |
K435 |
435±2 |
300±1 |
90±0.5 |
0.45KG |
50KG(MAX) |
K435 |
435±2 |
300±1 |
70±0.5 |
0.40KG |
50KG(MAX) |
Type 2.
Model no. |
Size |
Weight |
Load weight |
||
D |
d |
L |
|||
KS200 |
200±2 |
100±1 |
45±0.5 |
0.4KG |
5KG |
KS270 |
270±2 |
148±1 |
90±0.5 |
0.535KG |
15-20KG |
KS300 |
300±2 |
188±1 |
90±0.5 |
0.606KG |
15-20KG |
KS415 |
415±2 |
300±1 |
90±0.5 |
0.8KG |
30KG |
KS435 |
435±2 |
300±1 |
90±0.5 |
0.88KG |
50KG |
Type 3.
Model no. |
Size |
Weight |
Load weight |
||
D |
d |
L |
|||
KL200 |
200±2 |
100±1 |
45±0.5 |
0.35KG |
5KG |
KL270 |
270±2 |
148±1 |
90±0.5 |
0.52KG |
15-20KG |
KL300 |
300±2 |
188±1 |
90±0.5 |
0.62KG |
15-20KG |
KL415 |
415±2 |
300±1 |
90±0.5 |
0.68KG |
30KG |
KL435 |
435±2 |
300±1 |
90±0.5 |
0.72KG |
50KG |
Type 4.
Model no. |
Size |
Weight |
Load weight |
||
D |
d |
L |
|||
KP200 |
200±2 |
100±1 |
45±0.5 |
0.35KG |
5KG |
Type 5.
Wire winding fixtures
Model no. |
Size |
Suitable spool |
Recommend speed |
||
D |
d |
L |
|||
J200 |
300 |
100 |
44-45 |
K200 |
20m/s-30m/s |
J270 |
314 |
148 |
89-90 |
K270/KS270 |
20m/s-30m/s |
J300 |
314 |
188 |
89-90 |
K270/KS270 |
20m/s-30m/s |
J415 |
470 |
308 |
89-90 |
K415/KS415 |
≤5m/s |
J435 |
480 |
308 |
89-90 |
K435/KS435 |
≤5m/s |

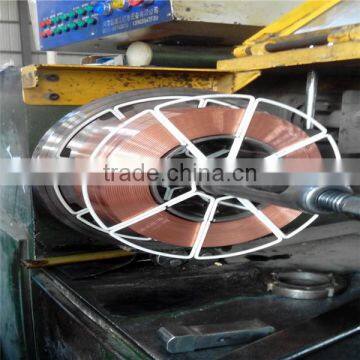

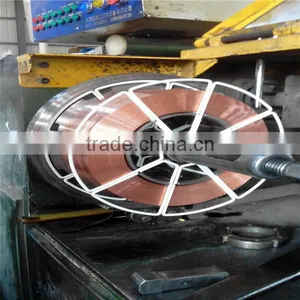

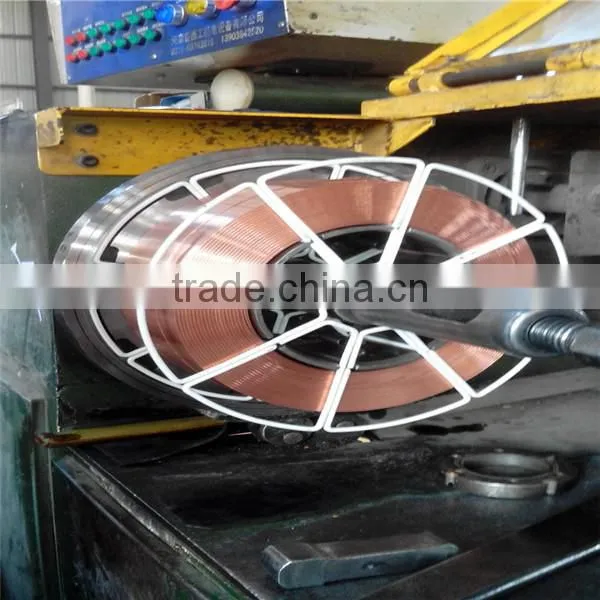

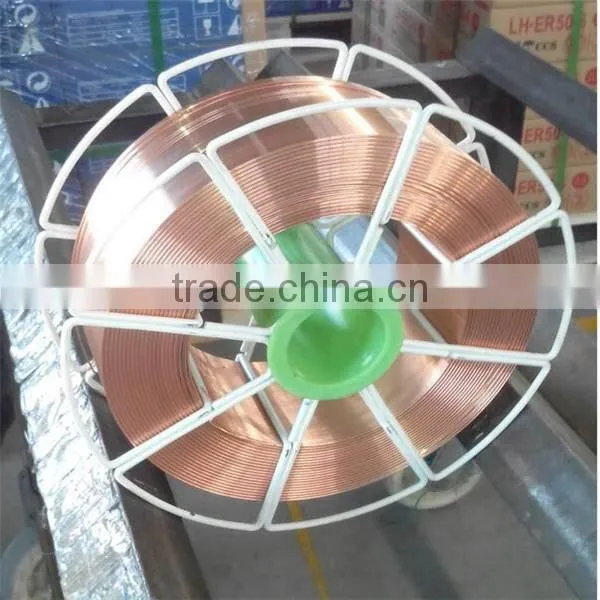

Wire spooling device practical use

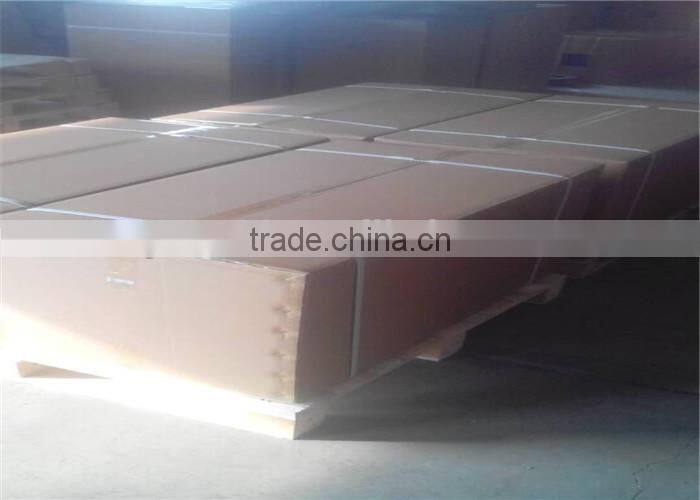

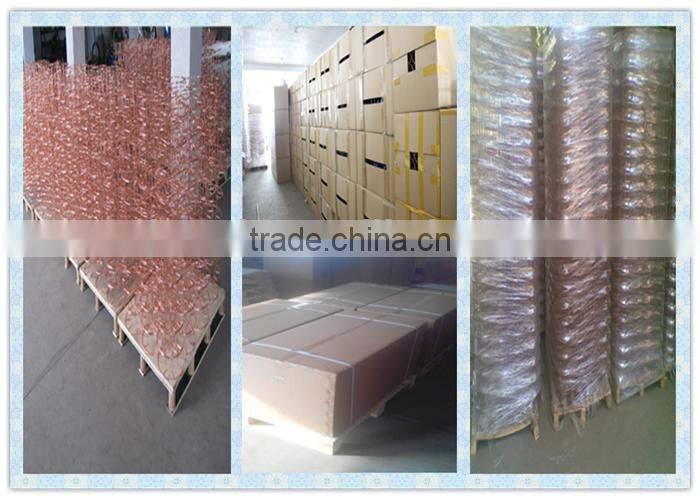

Wire spooling device packing

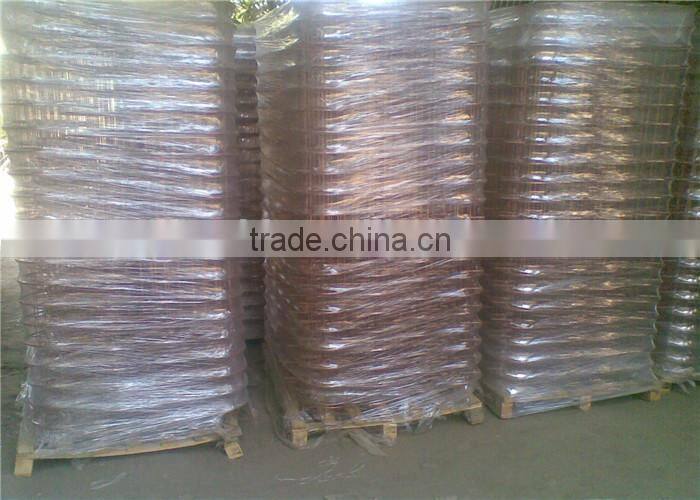

Wire spooling device shipping
Accepted Delivery Terms |
FOB/CIF/CNF |
Accepted Payment Currency |
USD,RMB |
Accepted Payment Type |
T/T,L/C |
Nearest Port |
Tianjin Port or designated port |
Delivery Time |
After received T/T 30% advance payment |
Sample
Supply you one spool free of charge to test the quality, Postage will be on the customer’s charge. But postage could be deducted from the first order.
How to place the order?

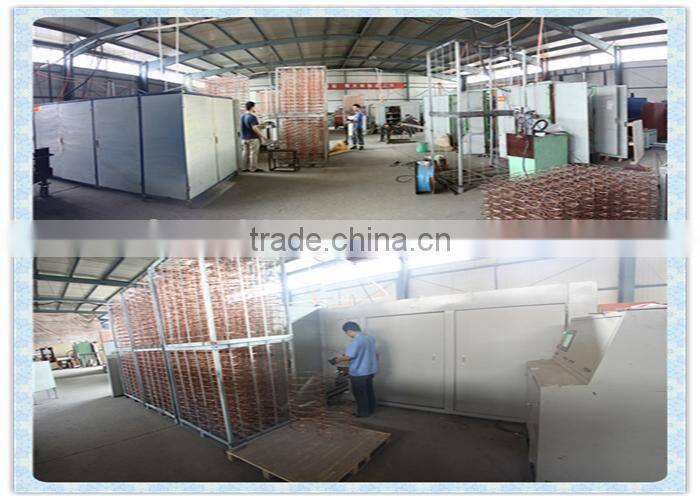

Wire spooling device production workshop
Wire spooling device warehouse
Wire spooling device
Q: Why BS spools are widely used compared with plastic spool?
A: The main reason is environmental requirements in the recycling process. Plastic spools are also brittle and transportation damages frequent. The BS spool meets all the existing environmental requirements.
Q: Are you able to provide the wire spool size we expect besides standard wire spool?
A: Yes, our factory has its own semi-automatic and fully automatic machine that permitted us to expand its products variety in order to be more flexible and to satisfy the costumers with a large range of metal spools
Q: what’s the feature of BS spool?
A: Outstanding stability , tight tolerances, easy to handle, extremely good winding and unwinding properties
