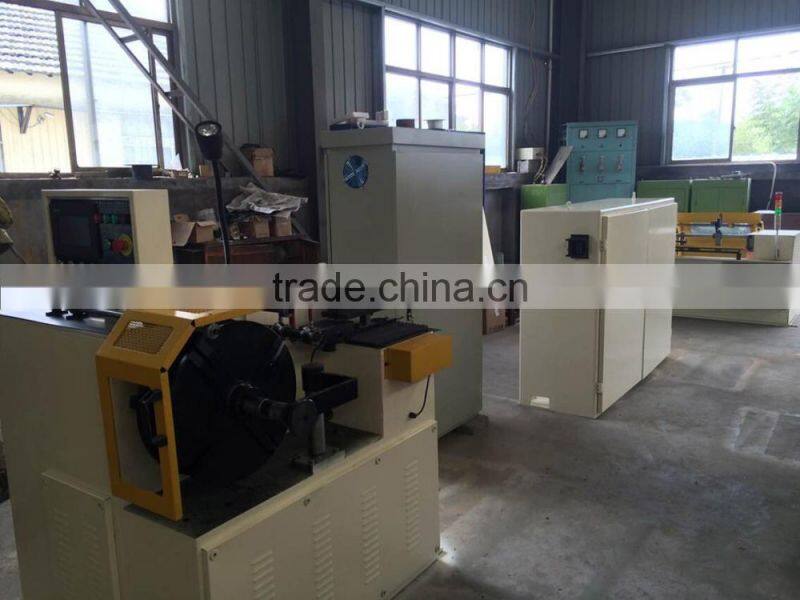

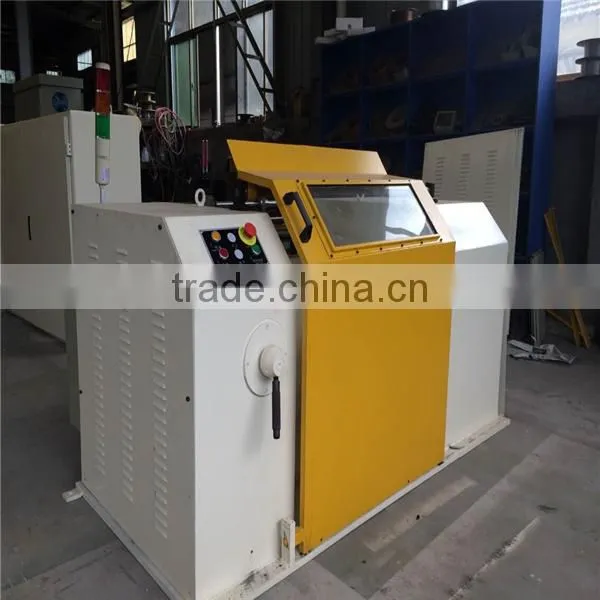

Help CenterDS-3F Bobbin Welding Wire Spooling Machine Rewinding Machine
Related Products
Wire spooling machine
The unit uses frequency conversion, servo, fuzzy control theory and other integrated technologies.
The unit has such features as active wire pay off;automatically adjust tension;stable line speed and diameter self-adapt in its deviation.
Before operating and maintenance, be sure to read the operating manual of the unit completely, carefully. Strictly follow the guidance of the operating manual to ensure the operator to obtain the best performance of the unit, the effective protection of their personal safety, and avoid any dangerous accidents.
Main Technical parameters:
1 |
Suitable for |
welding wire and other precision layer-winding-required metal wire |
2 |
Wire winding type |
Precision layer winding |
3 |
Winding wire diameter |
Φ0.8mm-2.0mm |
4 |
Max winding speed |
25m / s |
5 |
Pay off bobbin |
can be customized, the user should provide the specific drawing |
6 |
Spool type |
D200,D270,D300 |
7 |
Max weight on take-up spool |
5kg,15kg,20kg per spool |
8 |
Wire pay off mode |
active pay off |
9 |
Brake mode |
pneumatic brake |
10 |
Take-up motor |
5.5KW, frequency conversion motor |
11 |
Pay off motor |
18.5KW, frequency conversion motor |
12 |
Main power supply |
380V,50HZ (three-phase five-wire); |
13 |
Gas source standard |
0.45~0.7Mpa |
14 |
Machine weight |
2800kgs |
15 |
layout area |
6m*2m*2m |
1.water-proof wooden cases
2.according to customer requirements
Our products are widely sold in domestic market and have been exported to Canada, India, Brazil, Russia,, Turkey, Thailand, Ukraine, etc.
If you want to kow more details of our wire spooling machine/ wire layer rewinding machine, please contact me ,following is my contact information:
