Fine copper wire drawing machine price copper super fine wire drawing machine
- 20 Set / Sets per Month
- XINGANG CHINA
- T/T
Product Details
Condition: | New | Inlet Diameter: | 5.5mm | Outlet Diameter: | 0.8-5.5mm |
Place of Origin: | Tianjin, China | Brand Name: | wire welding machine | Model Number: | wire welding machine |
Voltage: | 380V/220V | Power(W): | 11KW | Dimension(L*W*H): | Depend on model |
Weight: | 1.5~40Ton | Certification: | CE Certificate, CE Certificated | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fine copper wire drawing machine price copper super fine wire drawing machine

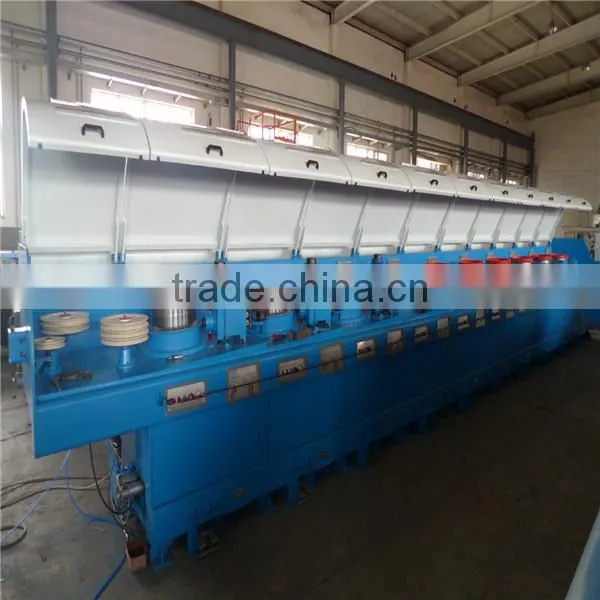

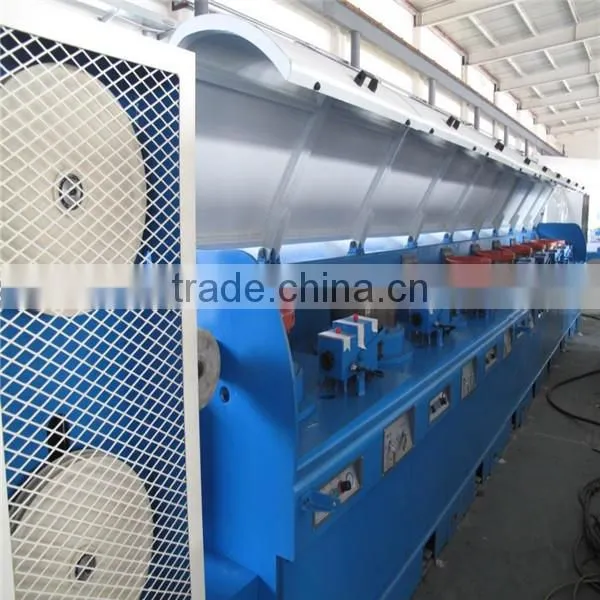

Copper super fine wire drawing machine
Copper super fine wire drawing machine
Main technical parameter of wire drawing machine
Technology | Parameters |
Wire material | For drawing Flux core wire |
Inlet diameter of drawing | 2.6mm |
Finished drawing diameter | 1.2mm |
Max inlet wire intensity | Max inlet wire intensity |
Max. diameter of inlet wire | 2.8mm |
Min. diameter of outgoing wire | 1.2mm |
Max drawing speed | ≤18m/s |
Water consumption | 3.5m3/h |
Water pressure | ≥0.3Mpa |
Air consumption and pressure | 0.6m3/h Air pressure ≥0.7Mpa |
Copper super fine wire drawing machine
Motor:
a. Host machine: AC variable frequency motor
b On the operating platform of the first to the ninth block equipped with fixed die.
On the operating platform of the tenth block equipped one rotating die.
c. On the surface of the blocks we coat tungsten carbide to wear-resisting and stainless steel rust-proofing treatment
d. passive Wire pay off bobbin size:800×600×400mm
e. Noise of single unit:≤81db
f. Wire take up machine (ZS-800)
Copper super fine wire drawing machine
Wooden cases
Or depend on customers
Copper super fine wire drawing machine
Xuzhi company product scope:
1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line
9,Napkin paper production line
Copper super fine wire drawing machine
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design.Now TIANJIN THREE WATER is the export company serviced for xuzhi.
