Welding wire production line wire forming machine welding wire feeder
Welding wire feeder
1,Description
Welding wire feeder
According to the technical requirement of F.C.W., our company decides the control project of forming machine. The key of this system is coordinated control among motor speed, powder feeding speed and coiling speed, to thereby ensure the stationarity of wire balance weight ratio and production running.
2,Main technical parameter
Welding wire feeder
Strip width: for ordinary carbon steel 14mm and for hard facing 16mm
Strip thickness : ordinary carbon steel thickness 0.8-0.9mm and for hard facing welding:0.4mm,
Output Diameter of wire forming machine: Φ2.8mm,2.2mm,
Finished wire specification:Φ2.31mm~Φ2.8mm (semi-finished flux core wire) is re-drawing to Φ1.6mm~Φ1.2mm.
Wire section shape: ordinary carbon steel wire is O-interface and hard facing wire is overlapping interface
Strip material: low carbon steel SPCC-SD
Inlet Strip entering speed: Umax ≤100m/min
Filling rate13~50%
High precision feeding system: automatic check and powder feeding accuracy relative error ≤±5%
Motor power: 3KW ×7=21KW
Bobbin for pay-off and take-up : Φ800×Φ350×480mm (user demand is available)

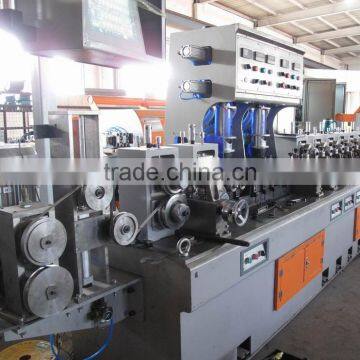

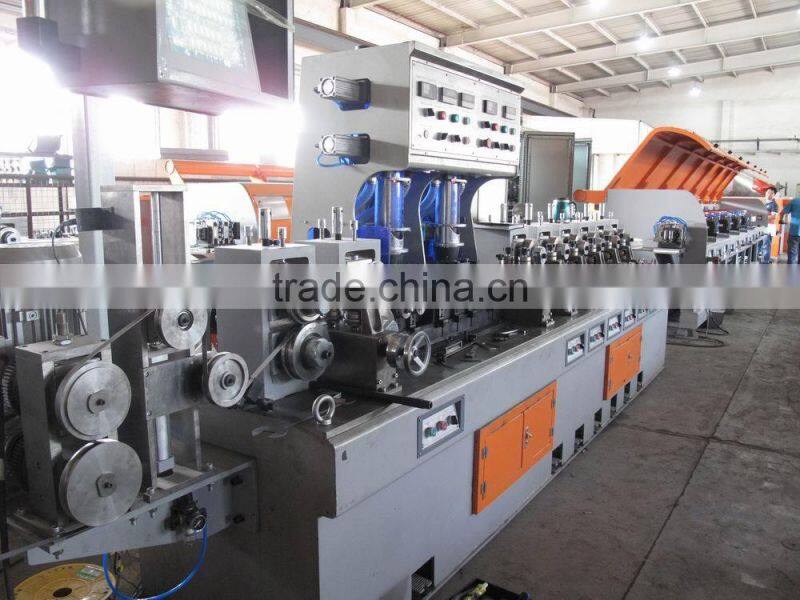

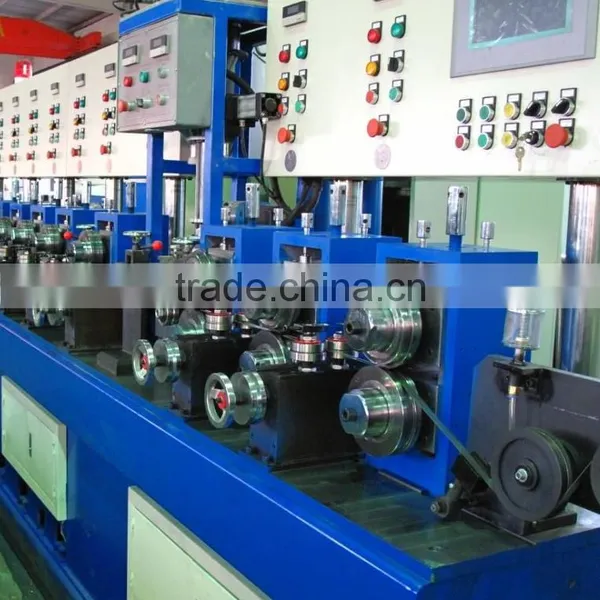

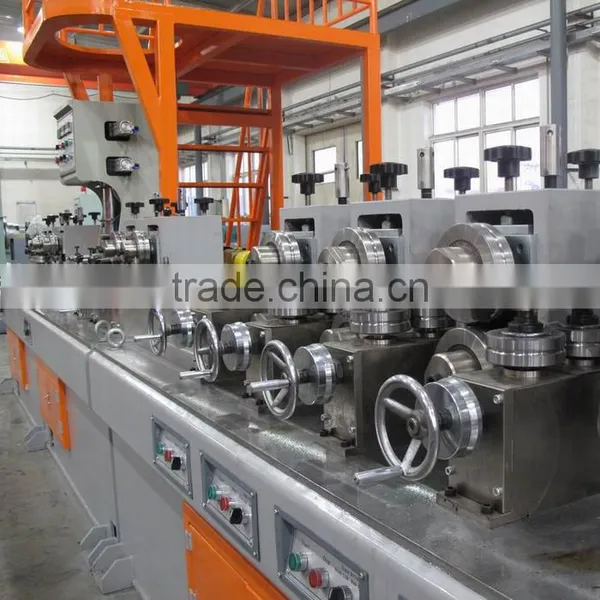

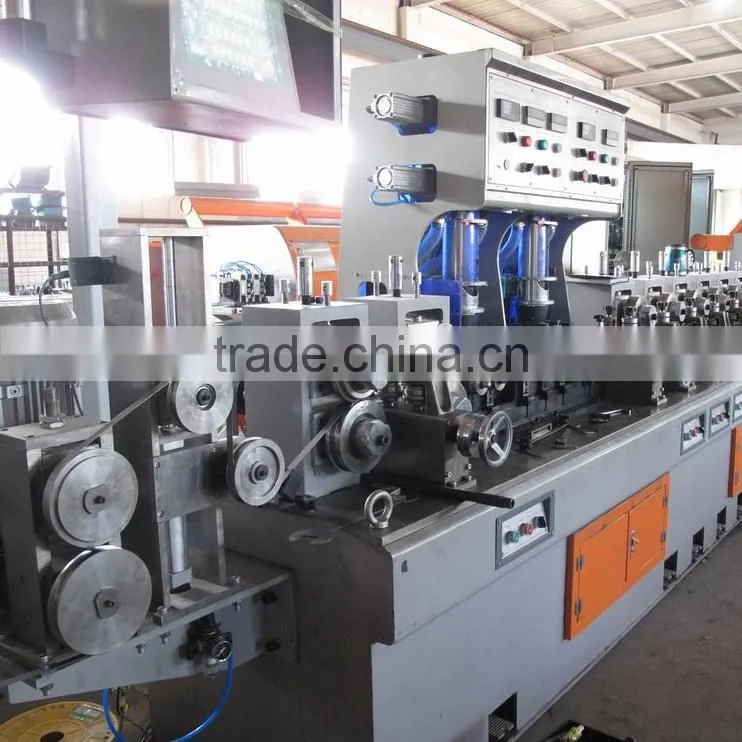

The machine model is composed with 16 groups of roller for forming and reduction including 3 groups of preformed roller, 5 groups of form shaping reduction roller and 8 horizontal positioning reduction adjustable rollers. Power: variable frequency motor with SIEMENS PRC part of electrical control. Roller diameter: 129mm.
Welding wire feeder
Wooden cases
Or depend on customers
Welding wire feeder
Xuzhi company product scope:
1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line
9,Napkin paper production line
