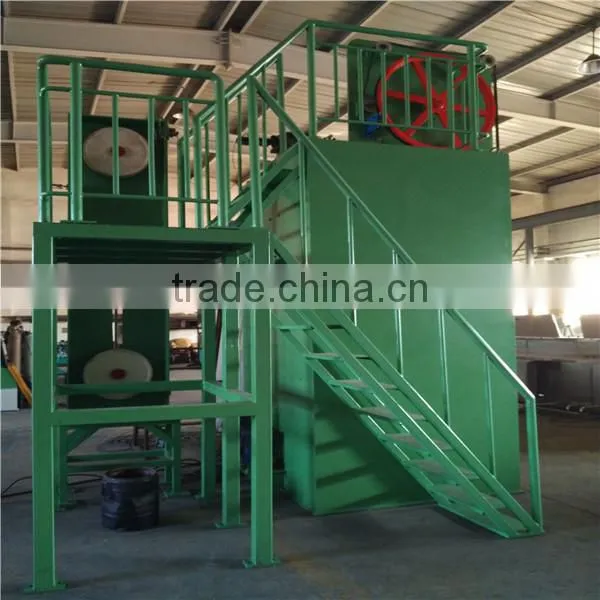

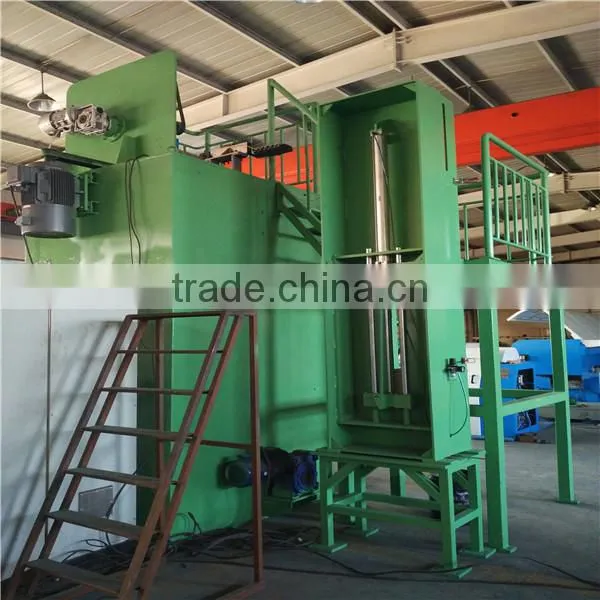

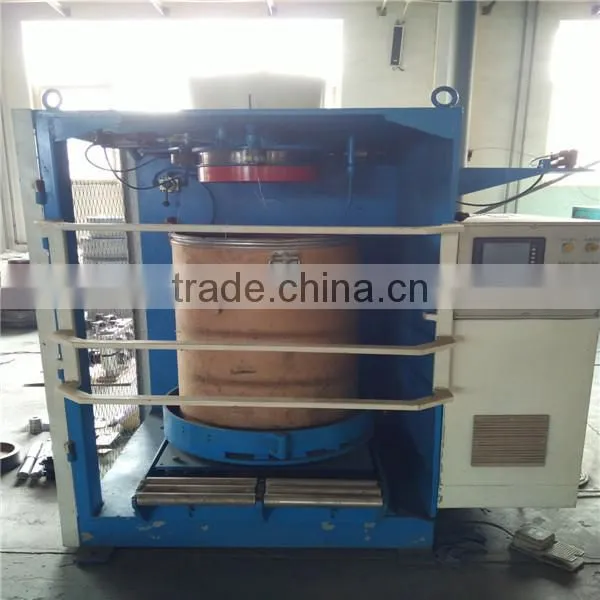

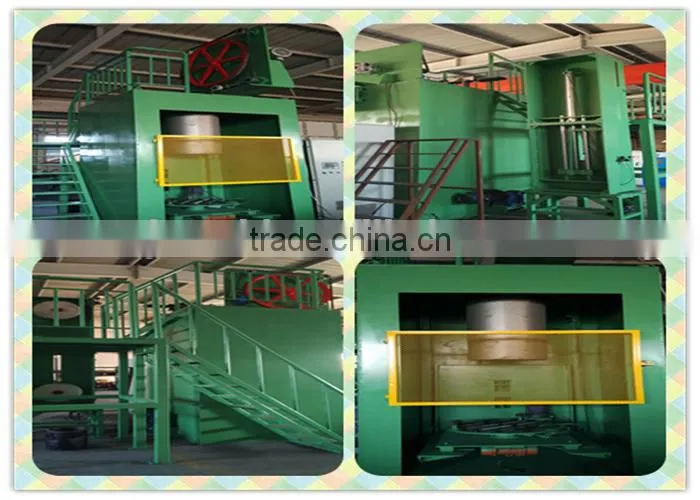

Rotary packing machine

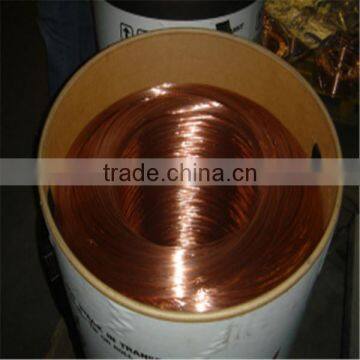

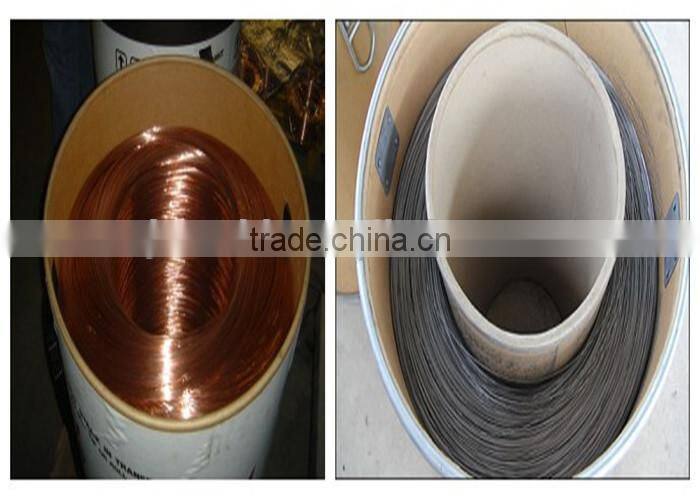

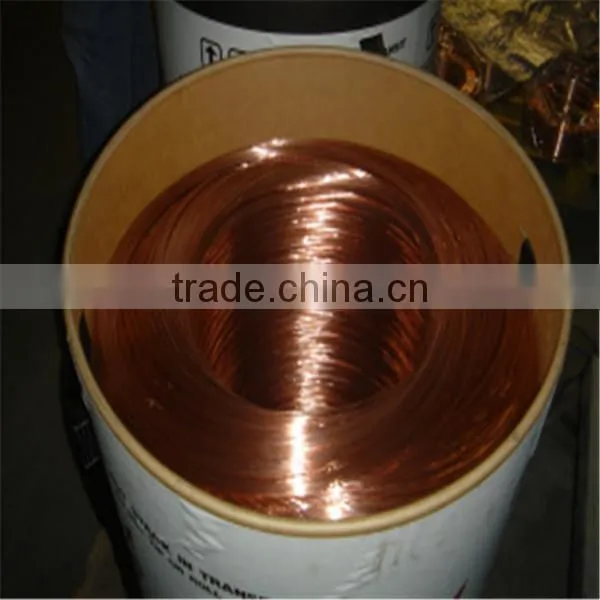

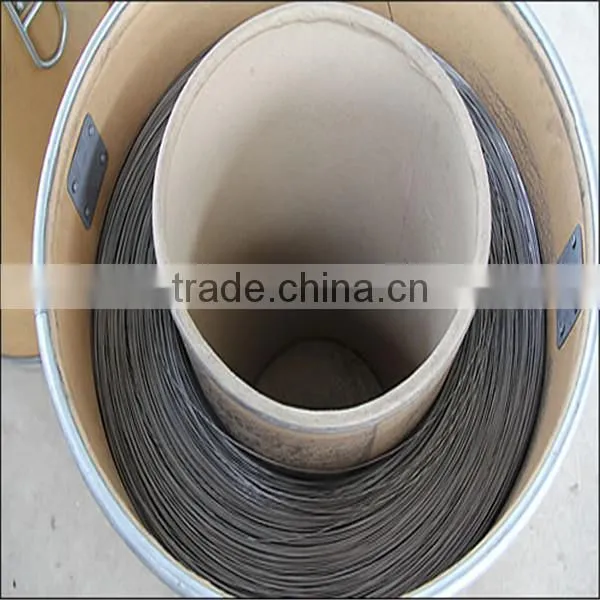

This equipment is to package qualified flux-cored welding wire and solid welding wire
A. Mechanical character parameters: |
|
1. Maximum mechanical wire coiling speed: ≤18m/s 2. Normal coiling speed: ≤8-12m/s (coiling speed depends on the quality of wire) 3. Coiling wire diameter: 0.8-1.6mm 4. Maximum winding weight of each spool: 50kg 5. Drum diameter: 550mm×300mm×480mm (outside diameter × inside diameter × height) Can reach to 350kg according to requirement |
B. Electrical performance parameters: |
|
1. Add/reduce speed: 30s 2. Power motor of pay-off machine: 10kw 3. Power: 3-phase 380v 4. Frequency: 50Hz |
C. Other related parameter: |
|
1. Equipment outside dimension: 4500mm×2400mm×3400mm(L×W×H) 2. Weight: 2650kg 3. Air control system pressure: 0.8Mpa 4. Pay-off machine technical parameter: 1) Bobbin dimension: 630mm 2) Motor power: 11kw 3) AC variable frequency speed control |
Rotary packing machine packing
wooden case with the long shipment period and the humidity on the long transport time
Rotary packing machine shipping
Accepted Delivery Terms |
FOB/CIF/CNF |
Accepted Payment Currency |
USD,RMB |
Accepted Payment Type |
T/T,L/C |
Nearest Port |
Tianjin Port |
Delivery Time |
After received T/T 30% advance payment |
Rotary packing machine
1)Pre-sale services
- Model reference and equipment technical advice
- Design your plant and calculate power consumption
- Spot examination and commission
- Send engineers to help you install the machines and train your staff online
- Introduce the high quality raw material suppliers to you
2)After-sales service
- One year’s warranty period
- Regular maintenance and product tracking service
- Lifelong cost of the required parts supply
- Instantly after-sales service
Rotary packing machine
1.How to set the parameters of pail packing machine?
You can conveniently set technical parameter on Siemens touch screen of the machine.
2.Do you have alarm system in the pail packing machine?
Yes, when fault happening, it will deliver relating fault code to help operator trouble shooting instantly.
3.Do you have training worker and guidance service about the pail packing machine?
Yes, we have professional engineers to train workers steply.
Our company product scope
(1)Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
(2)Flux cored wire complete line manufacturing
(3)Hardfacing & stainless steel etc special flux cored wire product manufacture
(4)Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
1)flux cored wire manufacturer
2)solid wire manufacturer
3)rebar manufacturer
4)Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire,Electric wire and cable, non-ferrous metal products, etc.)
(5)Produce various specifications and types of slitting &rewinding machine and wire drawing machines used in metal products processing and manufacturing
(6)Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
(7)Metal products auxiliary machine manufacturing (such as: various types of butt welding machine,pointing machine)
