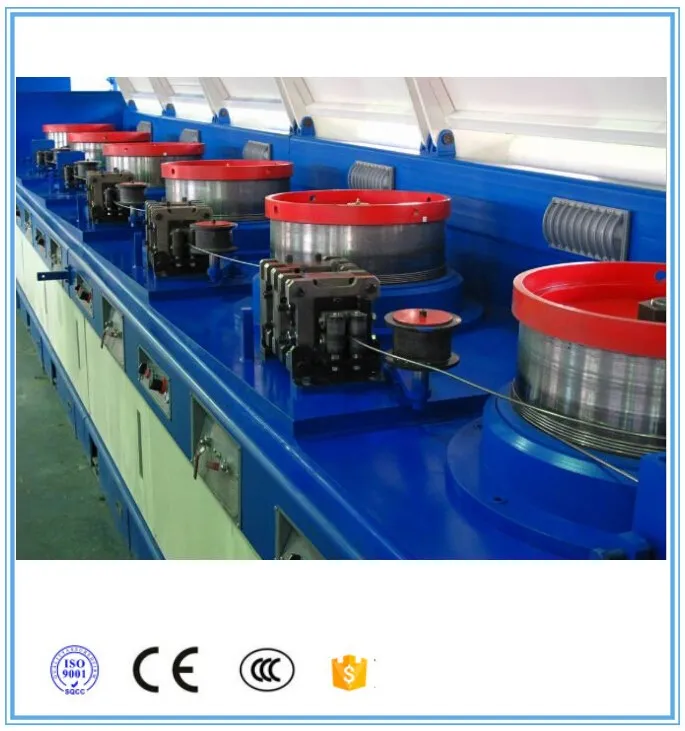

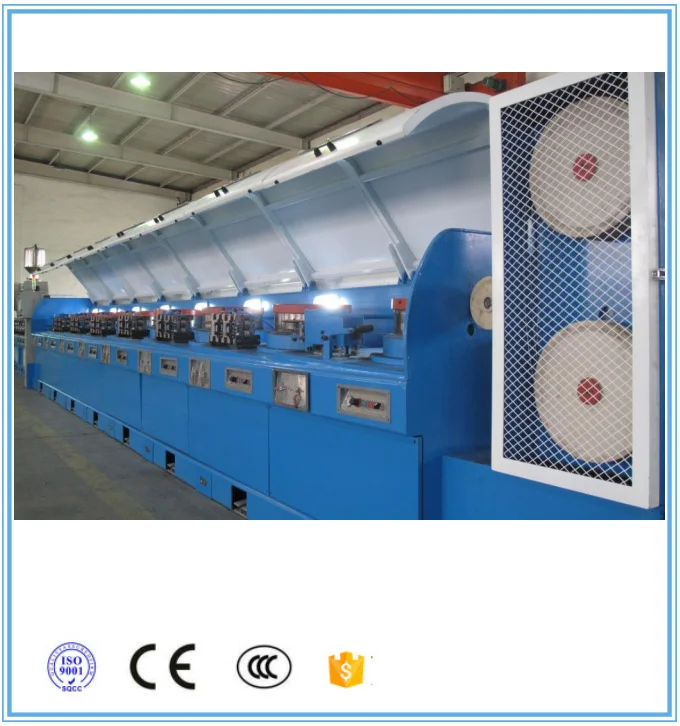

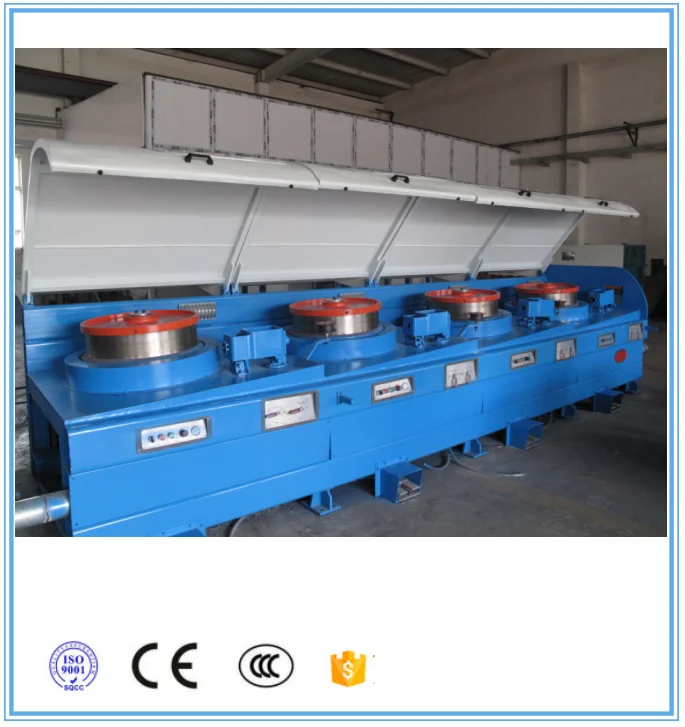

Wire drawing machine
Ø inlet diameter:Φ5.5
Ø outlet diameter:Φ1.2-Φ1.6
Ø the type of wire for drawing: hardfacing and stainless steel flux cored wire
Ø takeup speed:3-500meter/minute(5-8.5meter/second)
Ø bobbin : 800 bobbin,
Ø straight line type of drawing machine ,use dancer arm to control drive coordinated wheel to adjust the speed between each capstan by using sensor,
Ø adopts the horizontal type of tension device
Ø The working area of the drawing capstan is spray Tungsten carbide.
Ø drawing capstan adopts water cooling, spraying type,
Ø reduction method of the drawing capstan: using drawing die for reduction, the first drawing die adopts rotating die box when entering the drawing machine .
Ø payoff machine is passive ,take-up unit is active
3, capstan motor power and other electrical part configuration:
² first head is15KW,from the 2th to the 6th are 11KW,the 7th and 8th both 15KW,motor is ac frequency conversion motor.

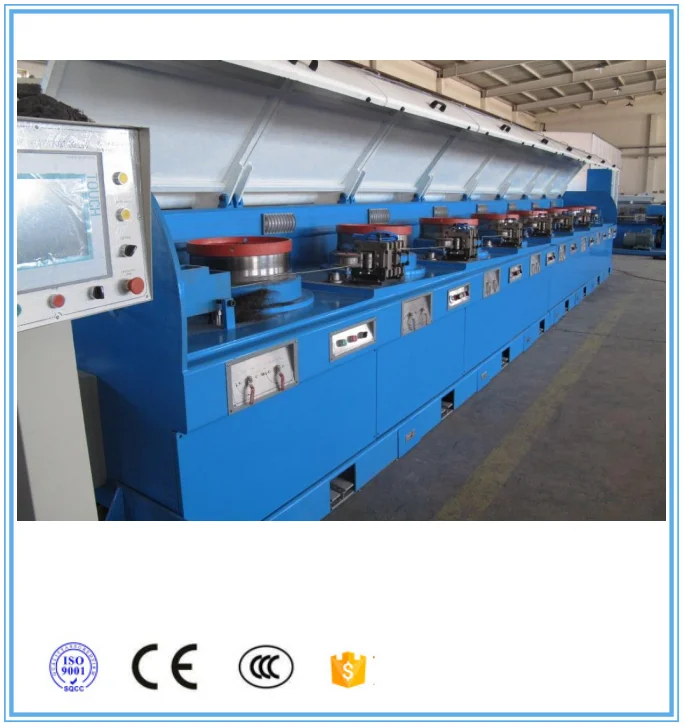

² inverter and PLC is Siemens,button and other component adopts Schneider and good quality Chinese brand.Touch screen adopts Panel Master color 10.4 inch touch screen.
Xuzhi Co., Ltd,
Xuzhi Co., Ltd, located in Shuangyuan Technology Park, Beichen District, Tianjin, China , is the professional manufacturer of the welding equipments and welding accessories for flux cored wire and solid wire. Our product scope as follows:
(1) Flux cored wire plant project consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
(2) Flux cored wire complete line manufacturing, including hardfacing & stainless steel, aluminum etc
(3) Provide high quality cassette roller die for the following types of customers:
1) flux cored wire manufacturer
2) solid wire manufacturer
3) rebar manufacturer
4) Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire, electric wire and cable, non-ferrous metal products, etc.
(4) Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
(5) Metal products auxiliary machine manufacturing (such as: argon arc butt welding machine, pointing machine etc.)
1 What's your company normal payment terms?
Answer:Usually we accept T/T,30%T/T prepaide before production,70% T/T in 5 days after you see the copy of BL. If you are one real buyer ,we also can aceppt L/C at sight.
2 What are your company normal export terms?
Answer: We normal export with CFR,CIF and FOB.
3 How many days it will take you to produce mass production for us?
Answer:Usually it takes about 20 days ,it also depends on the quantity and production seasons.

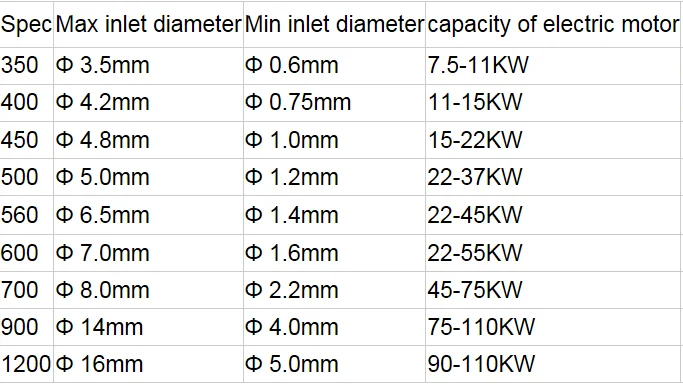

*Other specifications are available to your requirement
