Truck crane
- 0 per Month
- T/T
Product Description
Specifications

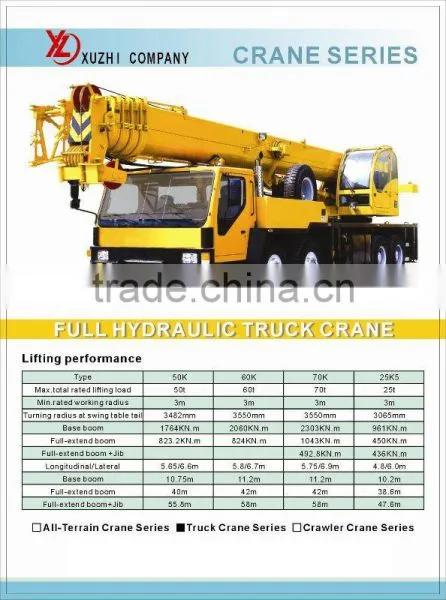

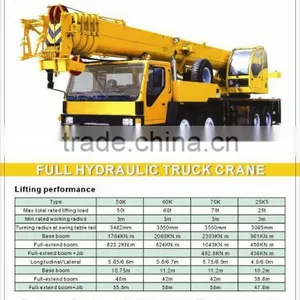

Truck crane hydraulicTruck crane hydraulic
Lifting performance
Type | QY50K | QY60K | QY70K | QY25K5 |
Max.total rated lifting load | 50t | 60t | 70t | 25t |
Min.rated working radius | 3m | 3m | 3m | 3m |
Turning radius at swing table tail | 3482mm | 3550mm | 3550mm | 3065mm |
Base boom | 1764KN.m | 2060KN.m | 2303KN.m | 961KN.m |
Full-extend boom | 823.2KN.m | 824KN.m | 1043KN.m | 450KN.m |
Full-extend boom +Jib |
|
| 492.8KN.m | 436KN.m |
Longitudinal/Lateral | 5.65/6.6m | 5.8/6.7m | 5.75/6.9m | 4.8/6.0m |
Base boom | 10.75m | 11.2m | 11.2m | 10.2m |
Full-extend boom | 40m | 42m | 42m | 38.6m |
Full-extend boom+Jib | 55.8m | 58m | 58m | 47.6m |
Working speed
Type | QY50K | QY60K | QY70K | QY25K5 |
Boom raising | 88s | 60s | 75s | 75s |
Boom telescoping time |
|
|
|
|
Full-extending | 180s | 150s | 150s | 150s |
Max.slewing speed | 2.0r/min | 2.0r/min | 2.0r/min | 2.5r/min |
Outrigger telescoping time |
|
|
|
|
Outrigger beam extending/retracting synchronously |
| 30/20s | 30/20s | 35/30s |
Outrigger jack extending/retracting synchronously |
| 35/30s | 35/12s | 40/35s |
Main winch with full load/no load | 85/110m/min | 75/130m/min | 75/130m/min | 75/125m/min |
Auxiliary winch with full load/no load | 85/110m/min | 98/108m/min | 98/108m/min | 75/125m/min |
Power
Type | QY50K | QY60K | QY70K | QY25K5 | ||||||
Engine modle | WD615.50 | WD615.46 | ISLE+350 | WD615.46 | WD615.334 |
| WD615.44 | WD615.46 | 6CL280-2 | SC8DK280Q3 |
Engine rated power | 206/2200kw(r/min) | 206/2208kw(r/min) | 257/2100kw(r/min) | 206/2208kw(r/min) | 247/2200kw(r/min) | 266/2200KW(r/min) | 235/2200kw(r/min) | 206/2208kw(r/min) | 206/2200kw(r/min) | 206/2200kw(r/min) |
Engine rated torque | 1100/1400N.m(r/min) | 1460/1400N.m(r/min) | 1550/1400N.m(r/min) | 1460/1400N.m(r/min) | 1350/1400N.m(r/min) | 1250/1500N.m(r/min) | 1250/1500N.m(r/min) | 1460/1400N.m(r/min) | 1170/1400N.m(r/min) | 1112/1400N.m(r/min) |
Engine rated speed | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min | 2200r/min |
