JTRFY Reactor
- 1000 Unit / Units per Month
- NINGBO OR SHANGHAI
- T/T Credit Card
- Side Entry Mixing Equipment
- Small Jacketed Glass Reactor Double Layer Reaction Systems for Laboratory
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
Product Details
Condition: | New | Automatic Grade: | Automatic | Type: | Tank Reactor |
Place of Origin: | Zhejiang, China | Brand Name: | JHENTEN | Model Number: | JTRFY |
Voltage: | 220V/380V | Power(W): | 1.1-11kw | Dimension(L*W*H): | 500mm*500mm*2000mm ~ 3500mm*3500mm*8000mm |
Weight: | 200kg ~ 7500kg | Certification: | SME,CE,SGS,ISO 9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

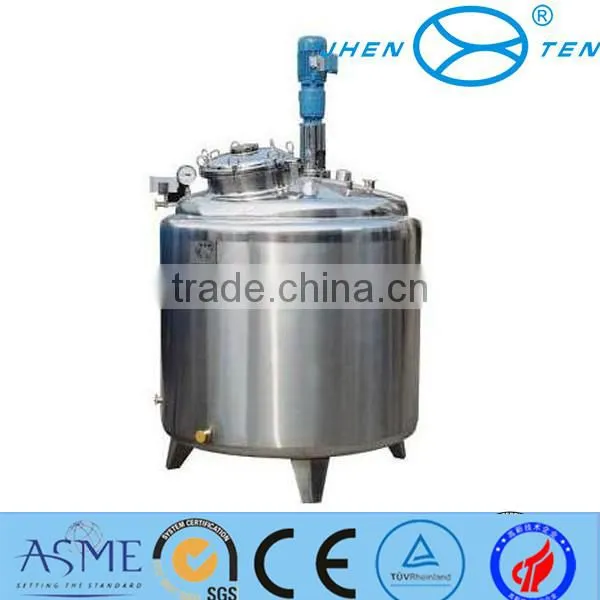

JTRFY Reactor
JTRFY reactor be designed, manufactured and inspected in accordance with the pressure vessel standard (GB150-2011) and the steel welded atmospheric pressure vessel standard (NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.
The stainless reactor is widely used in producing and researching areas of petrochemical, fine chemicals, rubber industry, agricultural chemicals, colourants, pharmaceutics and food. It is a tank that is used to hydrolysis, Neutralization and crystallization Distillation, evaporation, storage, hydrogenation, alkylation, polymerization, condensation, Heating mixing and constant temperature reaction
“Jhenten” reactor using vertical circular tanks, jacket can be made into a dimple jacket, coil jacket or the whole jacket, can heating or cooling, made of 316L or 304 stainless steel ,inside surface electrolytic mirror polishing or mechanical polishing, the outer surface adopts 304,all welded surface mirror or inferior smooth processing; Tanks welds adopt flanging process arc transition, smooth and easy to clean no dead corner, beautiful appearance.
Tank Optional Configuration
Reactor can configure aseptic air filter, thermometer (Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.
Feature
Reactor made of 316L or 304 has excellent mechanical properties, bearing high pressure, also it can withstand the force of the massive solid materials during feeding process. It features rapid heating, high temperature resistant, corrosion resistance, no rust, sanitary, no pollution, etc.
•Agitator with anchor type, frame type, impeller or turbine;using cycloidal reducer, gear reducer, and frequency control;Mechanical seal sealing device meeting sanitary standard; full jacket, half pipe coil, cooling/heating coil structure available, heating mode with steam, electric heating, heat conduction oil;Can be arbitrarily selected according to the user's technique.
• Reactor has 600L and 20000L, and other specifications, according to the actual requirement of customers.
Application
Apply to petrochemical, fine chemicals, rubber industry, agricultural chemicals, colourants, pharmaceutics, food and beverage, to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process.
