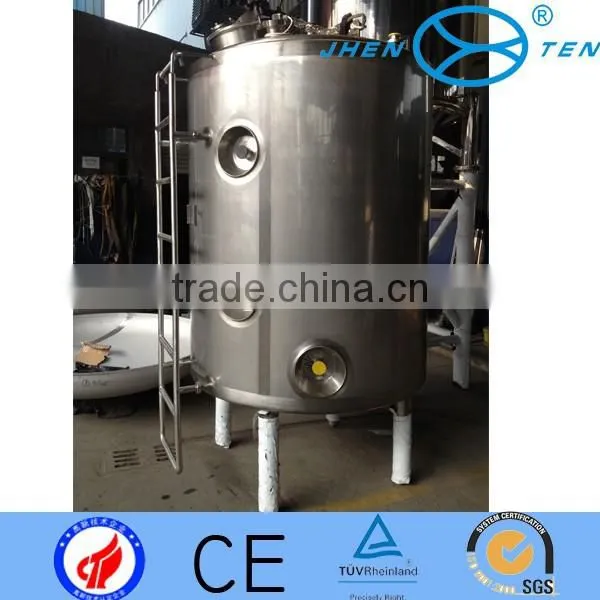

Supplier direct Storage tank 2KW sanitary stainless steel hot water tank
Water storage tank Description
1.It is mainly used as storage container,transfer tank for puried water,juice,milk,dairy,drinks etc.

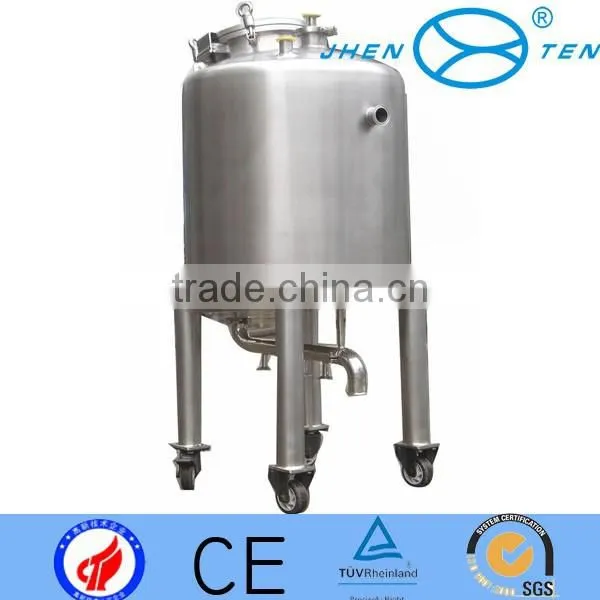

2.The tank leggs can be choice between brake wheels easy remove or adjustable supports for well fixed.
3.The shape can be any round heads or conical style.
4.Both inside and outside stainless surface are polished for easy cleaning,and produce a cover to avoid material splashing during processing and avoid volatilization of the solvent liquids;
5.The design of dished end and round bottom to avoid any dead corner during your process.
Material made of SUS304,316L,or others according to your requirements.

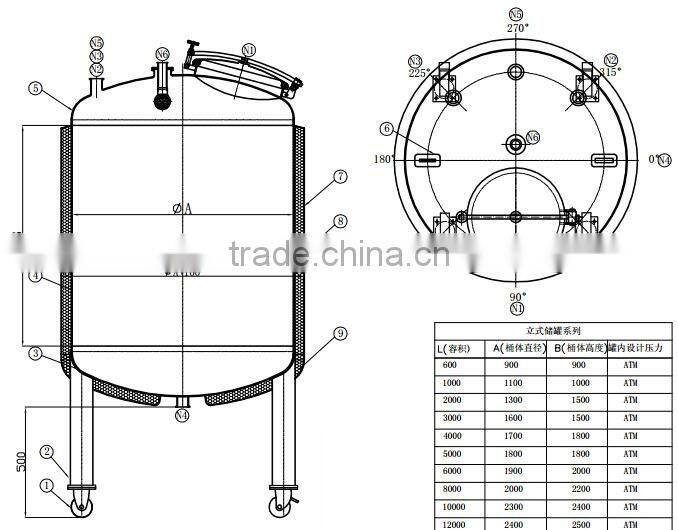

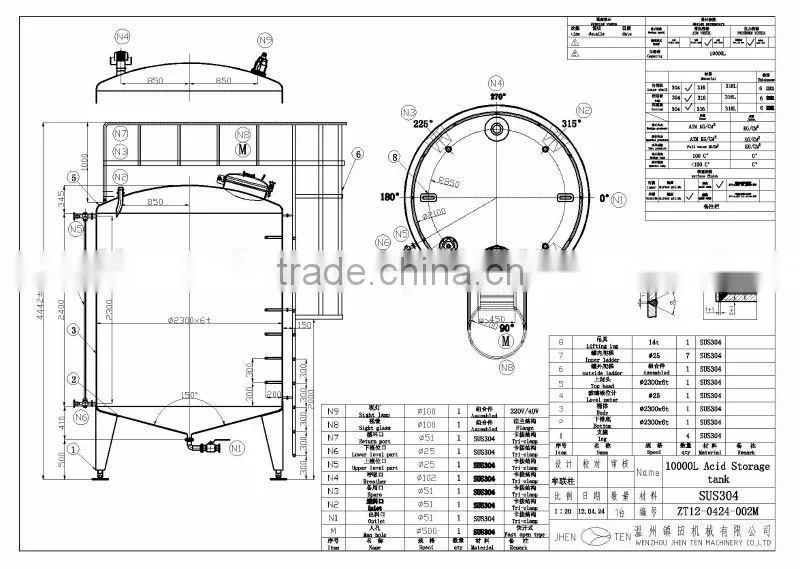

Water storage tank Structure
1.Consisting of inner tank body and outer covering layer, among which is heat preservation material.
2.material of tank is good quality stainless steel.
Standard scheme:
1.Quick open type manhole
2.Numeral indication type thermometer
3 .T type cleaning head
4. lever discharge valve
5.Adjustable conic supporting feet
Jhenten Quality Control for stainless steel tank :
1.The raw materaial plate was anlysised by our material anlysier to assure the quality
2.The welding is argon arc weld(TIG) to avoid plate's oxidized
3.After welding the the inner tank ,we will make a full water pressure test to check the welding joint .After welding the jacket ,the full water pressure test be done for jacket too
4.After finishing the surface finish ,our people will make a surface roughness testing to assure the Ra data .
5.After agitator installment ,we will operate it to assure the function is good .
6.The nozzle's position 's confirm also is checked by our quality control people .
Water storage tank parameters
Water storage tank | |
Material: |
SS304 or SS316L or Duplex stainless or 904L |
Design Pressure: |
-1 -10 Bar (g) or ATM B9 |
Work Temperature: |
0-200 °C |
Volumes: |
100~30000L |
Construction : |
Vertical type or Horizontal type |
Jacket type : |
Dimple jacket, full jacket, or coil jacket |
Structure : |
Single layer vessel, vessel with jacket, vessel with jacket and insulation |
Heating or cooling function |
According to the heating or cooling requirement , the tank will have jacket for requried function |
Opitional Motor: |
ABB, Siemens, SEW or Chinese brand |
Surface Finish: |
Mirror Polish or Matt polish or Acid wash&pickling or 2B |
Standard components : |
Manhole,sight glass , cleaning ball |
Optional components : |
Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves |
Applications: |
Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial |
