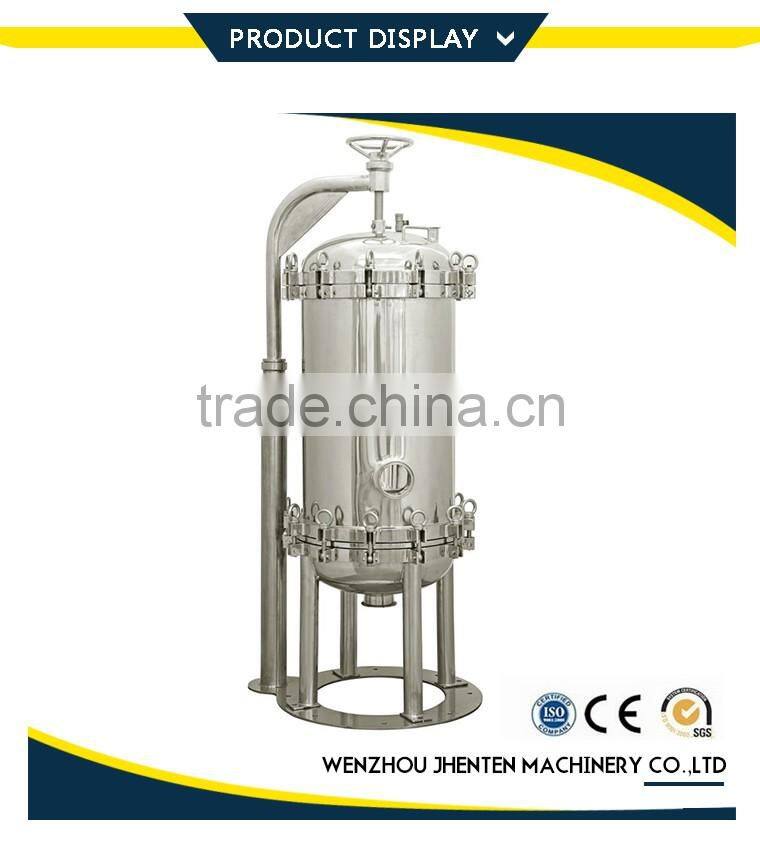

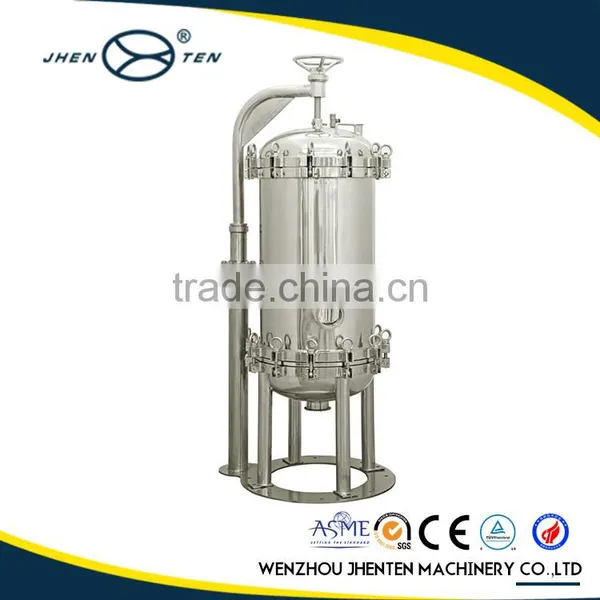

Sand polish drinking water metal precision liquid filter

Feature

• The ultra high level of polishing, the inner surface polished to 0.3μm Ra. the outer surface to reach 0.4μm,

 the absolute hygienic level polishing.

• Dealing with large flow, compact design saves space

• The design of side in bottom out ensures that the particles can be completely removed .At the same time,

tangent outlet makes sewage discharged thoroughly, and workers operate easily.

• For more than 15 cartridges filter housing, the swing arm and eyebolt or quick open are optional design to

 operate easily. Also it is a economical and practical design.

Application

• Pharmaceutical industry: all kinds of antibiotics and other liquid filtration.

• Food and beverage industry: wine ,mineral water, drinking water filtration.

• Oil industry: oil field water injection filtration

• Electronics industry: high purity water filtration

• Chemical industry: all kinds of organic solvent, acid, lye filtration.

Operating Conditions

Max operating  pressure:0.6MPa,1.0MPa

Max operating  temperture:150℃

Disinfect:Online or steam sterilization:121℃/30min

Surface Finish

Finish type:Mechanical/ Electrolytical polishing Sand blasting

Polishing precision:Inner surface Ra≤0.4μm ,  Outside surface Ra≤0.6μm.

Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery .
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
