Jhenten Bag Filter Housing  Series

Product Description

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Technical specification

Bag Filter Housing Style:Single Bag,Multi-Bag,Duplex , Movable Bag Filter Housing

1.Material:SS304,SS316L

2.Design vessel pressure :0.6-1.0Mpa

3.Operate temperature:-20-140°C

4.Filtering accuracy: 0.1-20um

5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag

6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter

7.Connection vessel:GB,ANSI,JIS,and other flange

8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"

9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical

   Polishing ,Ra≤0.5μm

10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,

    Electronic Industry and So On.

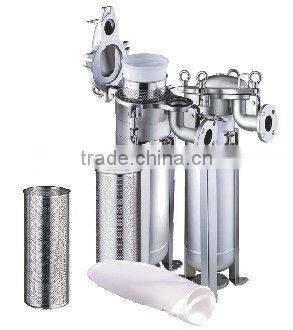

 1.Single Bag Filter Housing

a)Top Entry Bag Filter Housing

b)Side Entry Bag Filter Housing

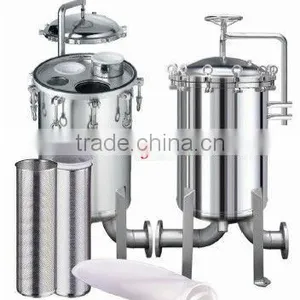

2. Multi Bag filter housing

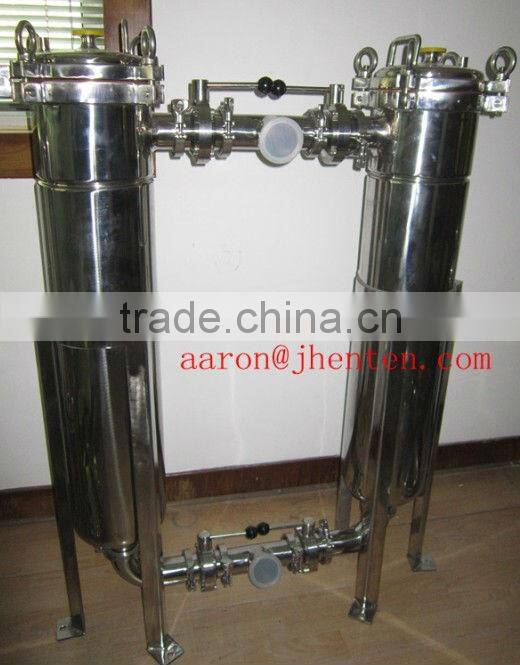

3.Duplex Bag Filter Housing

4. Movable Bag Filter Housing

Bag Filter Housing Main Technical Parameters
