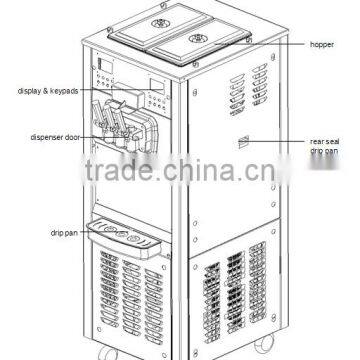

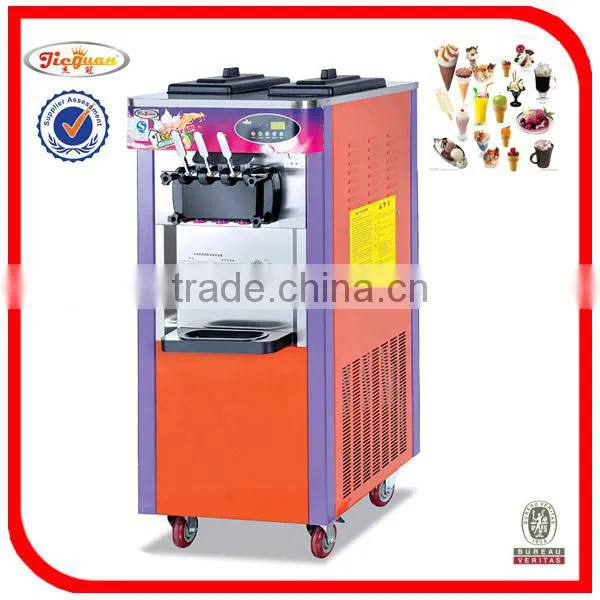

Commodity: KFC Freestanding Soft Ice Cream Machine
| Product Information | ||
| | Model | BQL-839 |
| Size | 670*540*1130mm | |
| Volts | 220V | |
| Hp | 1.7kw | |
| Capacity | 4L*2 | |
| Output | 24L/Hr | |
| N/W | 135kg | |
| Certificate | CE | |
| Installation | Freestanding | |
| Material | Stainless steel | |
| Warranty | 1 year | |
Product details:

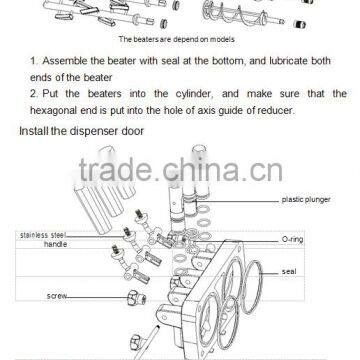

1. Put O-rings on the plastic plungers with lubricant(the middle plunger should be paired with O-O-ring).
2. Install the plungers into the holes of the dispenser.
3. Fix the stainless steel plunger with the stainless steel handle through the holes on dispenser door and screw tight.

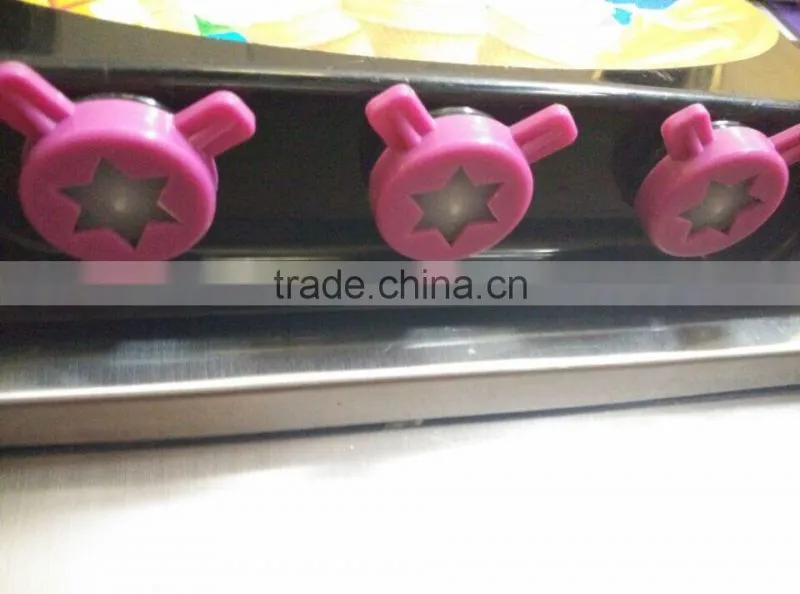

4. Fix the design cover on the bottom of the dispenser.
5. Fix the dispenser door assembly on the machine and fasten it with screws using the spanner. Please DO NOT lubricate the seal of the dispenser door
6. Fix the plastic handles onto the stainless ones

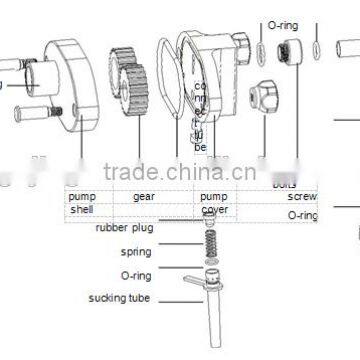

1. Put the initiative and driven gear into the air pump shell.
2. Put seal on the air pump cover, cover with the shell and screw with attaching bolts.
3. Install rubber plug, spring, O-ring and sucking tube on the bottom of the air pump sequently.
4. Install two O-rings on the back of the air pump and one O-ring at the front.
5. Install O-ring on the connect bolt, and assemble the bolt inside the hole in the front of the air pump.
6. Install O-ring on the tube, and connect the two connect bolts with the tube.
