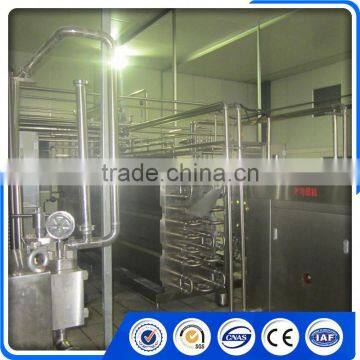

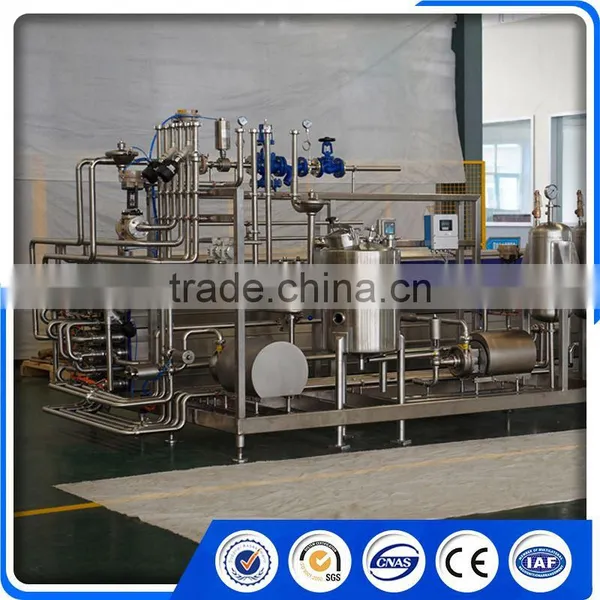

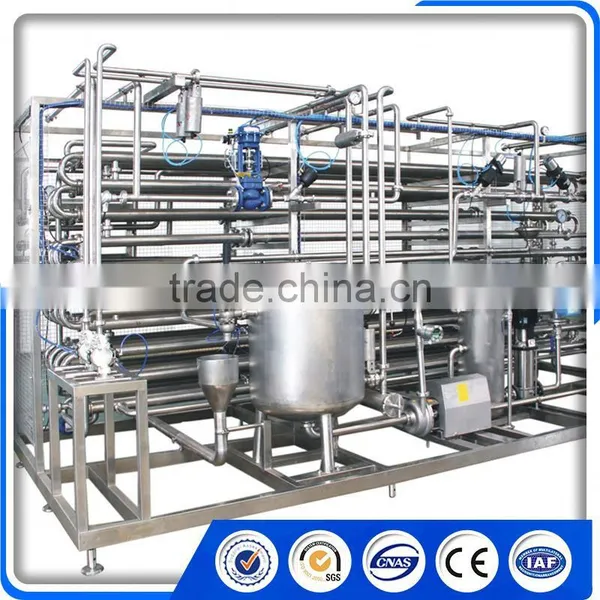

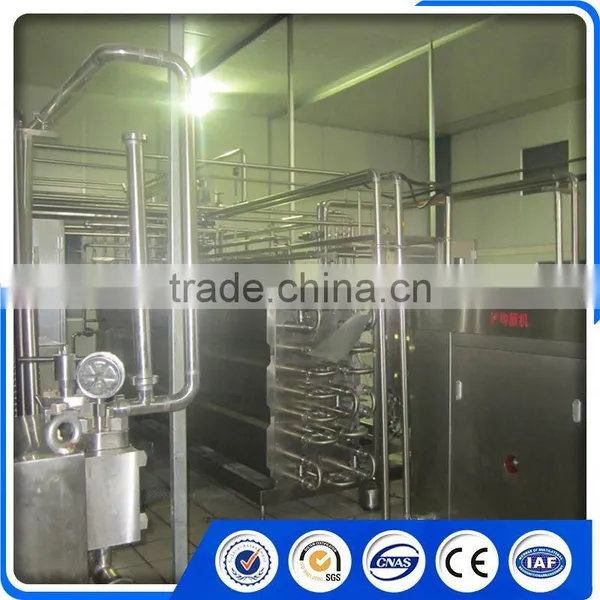

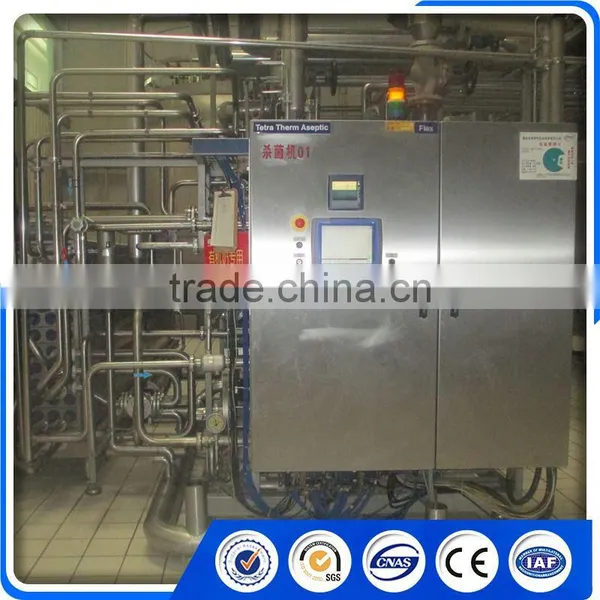

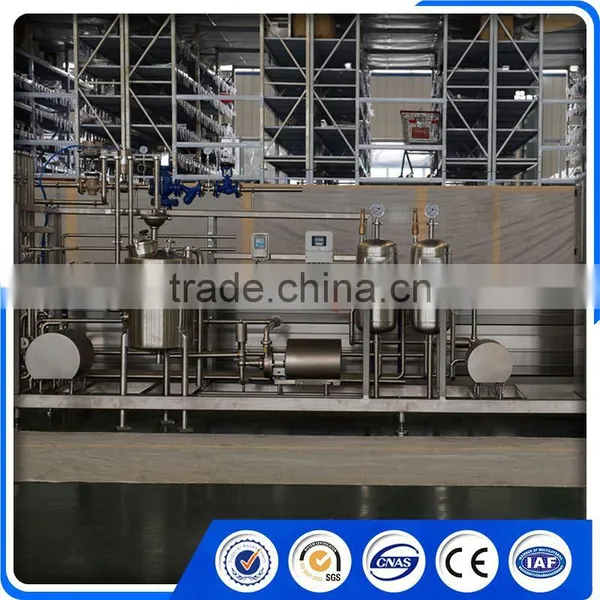

High Quality Tubular Sterilizer-pasteurizer-uht Sterilizer Uht Milk Sterilizer Machine
- 1 Set / Sets per Month
- Qingdao Port
- T/T D/P D/A
You May Like
-
Uht Sterilizer Sterilizing Equipment Uht Milk Sterilizer Machine
-
Uht Tubular Sterilizer Uht Milk Sterilizer Machine Tube Sterilizer
-
Uht Milk Bottle Sterilizer Tube Sterilizer
-
Small Milk Pasteurization Machine Uht Milk Sterilizer Machine
-
High Quality Juice Uht Milk Sterilizer Machine Tube Sterilizer
-
High Quality Tubular Uht Sterilizer Uht Milk Sterilizer Machine Tube Sterilizer
Product Details
Type | Boiling Sterilization Apparatus | Brand Name | GSPak, GSPak | |
Model Number | - | Place of Origin | Shandong, China |
Product Description
High Quality Tubular Sterilizer-pasteurizer-uht Sterilizer Uht Milk Sterilizer Machine
Product Description |
Features |
1. It is heated directly but it is cooled indirectly. The cooling water and sterilizing water are not mixed together,
avoiding the secondary pollution.
2. It does not need water sterilizing chemicals and the high temperature can contribute to the sterilization in a short time.
3. A small quantity of sterilizing water can circulate quickly to reach the expected sterilizing temperature.
4. Multiple-step temperature raise and down can keep the color and flavor of food production.
5. Low noise, energy saving, water saving and environment protection.
6. It can save space and labor. It is operated easily.
7. Precise pressure control system can ensure food package won’t change in cooling period, especially inflated packaged food
Product Specification |
Type& specification | Capacity (t/h) | Steam consumption(kg/h) | Cooling Capacity Kkcal/h | Power (kw) | Weight (kg) | Diameter | |||
5°C | 75°C | product | steam | medium | |||||
BH-UHT-1 | 1 | 100 | 40 | 13 | 6.5 | 1950 | 25 | DN25 | 25 |
BH-UHT-2 | 2 | 200 | 80 | 26 | 6.5 | 2160 | 38 | DN38 | 38 |
BH-UHT-3 | 3 | 300 | 120 | 39 | 6.5 | 2400 | 38 | DN38 | 38 |
BH-UHT-4 | 4 | 400 | 160 | 52 | 6.5 | 2500 | 38 | DN38 | 38 |
BH-UHT-5 | 5 | 500 | 200 | 65 | 9.5 | 2950 | 51 | DN38 | 51 |
BH-UHT-6 | 6 | 600 | 240 | 78 | 9.5 | 3300 | 51 | DN38 | 51 |
BH-UHT-8 | 8 | 800 | 320 | 104 | 11 | 3700 | 51 | DN51 | 63 |
Mechanical Details |
Main imported elements of the machine |
No. | Name | Supplier | Origin |
1 | PLC | Mitsubishi | Japan |
2 | Touching screen | PWS6A00T-P | Japan |
3 | Electricity switch | MOELLER | French |
4 | Control valve | BURKERT | Germany |
5 | Color meter sensor | SICK | Germany |
6 | dynamo | ABB | Sweden |
7 | Water pump | CALPEDA | Italy |
8 | Pneumatic control parts | FESTO,CAMOZZI | Germany |
9 | XMTG | OMRON | Japan |
Packaging&Shipping |
Packaging: Standard Export Carton for Automatic Carton Filling Machine
Delivery Details Within 45~60 days for Automatic Carton Filling Machine
Our Servvices |
Overall Plan
According to customer's willingness,design the best overall plan which not only
meets the technological requirements ,but also match with investment program.
Turn-key purchase reduces the procurement cost
Reduce the unit price of your procurement cost
Reduce the logistics cost
Reduce your human and communication cost
Avoid repeated investment cost
Turn-key purchase will be realized by BIHAI'S Supply Department.
Turnkey project
No worried about the crossover consturuction
Make sure the installation working more smoothly
Provide the unified after-sales service
Offer the whole operation guide to you
Professional turnkey project,Bihai engineering department do that for you.
Any problem,BIHAI will help you in the whole process to solve them
BIHAI's Training team will guide and enable your staffs to operate and carry out maintenance
BIHAI's After-sale Team will hepl you to solve all kinds of equipment failures.
BIHAI's quality control will help you to solve all kinds of quality problems
To solve all kinds of production problems,BIHAI's After-sale Department will do it for you.
