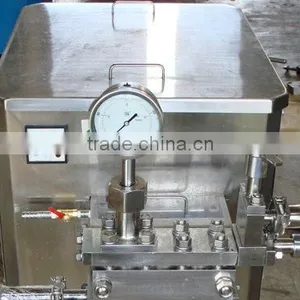

Milk Homogenizing Machine

Name: Milk Homogenizing Machine
Brand: wanyuan
SKU: 141368432
Availability: InStock

Wenzhou Longwan Wan Yuan Food Machinery Factory

US$ 2,000 - 6,000 MOQ: 1 Set

Key Specifications

Brand Name:

wanyuan

Model Number:

500L

Type:

Other, homogenizer

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Brand Name wanyuan

Model Number 500L

Type Other, homogenizer

After-sales Service Provided Engineers available to service machinery overseas

high pressure homogenizer machine

model	0.325	0.525	0.825	125	1.525	225	2.525	425	525	0.340	0.540	0.840	140	1.540	2.540	0. 0660	0.360	0.560	0.860	160	260	1100
rated pressure MPa	25	25	25	25	25	25	25	25	25	40	40	40	40	40	40	60	60	60	60	60	60	60
rated flow M³/h	0.3	0.5	0.8	1	1.5	2	2.5	4	5	0.3	0.5	0.8	1	1.5	2.5	0. 06	0.3	0.5	0.8	1	2	1
transmission medium	milk, bean milk, fruit juice.....
medium temperature °C	≤85
material inlet diameter mm	25	25	25	25	25	40	50	50	50	25	25	25	25	25	50	12	25	25	25	50	50	50
material outlet diameter mm	15	15	15	15	15	15	25	25	25	15	15	15	15	15	25	6	15	15	15	25	25	25
high pressure feeding and discharge pipe diameter mm	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG3/4″(20)	ZG3/4″(20)	ZG3/4″(20)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG1/2″(15)	ZG3/4″(20	/	ZG1/2″(15	ZG1/2″(15	ZG1/2″(15)	ZG3/4″(20)	ZG3/4″(20)	ZG3/4″(20)
motor power KW	2.2	4	5.5	7.5	11	15	22	37	45	5.5	7.5	11	15	22	37	2.2	7.5	11	15	22	45	45
overall dimensions L×W×H mm	920×500×950	1020Ⅱ×580×1000	1050×680×1110	1050×680×1110	1200×720×1110	1250×830×1270	1300×1060×1350	1400×1260×1600	1400×1260×1600	1050×680×1110	1050×700×1130	1050×720×1130	1150×820×1180	1300×1060×1350	1300×1160×1500	920×500×950	1050×680×1110	1050×720×1130	1100×820×1180	1300×1060×1350	1400×1260×1600	1400×1260×1600
weightKg	~300	~400	~500	~600	~700	~1000	~1200	~1400	~1450	~500	~600	~700	~1100	~1200	~1400	~300	~600	~700	~1000	~1200	~1450	~1450
