Help CenterSanitary Rotor Pump for Ketchup and Tomato Sauce
Related Products
Rotary Pump is specially designed to transfer high adhesive materials or the materials with particles smoothly,suitable for sanitary and sterile condictions.
sanitary rotor pump picture
Used widely in:
Dairy products: yoghurt, fresh milk, ice cream, cheese and etc.
Beverage: beer, malt liquor, yeast, carbonated drinks, fruit condensed liquids, fruit juice drinks.
Foodstuff: tomato jam, fruit mash, vegetable mash, budding, jam, jelly, sauces, fruit stuffing, sweetening, yeast mash, salad dressing, pastry, meat mash, minced meat, cooking oil and net oil.
Sweets: syrup, thin cream stuffing, chocolate.
Cosmetics: facial creams, bathing fluids,hair styling flues, hair-dying material, essence oil
Pharmacy: pill paste, soak cream, emulsification fluid, electuary.
Chemical: fat, dissolvent, resin
sanitary rotor pump specification
| Product Name: | Sanitary lobe rotor pump |
| Configuration: | console, lockable mobile plate, mechanical avariable gearbox |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) |
| Max. Flow: | customized |
| ure: | 12bar/ 174PSI |
| Max. working temperature: | 150 C / 302 F |
| Max. rev: | 1450 rmp |
| Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB, 50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
the treatment on material is quite gentle,and transfer speed is adjustable,so it can be used as a meterly pump.all parts contacting with media are made of SUS304 or SUS316L and international ISO standard quick joints are used on inlet and outlet,in accordance with GMP standred.

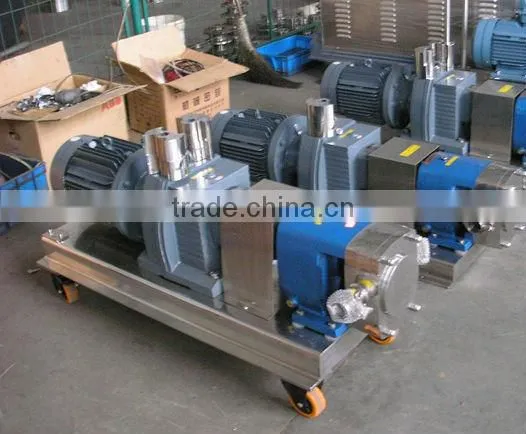

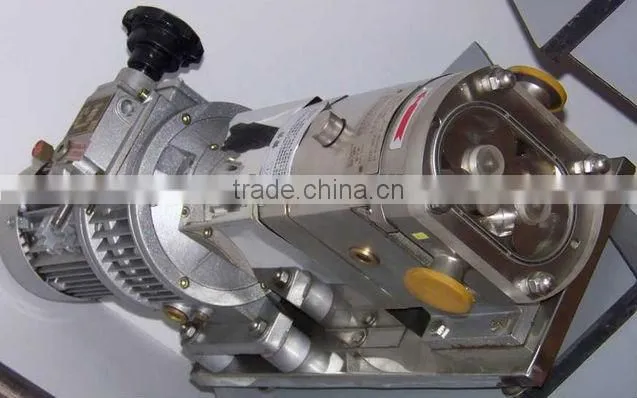

sanitary rotor pump for ketchup and tomato sauce
