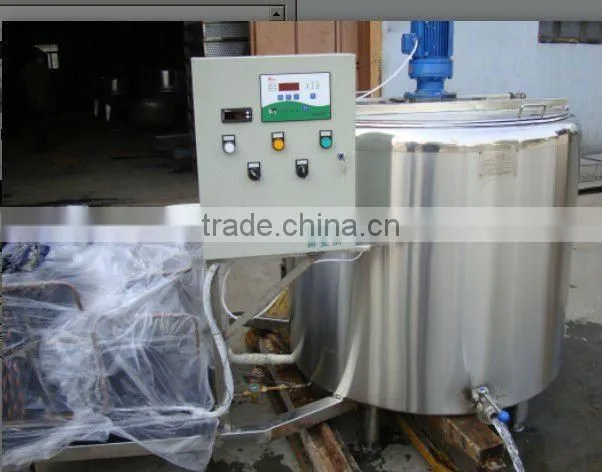

2000L horizontal Milk cooling tank milk chiller
- 1000 Set / Sets per Month
- Shanghai or Ningbo port
- T/T L/C D/P D/A Credit Card PayPal
- Vertical double jacketed stainless steel mixing agitator tank
- stainless steel vertical juice storage tank
- high quality milk cold storage tank
- Milk storage tank, raw milk storage tank, milk agitator tank
- raw milk collection tank
- Factory Genyond Best quality dairy farming machine milk cooler / milk cooling cold storage tanks /milk chiller
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | WANYUAN |
Model Number: | 100L--20000L | Processing Types: | Milk |
Product Description
- This machine is adopting internationally-advanced technology of the 1900s. It cools by circular and vertical wall. The full automatic control system makes whole process of preservation avaiable. The cooled raw milk can reachrapidly needed temperature of 4-5oC and keeps constant,which can prevent the generation of bacteria and make raw milk as agrade cream.
- The adopted imported compressor features high performance,energysaving,full seal and protection system that prevents damage due to overload.also fitted are high& low liquid level control system and automatic cyclespray and agitating device.
- 2.The temperature preservation lay adopts the craft of urethane blowup featuring excellent heat insulation it is an ideal store and cool equipment to milk collection sation,meadow and unit which specializes in farming milch cow.
Four Main Parts:
- Tank Body;
- Refrigeration Compressor;
- Automatic Blender;
- Microcomputer Box.
Main Technical Prameter:
Volume (L) | 300 | 500 | 1000 | 2000 | 25000 | 3000 | 4000 | 5000 | 10000 |
Average Cooling Capacity(kcal./h) | 4000 | 4400 | 6600 | 11000 | 14000 | 16200 | 22000 | 26400 | 44000 |
Refrigerant | F22 | ||||||||
Injecting Refrigerant Amount (kg) |
1.5 |
2 |
3 |
6 |
7 |
8 |
12 |
14 |
20 |
Mixer Speed (r/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
Total Power (KW) | 2.4 | 2.52 | 3.53 | 5.81 | 5.0 | 6.6 | 11 | 11.6 | 17.2 |
Electrical Source | 3-380V-50HZ |
