2000L Fresh Milk Cooling Tank

Name: 2000L Fresh Milk Cooling Tank
Brand: WANYUAN
SKU: 141368020
Availability: InStock

US$ 1,800 - 8,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

WANYUAN

Wenzhou Longwan Wan Yuan Food Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name WANYUAN

Model Number 100L--20000L

Processing Types Milk

Voltage Customise

Power(W) 2.2Kw

Weight 860kg

Dimension(L*W*H) 3450*1500*1500mm

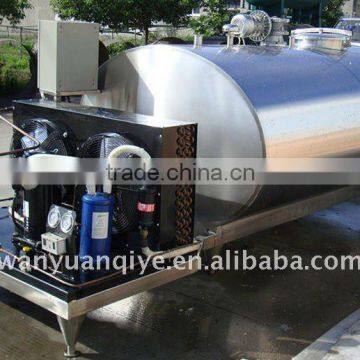

fresh Milk cooking tank

bulk Milk cooling tank / refrigeration tank / fresh milk cooling tank

fresh Milk cooking tank :

This machine is adopting internationally-advanced technology of the 1900s. It cools by circular and vertical wall. The full automatic control system makes whole process of preservation avaiable. The cooled raw milk can reachrapidly needed temperature of 4-5^oC and keeps constant,which can prevent the generation of bacteria and make raw milk as agrade cream.
The adopted imported compressor features high performance,energysaving,full seal and protection system that prevents damage due to overload.also fitted are high& low liquid level control system and automatic cyclespray and agitating device.
2.The temperature preservation lay adopts the craft of urethane blowup featuring excellent heat insulation it is an ideal store and cool equipment to milk collection sation,meadow and unit which specializes in farming milch cow.

fresh Milk cooking tank Main Parts:

fresh Milk cooking tank Main Technical Prameter:

Volume (L)	300	500	1000	2000	25000	3000	4000	5000	10000
Average Cooling Capacity(kcal./h)	4000	4400	6600	11000	14000	16200	22000	26400	44000
Refrigerant	F22
Injecting Refrigerant Amount (kg)	1.5	2	3	6	7	8	12	14	20
Mixer Speed (r/min)	35	35	35	35	35	35	35	35	35
Total Power (KW)	2.4	2.52	3.53	5.81	5.0	6.6	11	11.6	17.2
Electrical Source	3-380V-50HZ
