300L Vertical Milk Cooling Tank Fresh Milk Cooling Tank With Direct Expansion

300L Vertical Milk Cooling Tank Fresh Milk Cooling Tank With Direct Expansion thumbnail-1
300L Vertical Milk Cooling Tank Fresh Milk Cooling Tank With Direct Expansion photo-1
US$ 1,600 - 4,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WANYUAN
Contact Supplier Request Quote Chat Now
Wenzhou Longwan Wan Yuan Food Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name WANYUAN
Model Number 300L
Processing Types Milk
Voltage 220V/380V
Power(W) 5KW
Weight 300KG
Dimension(L*W*H) 1200*1200*1500mm

milk cooling tank with direct expansion

vertical milk chill and storage tank(milk cooling tank, milk storage tank, milk tank, milk vessel)



milk cooling tank Product Description

  1. this vertical milk cooling tank(also called milk chiller, milk storage tank, stainless steel tank) is mainly used in cooling to storage milk or other liquid;
  2. It absorbs international advanced technology, adopts importing compress machine, safety and protection system, micro computer monitor, advanced technique and equipment such as polyurethane bubbling, honeycomb board evaporator. It is three layers with jacket layer and Pu insulation layer , outer and inner mirror polish to easy cleaning,and the cooling unit is use famous brand;
  3. Small land area than horizontal type; bulk milk cooling tank / milk chiller
    Generally speaking,it is an ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry for keeping the milk raw milk in its best situation and prevents the bacteria.

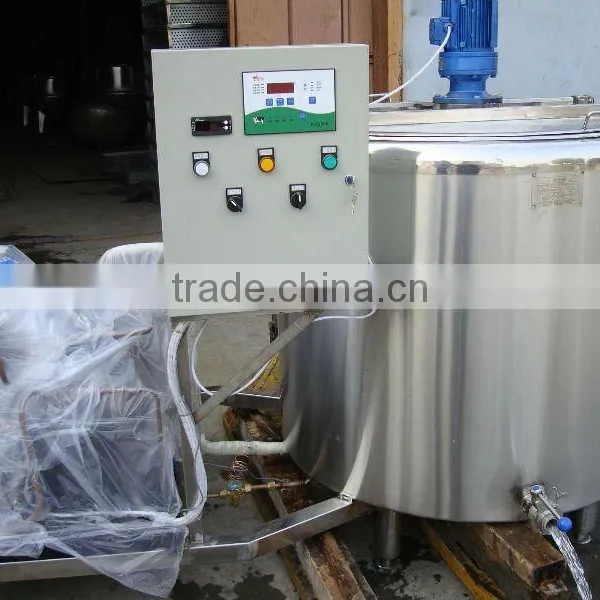

300L vertical milk cooling tank fresh milk cooling tank with direct expansion

milk cooling tank Main technical parameter:

Vessal Capacity(L)

 P.F(W)

 REV

 Matched power

 Size(L*w*H)

 Refrigerant

 Power supply

 500

 5322

 25r/m

 3KW

 900*900*1600

 R404A/R22

 380V/3/50Hz

 1000

 8842

 35r/m

 4.5KW

 2200*1350*1550

 R404A/R22

 380V/3/50Hz

 1500

 11244

 35r/m

 5KW

 2200*1200*1750

 R404A/R22

 380V/3/50Hz

 2000

 13221

 35r/m

 6KW

 3300*1500*1700

 R404A/R22

 380V/3/50Hz

 2500

 16221

 35r/m

 7KW

 3700*1450*1500

 R404A/R22

 380V/3/50Hz

 3000

 16221

 35r/m

 7KW

 3950*1500*1700

 R404A/R22

 380V/3/50Hz

 4000

 32442

 35r/m

 14KW

 3950*1900*1850

 R404A/R22

 380V/3/50Hz

 5000

 32442

 35r/m

 14KW

 4200*2100*2000

 R404A/R22

 380V/3/50Hz

 6000

 40000

 35r/m

 14K/W

 4200*2100*2200

 R404A/R22

 380V/3/50Hz

 8000

 41688

 35r/m

 19K/W

 5200*2200*2150

 R404A/R22

 380V/3/50Hz

 10000

 51360

 35r/m

 23K/W

 6000*2200*2150

 R404A/R22

 380V/3/50Hz

 12000

 51360

 35r/m

 23K/W

 6000*2200*2300

 R404A/R22

 380V/3/50Hz



Milk cooling and milk pasteurization



Closed milk cooling tanks with direct expansion

specifications
project MCT-3 MCT-1 MCT-2 MCT-3 MCT-5 MCT-6 MCT-8 MCT-10
capacity 3000L 1000L 2000L 3000L 5000L 6000L 8000L 10000L
dimensions (mm) 3580*1780*1680 2340*1480*1310 2620*1770*1520 3580*1780*1680 4390*1930*1705 4400*2030*1860 5220*2110*1920 5720*2060*2170
refrigerating machine compressor Maneurop or Copeland scroll compressor
model ZB15 ZB21 ZB38 ZB45 ZB45*2 ZB45*2 ZB58*2 ZB76*2
cooling capacity  6250W 8850W 14650W 17800W 35600W 35600W 47000W 61000W
power source Three phase four wire system 380V 50Hz
input power 1.45KW 2.08KW 3.2KW 3.89KW 3.89KW*2 3.89KW*2 4.96KW 6.85KW*2
refrigerant R22
evaporator form dimple plate evaporator direct expansion type
cooling area    2.5m^2   4.6m^2 8.2m^2 8.8m^2
condenser cooling technique air cooled engine
condensation area 24m^2 30m^2 60m^2 72m^2 144m^2 144m^2 192m^2 240m^2
stirrer motor power 0.25 0.55 0.75 0.75 1.1 1.1 1.1 1.5
rotational speed 35r/min
thermostat thermostat digital display microcomputer automatic controller
protection  overvoltage,undervoltage protection,leakage protection,compressor overload protection
insulation material pouring polyurethane,thickness 50mm to 80mm
performance  ambient temperature of 38°C,24-hour temperature≤2°C
CIP DN40 0 0 0 1 2 2 2 2
inlet DN50 1 1 1 1 1 1 1 1
discharge port   DN40 DN40 DN40







With direct expansion the milk is cooled in direct contact with the evaporator. The economic construction in the horizontal execution with a laser welded, efficient exchanger, ensures a fast and problem-free cooling and a surface-saving installation. Thanks to the free evaporation and a good agitation of the milk there is an optimal heat exchange, a high cooling performance is guaranteed and freezing is prevented, even with small amounts of milk.
