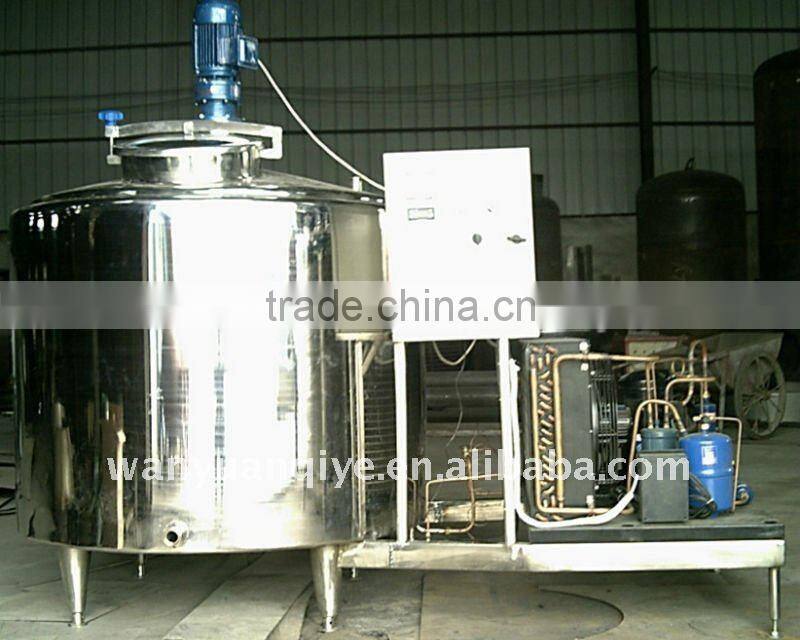

2000L Milk cooling tank with automatic CIP cleaning system
- 3000 Set / Sets per Month
- Shanghai or Ningbo port
- T/T L/C D/P D/A Credit Card PayPal
- Vertical double jacketed stainless steel mixing agitator tank
- stainless steel vertical juice storage tank
- high quality milk cold storage tank
- Milk storage tank, raw milk storage tank, milk agitator tank
- raw milk collection tank
- Factory Genyond Best quality dairy farming machine milk cooler / milk cooling cold storage tanks /milk chiller
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | WANYUAN |
Model Number: | 100--10000L | Processing Types: | Milk |
Product Description

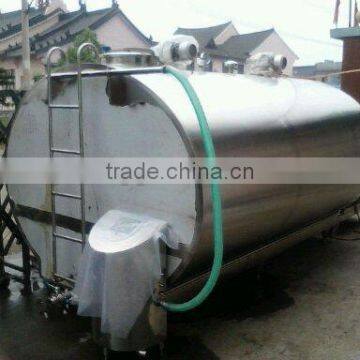

Horizontal Milk Chiller milk cooling tank
vertical & Horizontal milk chill and storage tank(milk cooling tank, milk storage tank, milk tank, milk vessel)
Product Description
this vertical and horizontal milk cooling tank(also called milk chiller, milk storage tank, stainless steel tank) is mainly used in cooling to storage milk or other liquid.
It absorbs international advanced technology, adopts importing compress machine, safety and protection system, micro computer monitor, advanced technique and equipment such as polyurethane bubbling, honeycomb board evaporator. It is three layers with jacket layer and Pu insulation layer , outer and inner mirror polish to easy cleaning,and the cooling unit is use famous brand.
Small land area than horizontal type
Generally speaking,it is an ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry for keeping the milk raw milk in its best situation and prevents the bacteria.
Main technical parameter:
Volume (L) | 300 | 500 | 1000 | 2000 | 25000 | 3000 | 4000 | 5000 | 10000 |
Average Cooling Capacity(kcal./h) | 4000 | 4400 | 6600 | 11000 | 14000 | 16200 | 22000 | 26400 | 44000 |
Refrigerant | F22 | ||||||||
Injecting Refrigerant Amount (kg) |
1.5 |
2 |
3 |
6 |
7 |
8 |
12 |
14 |
20 |
Mixer Speed (r/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
Total Power (KW) | 2.4 | 2.52 | 3.53 | 5.81 | 5.0 | 6.6 | 11 | 11.6 | 17.2 |
Electrical Source | 3-380V-50HZ |
