200L electric heating tilting jacketed kettle
What is electric heating jacketed kettle?
An electric-heating-jacketed kettle is similar to a double boiler and cooks large quantities of food by using electric heat. It is designed with both an inner and outer steel wall; this two wall make up jacket, when put Conduction oil in to this jacket, and turn on the switch of electric heating tube of this kettle, the heating transfer oil / conduction oil will cooks the contents inside. These devices are often used to cook foods like stock, gravy, sauce, or soup, and may be powered by steam or gas. They come in various sizes, for installation on the floor, countertop, or wall. Electric-jacketed kettles are often used in restaurants and industrial kitchens, school canteens where very large amounts of food are prepared daily.
Advantage of the electric heating jacketed kettle
All the different styles and sizes of electric-jacketed kettle use electric to cook the contents inside. Most are made from stainless steel, and usually, the oil jacket is permanently filled with heating transfer oil. Since heating oil encapsulates most of the kettle, electric heating jacketed kettle may cook more evenlythan a traditional stock pot because it offers a more uniform cooking surface. It also tends to warm contents more quickly than a traditional pan, heated primarily from the bottom.
Electricity, gas, or both may supply power to the kettle. A gas fired jacketed kettle requires a gas hook up source to operate and may also require electricity if it has automatic ignition. Gas kettles also require a kitchen ventilation system for safety.
Type of electric heating jacketed kettle
An electric-jacketed kettle can be tilting or stationary. A kettle that is meant for floor use is usually stationary and may have legs that can be adjusted to different heights so that cooks can reach the pot. There are also smaller sized kettles, wall-mounted or for countertop use, that can be manually tilted to make it easier and safer to remove the contents. Most kettles also have a draw off valve.
Usage of the electric hearing jacketed kettle
Often, electric-jacketed kettle is used for industrial cooking purposes. They are found in hotels and schools and on military ships and bases. This kind of kettle can cook large amounts of stew, pasta, or chili and can also be used to braise meat, cook dessert, or reheat various foods. Steam-jacketed kettles tend to be popular for institutional use because they require less stirring, can simmer longer-cooking recipes, and are less apt to burn food.
Electric heating jacketed kettle specification
Type |
capacity(L) diameter*depth(cm) |
Form |
working pressure(Mpa) |
Mixing speed(r/min) |
Maximum inclination |
Inlet and outlet pipe diameter(inch) |
Power (KW) |
|
DG50-I DG50-II |
50 52X40 |
tilting agitation |
0.3 |
36 |
90oC |
1/2’’ |
0.5 |
|
DG100-I DG100-II DDG1100-III |
100 66.4X48.2 |
tilting agitation vertical |
0.3 |
36 |
90oC |
3/4’’ |
0.5 |
|
DG200-I DG200-II DG200-III |
200 85X57.5 |
tilting agitation vertical |
0.3 |
36 |
90oC |
3/4’’ |
0.5 |
|
DG300-I DG300-II DG300-III |
300 100X65 |
tilting agitation vertical |
|
36 |
90oC |
3/4’’ |
0.75 |
|
DG400-I DG400-II DG400-III |
400 100X75 |
tilting agitation vertical |
0.3 |
36 |
90oC |
3/4’’ |
0.75 |
|
DG500-I DG500-II DG500-III |
500 110X85 |
tilting agitation vertical |
0.3 |
36 |
90oC |
3/4’’ |
1.1 |
|
DG600-I DG600-II DG600-III |
600 120X95 |
tilting agitation vertical |
0.3 |
36 |
90oC |
3/4’’ |
1.1 |

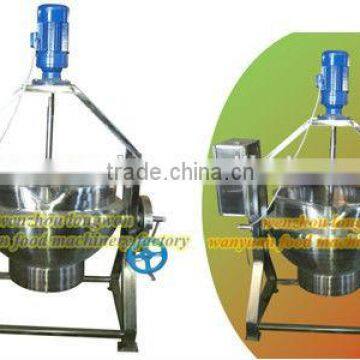

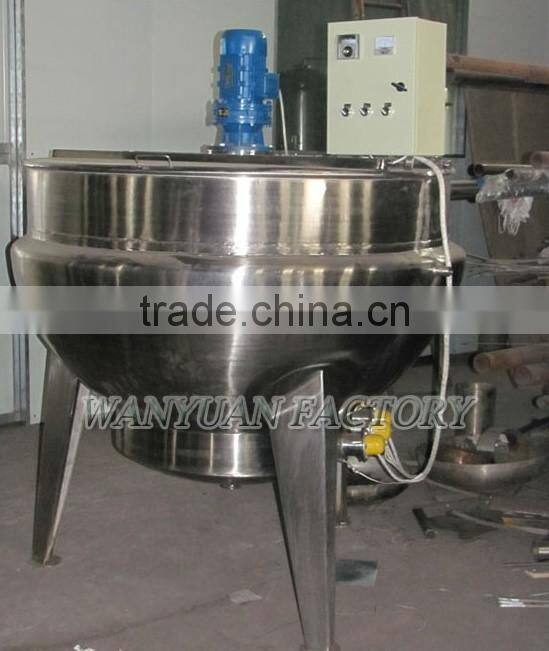

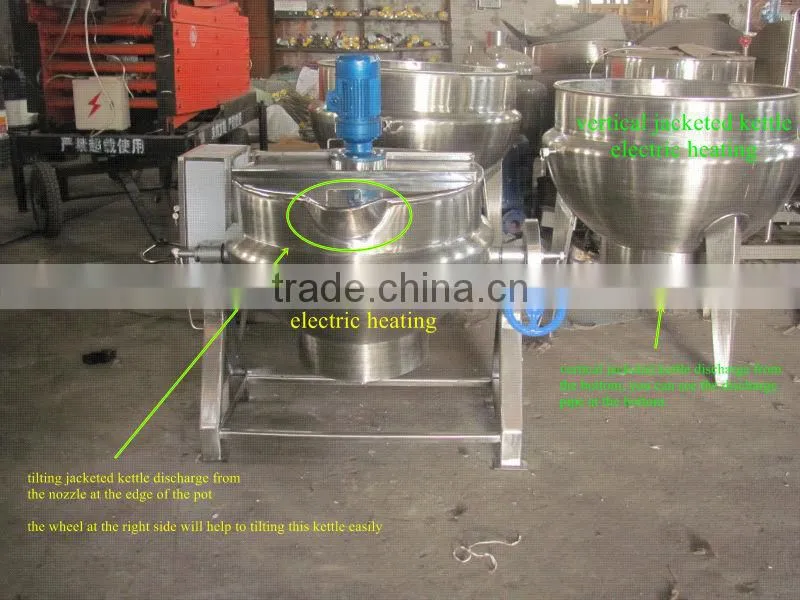

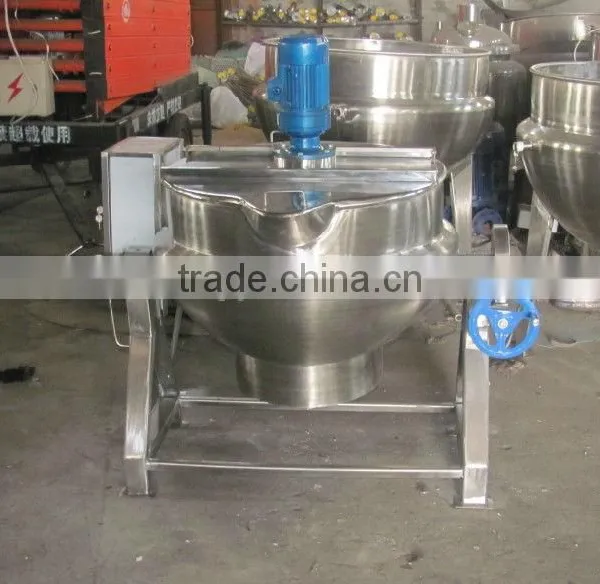

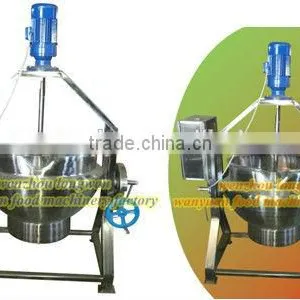

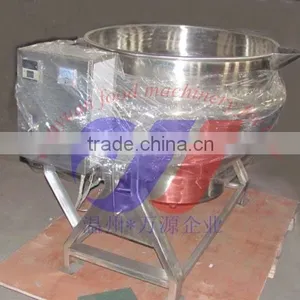

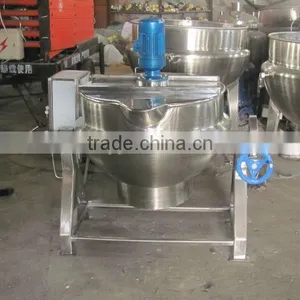

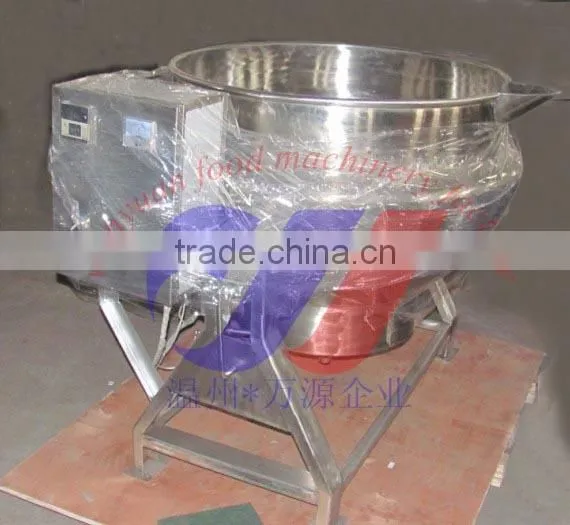

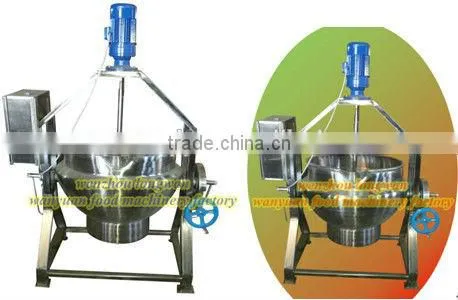

Picture of the tilting jacketed jacketed kettle
200L electric heating tilting jacketed kettle
