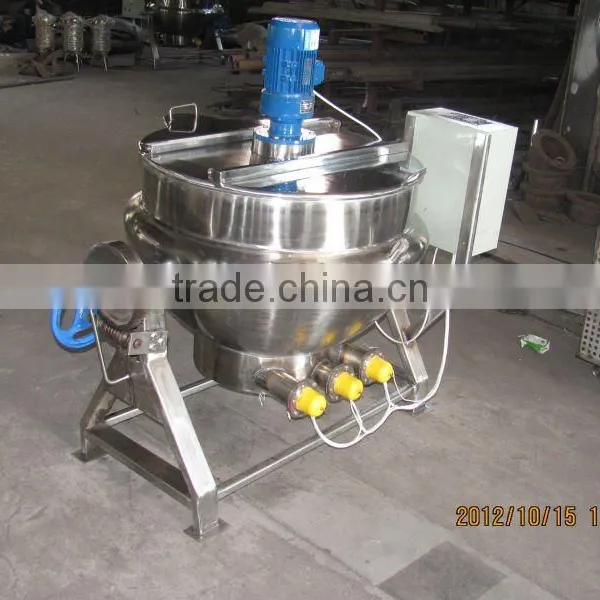

tilting jacketed kettle 200L with scraper / mixer agitator
we offer different kind of jacketed kettle
1. steam heating cooking kettle
2. gas heating jacketed cooker
3. electric heating cooking pot
here are the the specifications of the kettle wenzhou wanyuan offers:
tilting jacketed kettle 200L with scraper
MODEL | INTERNAL DIAMETER | BLENDING POWER | ELECTRICAL SOURCE | BRAND | |||
50L | 600mm | 0.55kw | 380V,50Hz | WANYUAN | |||
100L | 700mm | 0.75kw | 380V,50Hz | WANYUAN | |||
200L | 800mm | 0.75kw | 380V,50Hz | WANYUAN | |||
300L | 900mm | 0.75kw | 380V,50Hz | WANYUAN | |||
400L | 1000mm | 1.1kw | 380V,50Hz | WANYUAN | |||
500L | 1100mm | 1.1kw | 380V,50Hz | WANYUAN | |||
600L | 1200mm | 1.1kw | 380V,50Hz | WANYUAN | |||
700L | 1250mm | 1.1kw | 380v, 50Hz | WANYUAN | |||
800L | 1300mm | 1.1kw | 380v, 50Hz | WANYUAN | |||
Jacketed kettle catalogue
Jacketed kettles are used to cook or concentrate products. Heat enters a jacket that surrounds the bowl-shaped processing chamber, and being transferred through the walls of the jacket. It is also called jacketed pan, or jacketed pot, also, you can call it as a cooking pan, or cooking kettle. "Cooking" kettles are found in many industries, including meat packing, rendering, paper making, sugar processing, and food preparation and processing.
Three types of kettles are in common use.
| |
| |
| |
| |
CHARACTERISTIC
- Bothe the above listed jacketed kettles can be tilting type or vertical type
- Agitator can be customized, with an agitator or not is up to you
- If needed, we can add scrapers to the agitator to avoid your material get burned
- All the kettles equipped with digital temperature system
- Capacity can from 50Liter to 1000Liter
- Material can be SS304 or SS316 as needed.
Jacketed kettle sketch for reference
Steam heating jacketed kettle sketch
Electric heating jacketed kettle sketch
Gas heating jacketed kettle sketch
Meaning of symbol
No. | Symbol | Meaning | Connection type |
1 | A-1 / A-2 | Condensed water interface | ² Thread ² Clamp ² Union ² Hose coupler ² 1/2”, 3/4”, 1”, 1 1/2”….. |
2 | B-1 / B-2 | Steam Interface | |
3 | C-1 / C-2 / C-3 | Exhaust port | |
4 | D | Gas / LGP inlet | |
5 | E | Gas burner | |
6 | F | Material discharge |
In order to offer you a reasonable price, please let us know your detail request on the kettles as below:
Steam heating with agitator
We need (quantity) Electric heating tilting jacketed kettle
Gas heatingvertical without agitator
Other request:
1.
2.
3.
For example:
Steam heating √ tilting with agitator √
We need 6 (quantity) Electric heating jacketed kettle
Gas heatingvertical √ without agitator
This mean: you need 6pcs steam heating tilting jacketed kettle with agitator
Other request:
Kettle material should be SS304, no need scrapers because the cooking materials are not sticky.
small capacity electric heating jacketed kettle with agitator
