oil jacketed Kettle / natural gas LGP heating jacketed pot
we can produce the capacity FROM 100L TO 1000L.
1. The mixer motor speed 8 RPM ,the motor with some ball joint that move away for cleaning. As the blades.
2.Inner layer 4mm (stainless steel (304) 4mm)
3.Insulation layer 2mm(stainless steel (304) 2mm)
4.the base of kettle is 5mm(stainless steel (304) 5mm)
5.interlayer working pressure:0.3mp
a 200L jacketed cooking kettle specification
Model |
DG-200 |
||
kettle |
diameter |
Φ800mm |
|
Deepth |
550mm |
||
Capacity (L) |
200 |
||
Connection pipes |
steam |
3/4" |
|
Cool water |
3/4" |
||
Motor power(kw) |
1.5 |
||
Electric-heating power |
18KW/H |
||
Boiling time |
~13 mis |
||
heat transfer area |
1.12 m2 |
||
Gas consumption |
7CBM/H |
||
Design temperature |
180°C |
||
MAX working temperature |
151°C |
||
Design pressure |
0.095Mpa |
||
MAX pressure |
0.095 |
||
size |
L(mm) |
1100 |
|
W(mm) |
850 |
||
H(mm) |
1450 |
||
Price |
Gas heating |
2385usd |
|
Electric heating |
1950usd |
||

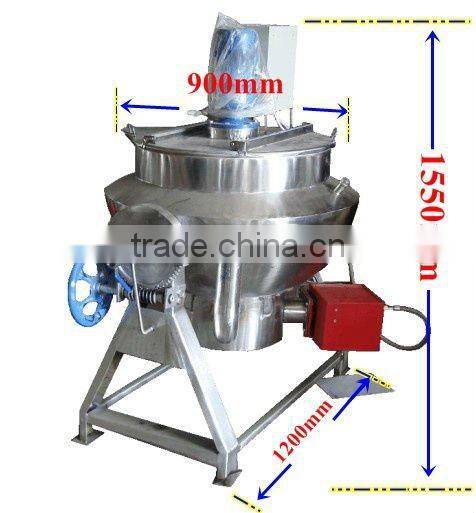

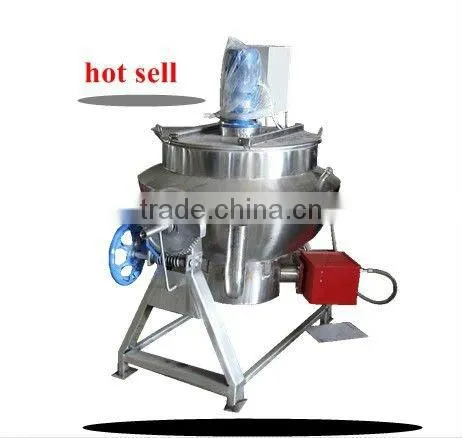

oil jacketed Kettle / natural gas LGP heating jacketed pot picture
6.evaporative power:30kg/h
7.heating area :0.4m2,The max temperature is:270
8.Consumption of energy :33kg/h
9. Dimension: 720*600*830mm,weight:170kg.
10. Heating ways: Tilting&Agitation Jacketed Kettle(cooker, kettle.weld tank)
the heating medium is heat transfer oil.
(burner is the highly-efficient &energy saving) we will finished installation with the kettle. Then ship to you.
oil jacketed Kettle / natural gas LGP heating jacketed pot
