Cheese Vat Electric-operated Oil Jacket Cheese Vat
US$ 1 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
wanyuan, wanyuan
Model Number:
50-1000L
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Jacket Pot Cooking PotUS$ 1 - 8,000MOQ: 1 Set -
Gas Fired Jacketed Kettle 400LUS$ 1 - 20,000MOQ: 1 Set
-
300L Tilting Cooking Pan Stainless Steel Cooking PanUS$ 1,000 - 8,000MOQ: 1 Set
-
Electric Heating Tilting Jacketed Kettle With Mixer ScraperUS$ 1,300 - 2,600MOQ: 1 Set
-
500 Liter Steam Jacketed Cooking KettleUS$ 1,000 - 5,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
wanyuan, wanyuan
Model Number
50-1000L
oil jacketed cheese vat electric-operated oil jacket cheese vat
oil jacketed cheese pan cooking vat tiltable cooking vat 300L ~ 500L cooking capacity cooking pot made of SS304
cooking vat tilting electric jacketed cheese vat oil jacket cheese vat
CHARACTERISTICS:
tilting electric jacketed cooking kettle oil jacket vat mainly used in cheese production
1. oil-jacket heating: it is less expensive and less complicated. But it is also superior because the oil holds its temperature for a long time, which is necessary for cheese production.
2. electric-heated oil-jacket vats in the 100-Lt and 300-Lt size are hot sell cheese vats
3. useful and simpler variation: oil-jacketed vats that use external flame to heat.
4. use LPG burners under cheese vats and the oil jacket provides a useful heat-spreading effect.
5. cheese vat can be designed into GAS HEATIMNG CHEESE VAT or ELECTRIC HEATING CHEESE VAT
6. customized cheese vat capacity.

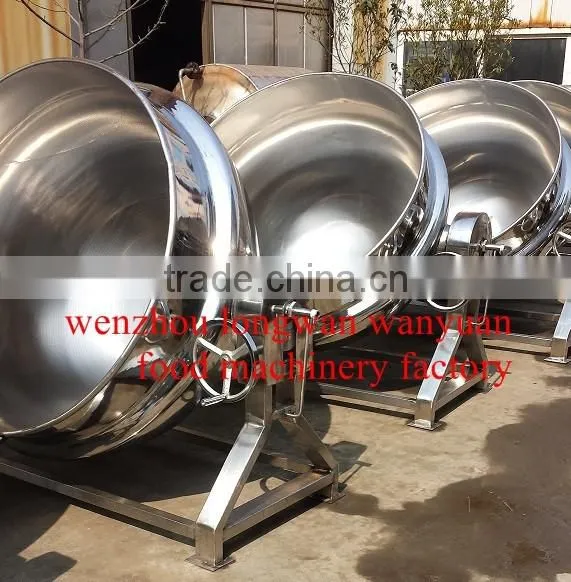

here is electric heating cheese vat picture
tilting electric heating cheese vat
LGP heated oil-jacket vat 100L & 300L specification
Item |
RG-300 |
RG-100 |
|
Diameter |
Φ900 |
Φ700 |
|
Depth |
650 |
500 |
|
Total capacity (L) |
300 |
100 |
|
Heating oil pipe |
1" |
1" |
|
Overflow pipe |
1" |
1" |
|
Boiling time |
20 mins |
12 mins |
|
Heating area |
1.43 |
0.58 |
|
Conduction Oil needed |
65kg |
30kg |
|
Design temperature |
181 ℃ |
181℃ |
|
MAX working temperature |
151 ℃ |
151 ℃ |
|
Design pressure |
0.095 MPa |
0.095 MPa |
|
Max operating pressure |
0.09 MPa |
0.09 MPa |
|
Size |
Length |
1200 |
1300 |
Width |
950 |
1050 |
|
Height |
1150 |
1250 |
|
C&F price for cheese vat |
/ |
||
Accessories |
Gas burner 1 piece Heating oil inlet pipe 1 piece Oil overflow pipe 1 piece Oil overflow pipe cover 1piece Oil discharge pipe 1 piece Oil discharge valve 1 piece Thermometer 1 piece Control box 1 piece Tilting device 1 set |
||
