Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle

Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle photo-1
Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle photo-2
Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle photo-3
Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle photo-4
Tilting Cooking Kettle Nature Gas Heating Jacketed Kettle photo-5
US$ 1 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
wanyuan, wanyuan
Model Number:
50-500L
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name wanyuan, wanyuan
Model Number 50-500L
Type Cooking Equipment
After-sales Service Provided Engineers available to service machinery overseas

tilting gas heating jacketed kettle with surface scraper agitator

we can produce gas cooking jacketed kettle capacity FROM 50L TO 500L



1. The mixer motor speed 36 RPM ,the motor with some ball joint that move away for cleaning. As the blades.

2.Inner layer 3mm (stainless steel (304) 3mm)
3.Insulation layer 2mm(stainless steel (304) 2mm)
4.the base of kettle is 3mm(stainless steel (304) 3mm)

5.interlayer working pressure:0.3mp
6.The max temperature is:270
7. Heating ways: Tilting&Agitation Jacketed Kettle(cooker, kettle, boiler) Gas heating

the heating medium is heat transfer oil.
(burner is the highly-efficient &energy saving) we will finished installation with the kettle. Then ship to you.

 tilting cooking kettle nature gas heating jacketed kettle

Tilting Jacketed Kettle (cooker, kettle, boiler) gas cooking kettle specification

Item

GTJ-300

GTJ-400

Diameter

Φ900

Φ1000

Depth

600

650

Total capacity (L)

300

400

Heating oil pipe

1"

1"

Overflow pipe

1"

1"

Boiling time

20 mins

23 mins

Heating area

1.42

1.75

Conduction Oil

65

75

Design temperature

181

181

MAX working temperature

151

151

Design pressure

0.095 MPa

0.095 MPa

Max operating pressure

0.09 MPa

0.09 MPa

Size

Length

1200

1300



Width

950

1050



Height

1150

1250



 hot sell gas heating jacketed kettle gas cooking kettle picture as below

tilting cooking kettle nature gas heating jacketed kettle

as a cooking kettle jacketed kettle manufacture, we can produce gas cooking kettle with different type of gas burner.

here below is another type of our hot sell gas heating jacketed kettle.

tilting cooking kettle nature gas heating jacketed kettle

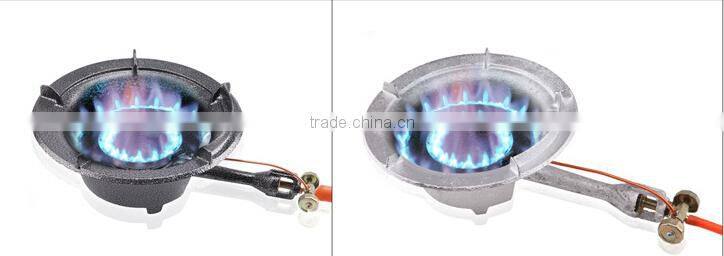

this kind of jacketed kettle use white or black gas burner as per the following picture shown.

tilting cooking kettle nature gas heating jacketed kettle







for more infrmation of gas heating jacketed kettle, please get in touch with us directly.

tilting cooking kettle nature gas heating jacketed kettle
