Efficient Mushroom Type Extracting Tank
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai or Ningbo port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WANYUAN | Model Number | ZTQA series | |
| Type | Other, extractor | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

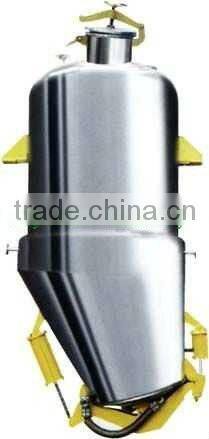

Details about cone type extracting tank:
Usage:
- Cone type extracting tank is used widely in leaching extractiong in pharmaceutical and chemical industries,as well as in food processing industry;
- It is a kind of mulitiple-use equipment,designed for boiling and extraction working procedure.In this procedure the equipment can extract,recover alcohol,separate naphtha.

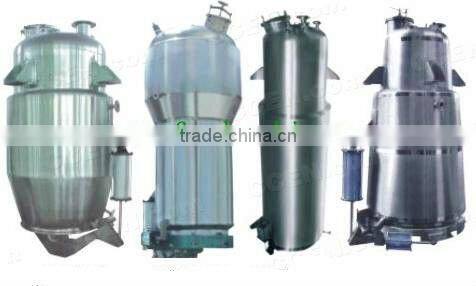

- Four types----mushroom-type extractor,oblique-cone-type extractor,straight-type extrator,straight-cone-type extractor.
Merits:
- Made of sanitary stainless steel,non-corrosive,anti-acid,anti-alka;
- With CIP cleaning system,conforming to GMP standard;
- High efficiency,convenient to operate,easy to install,long useful life,energy-saving,sanitary standard.
Main technical parameters:
| Model | ZTQA-1 | ZTQA-2 | ZTQA-3 | ZTQA-6 | ZTQA-8 | ZTQA-10 |
| Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Pressure in tank (MPa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Interlayer pressure (MPa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Charging hole diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heating area (m²) | 3 | 4.7 | 6.8 | 10 | 12 | 15 |
| Condensation area (m²) | 4 | 5.5 | 8 | 10 | 15 | 18 |
| Cooling area (m²) | 1 | 1 | 1 | 2.2 | 2.2 | 2.2 |
| Filtration area (m²) | 0.25 | 0.25 | 0.25 | 0.30 | 0.30 | 0.36 |
| Run-off feeder diameter (mm) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Steam consumption (kg/h) | 285 | 346 | 570 | 718 | 903 | 1140 |
| Water consumption (T/h) | 2.1 | 2.5 | 4.2 | 4.5 | 6.7 | 8.3 |
| Weight (kg) | 1800 | 2050 | 2400 | 3025 | 4030 | 6500 |
| Hot steam pipe (mm) | DN-50 | DN-50 | DN-60 | DN-60 | DN-80 | DN-80 |
| Second steam pipe (mm) | DN-80 | DN-80 | DN-100 | DN-100 | DN-100 | DN-100 |
| Motor power (kw) | 2 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| Agitator rate (ppm/min) | 21 | 21 | 32 | 32 | 32 | 32 |
